Connector End View (C1838) - KNOCK SENSOR BANK 1, SENSOR 1 (KS11)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1838	KNOCK SENSOR BANK 1, SENSOR 1 (KS11)	14B485			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
BU5T-14421-BA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	RE323 (WH-BN)	18	CTRL MOD. - POWERTRAIN # KNOCK SENSOR 1ST BANK 1ST OR UNIQUE (KS1N) [KSL1-] -	BU5T-14421-BA
2	VE801 (VT-OG)	18	SENSOR - KNOCK 1ST BANK 1ST OR UNIQUE (KS1P) [KSL1+]	BU5T-14421-BA

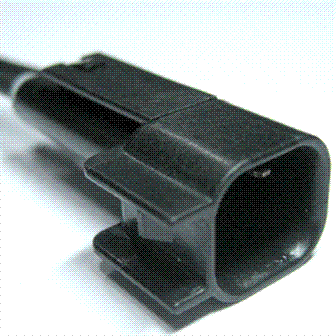

Available Pigtail Kits

Pigtail Kit Part Number WPT-1193

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-DCAB

Gauge:

16

Pin material:

Tin (greased)

Cavities:

2

Vehicle Uses:

• Element - Heated Seat
• Lamp - CHMSL (Center High Mount Stop Lamp)
• Lamp - Fog/Driving
• Lamp - Side Marker (Rear Fender)
• Mirror - Sideview
• Sensor - Crash (Engine Compartment)
• Speaker - Tweeter - LH - Front
• Speaker - Tweeter - RH - Front
