Home >> Ford >> 2021 >> Explorer Timberline >> Repair and Diagnosis (Single Page) >> Quick Lookups >> Wiring Diagrams >> OEM Component Harness Location Charts By Components >> Component Location Charts By Components >> Variable Camshaft Timing Bank 2 Solenoid 2 (VCT22) (3.0L)

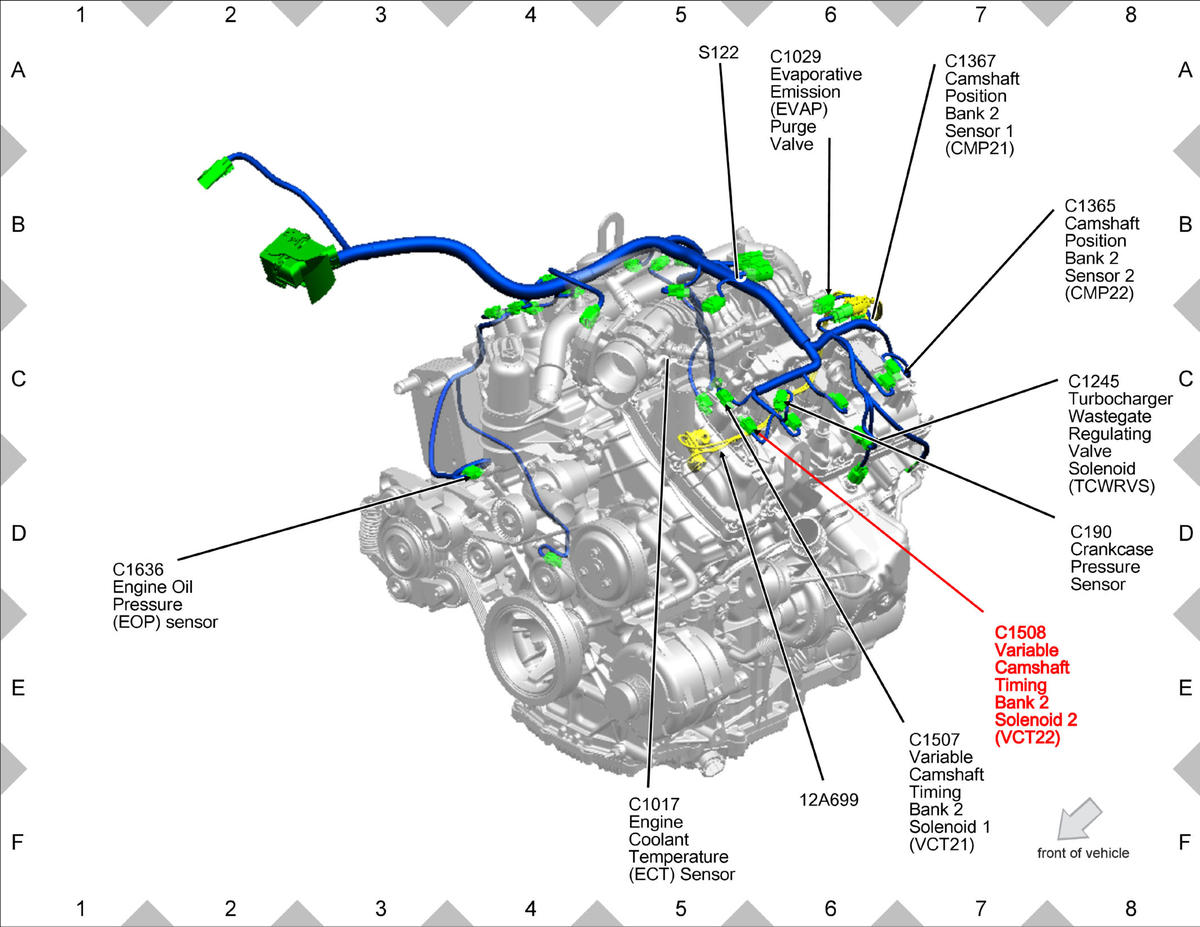

Variable Camshaft Timing Bank 2 Solenoid 2 (VCT22) (3.0L)

GFDWR92334

Courtesy of FORD MOTOR COMPANY
