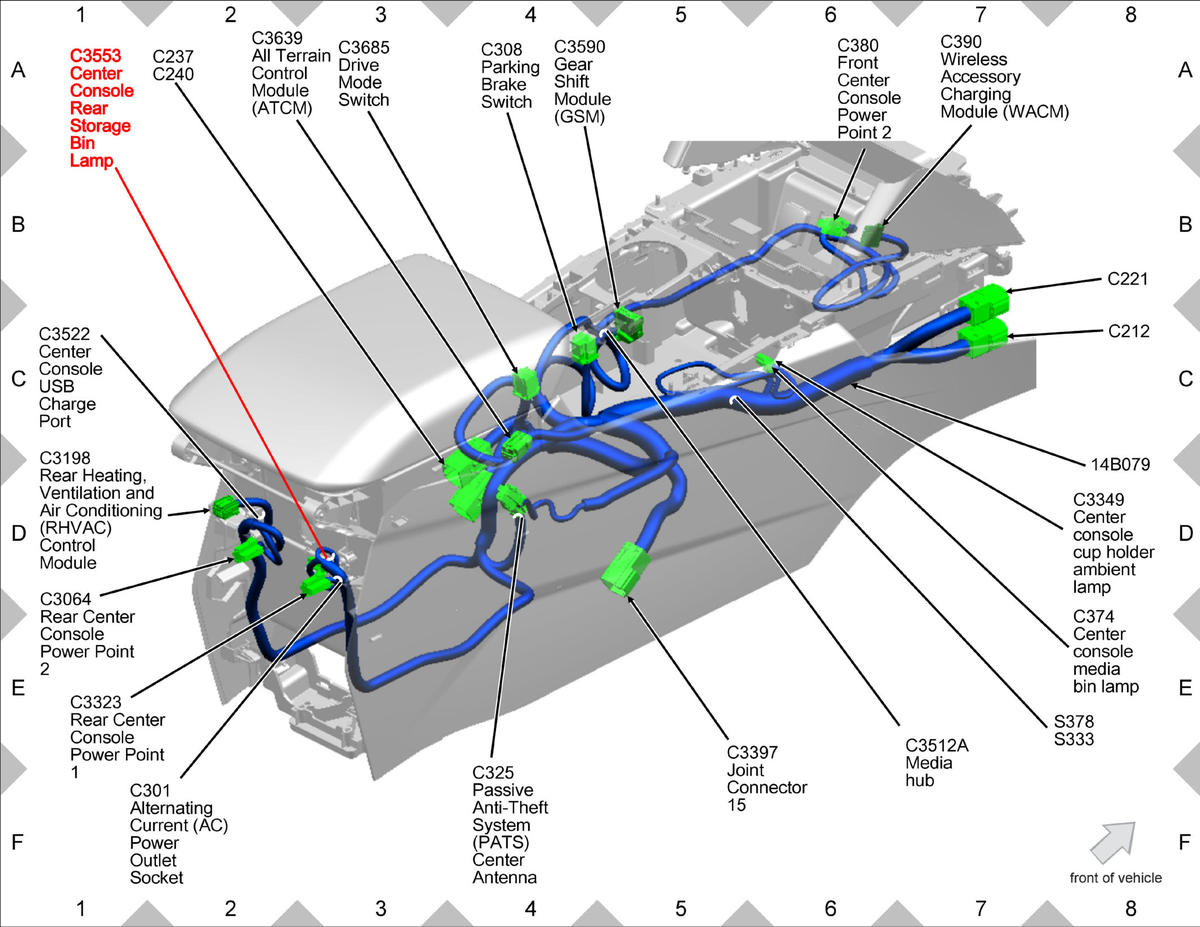

Center Console Rear Storage Bin Lamp Rear of center console

GFDWR91879

Courtesy of FORD MOTOR COMPANY
