Wastegate Control Valve Solenoid: Installation

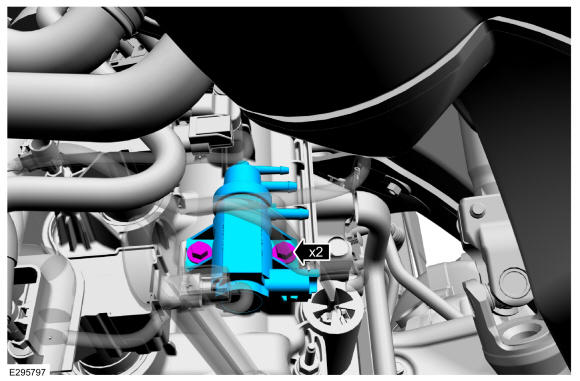

  1. Install the wastegate control valve solenoid, then install and tighten the wastegate control valve solenoid retainers.

    Torque: 62 lb.in (7 Nm)

    GFD513440Courtesy of FORD MOTOR COMPANY
  2. Connect the wastegate control valve solenoid hoses. Use the General Equipment: Hose Clamp Remover/Installer
    GFD513439Courtesy of FORD MOTOR COMPANY
  3. Connect the wastegate control valve solenoid electrical connector.
GFD513438Courtesy of FORD MOTOR COMPANY
