Turbocharger RH: Installation

All vehicles

  1. Install a new turbocharger coolant supply tube O-ring seals. Lubricate the new O-ring seal with clean engine coolant. Refer to: Specifications .
    GFD513430Courtesy of FORD MOTOR COMPANY
    • NOTE: Use brake cleaner and a nylon brush to clean. Do not use a metal brush, damage to sealing area will result in leaks.

      Carefully use a nylon brush to remove the old O-ring residue and use brake cleaner to rinse the O-ring residue out of the turbocharger tube to turbocharger O-ring bore. Inspect the area for deep scratches and gouges. Install new components if needed.

    • Install the turbocharger coolant supply tube to the turbocharger, then install and tighten the turbocharger coolant supply tube bolt.

      Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

      Torque: 89 lb.in (10 Nm)

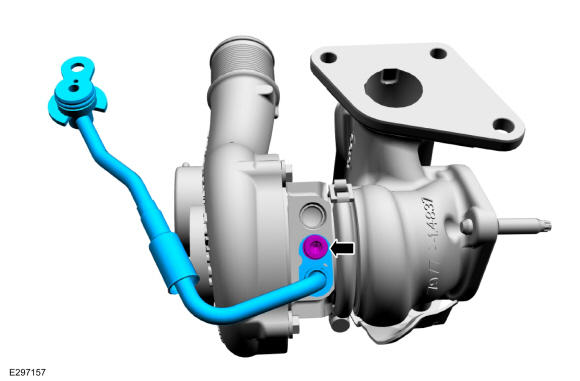

    GFD513428Courtesy of FORD MOTOR COMPANY
  2. Install the new turbocharger oil supply tube O-ring seals and the new turbocharger oil supply tube oil filter. Lubricate the new turbocharger oil supply tube O-ring seals with clean engine oil. Refer to: Specifications .
    GFD513400Courtesy of FORD MOTOR COMPANY
  3. NOTE: Use brake cleaner and a nylon brush to clean. Do not use a metal brush, damage to sealing area will result in leaks.

    • Carefully use a nylon brush to remove the old O-ring residue and use brake cleaner to rinse the O-ring residue out of the turbocharger tube to turbocharger O-ring bore and the turbocharger tube to engine O-ring bore. Inspect the area for deep scratches and gouges. Do not use a metal brush, damage to sealing area will result in leaks. Install new components if needed.

    • Connect the turbocharger oil supply tube to the turbocharger, then install and tighten the turbocharger oil supply tube bolt.

      Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

      Torque: 89 lb.in (10 Nm)

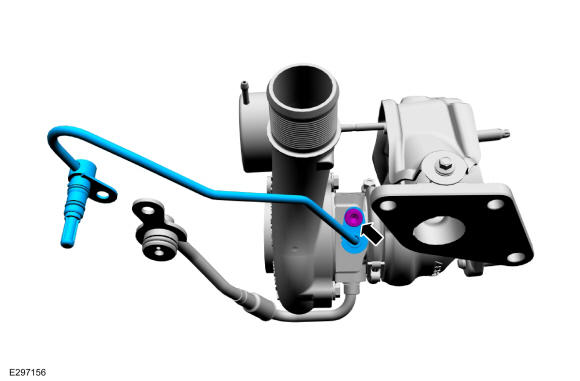

    GFD513427Courtesy of FORD MOTOR COMPANY
  4. Install the new turbocharger oil return tube-to-engine block gasket.

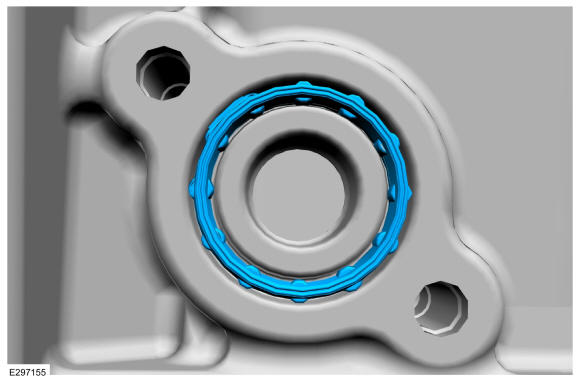

    GFD513431Courtesy of FORD MOTOR COMPANY
  5. Install a new turbocharger oil return tube O-ring seal, then lubricate with clean engine oil. Refer to: Specifications .
    GFD513432Courtesy of FORD MOTOR COMPANY

    LHD AWD

  6. NOTE: Do not use a metal brush; damage to sealing area will result in leaks.

    • Carefully use a nylon brush to remove the old O-ring residue and use brake cleaner to rinse the O-ring residue out of the turbocharger O-ring bore. Inspect the area for deep scratches and gouges.

    • Position the turbocharger oil return tube behind the axle bracket.

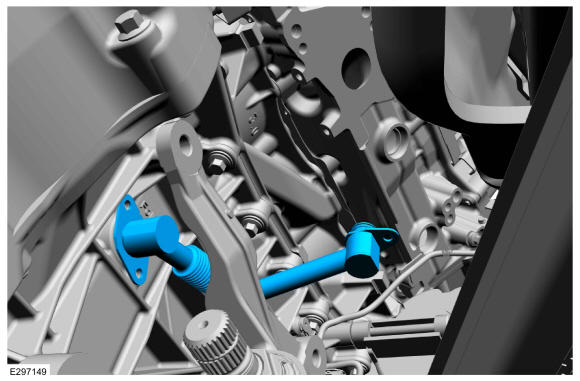

    GFD513424Courtesy of FORD MOTOR COMPANY

    All vehicles

  7. NOTE: Carefully use a nylon brush to remove the old O-ring residue and use brake cleaner to rinse the O-ring residue out of the turbocharger tube to engine O-ring bores for both the oil and coolant tubes. Inspect the area for deep scratches and gouges. Do not use a metal brush; damage to sealing area will result in leaks.

    Install the turbocharger, the new gasket, the bolt and the stud. Install the turbocharger coolant and oil supply tubes to the engine while installing the turbocharger.

    Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

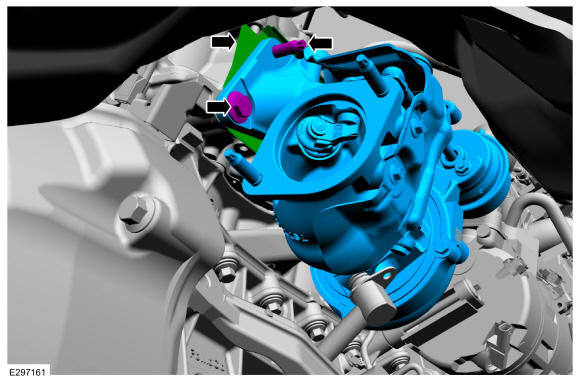

    GFD513433Courtesy of FORD MOTOR COMPANY

    LHD RWD

  8. NOTE: Do not use a metal brush, damage to sealing area will result in leaks.

    • Carefully use a nylon brush to remove the old O-ring residue and use brake cleaner to rinse the O-ring residue out of the turbocharger O-ring bore. Inspect the area for deep scratches and gouges.

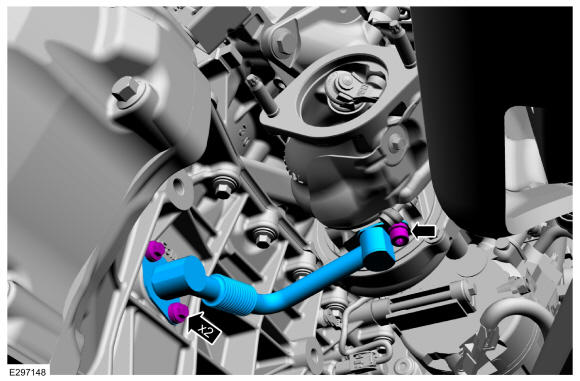

    1. Install the turbocharger oil return tube, then install and tighten the turbocharger oil return tube bolts.

      Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

      Torque: 89 lb.in (10 Nm)

    GFD513422Courtesy of FORD MOTOR COMPANY

    LHD AWD

  9. NOTE: Do not use a metal brush, damage to sealing area will result in leaks.

    • Carefully use a nylon brush to remove the old O-ring residue and use brake cleaner to rinse the O-ring residue out of the turbocharger O-ring bore. Inspect the area for deep scratches and gouges.

    1. Install the turbocharger oil return tube, then install and tighten the turbocharger oil return tube bolts.

      Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

      Torque: 89 lb.in (10 Nm)

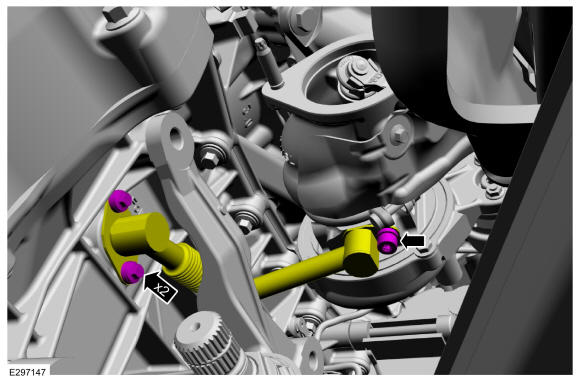

    GFD513421Courtesy of FORD MOTOR COMPANY
  10. Install the front driveshaft. Refer to: Front Driveshaft .

    All vehicles

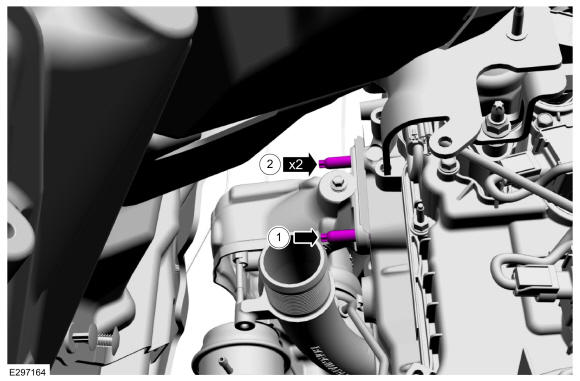

    1. Install the front turbocharger stud.
    2. Tighten the turbocharger studs.

      Torque: 106 lb.in (12 Nm)

    GFD513434Courtesy of FORD MOTOR COMPANY

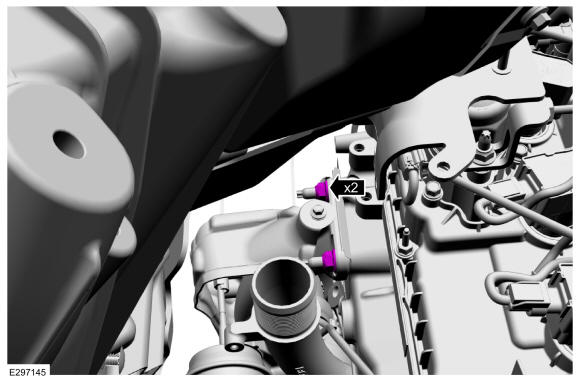

  11. Loosely install the turbocharger nuts.
    GFD513419Courtesy of FORD MOTOR COMPANY

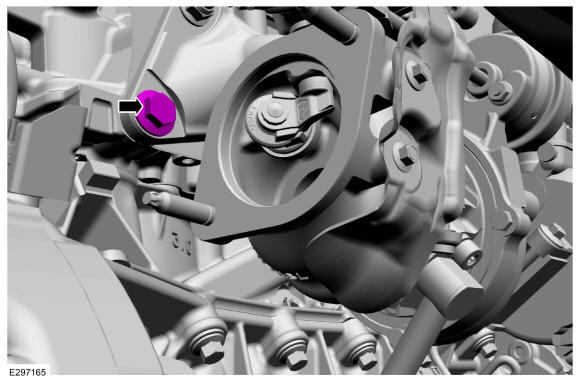

  12. Tighten the turbocharger bolt.

    Torque: 44 lb.ft (60 Nm)

    GFD513435Courtesy of FORD MOTOR COMPANY
    1. Tighten the turbocharger nut.

      Torque: 44 lb.ft (60 Nm)

    2. Tighten the turbocharger nut.

      Torque: 27 lb.ft (37 Nm)

    GFD513436Courtesy of FORD MOTOR COMPANY
  13. Re-tighten the turbocharger bolt.

    Torque: 44 lb.ft (60 Nm)

    GFD513435Courtesy of FORD MOTOR COMPANY
    1. Re-tighten the turbocharger nuts.

      Torque: 44 lb.ft (60 Nm)

    2. Re-tighten the turbocharger nut

      Torque: 27 lb.ft (37 Nm)

    GFD513436Courtesy of FORD MOTOR COMPANY

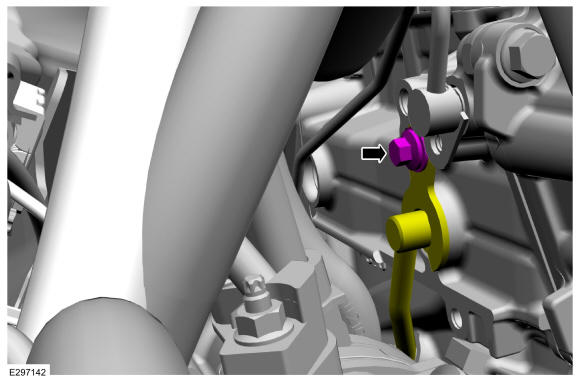

  14. Install the turbocharger coolant supply tube, then install and tighten the turbocharger coolant supply tube bolt.

    Torque: 89 lb.in (10 Nm)

    GFD513418Courtesy of FORD MOTOR COMPANY

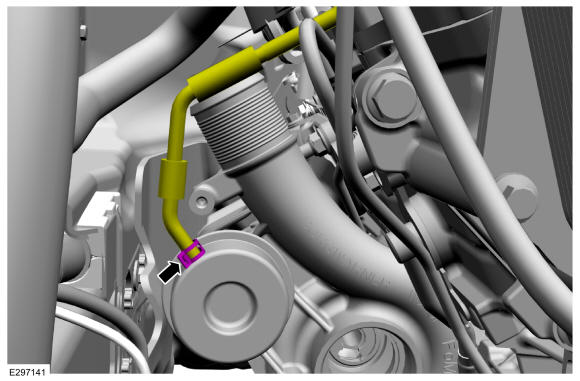

  15. Connect the turbocharger wastegate control hose and clamp.
    GFD513417Courtesy of FORD MOTOR COMPANY
  16. Install a new turbocharger coolant return tube O-ring seal and lubricate the new O-ring seal with clean engine coolant. Refer to: Specifications .
    GFD513408Courtesy of FORD MOTOR COMPANY
  17. Install and connect the turbocharger coolant return tube and clamp. Use the General Equipment: Hose Clamp Remover/Installer
    GFD513380Courtesy of FORD MOTOR COMPANY
  18. NOTE: Do not use a metal brush, damage to sealing area will result in leaks.

    • Carefully use a nylon brush to remove the old O-ring residue and use brake cleaner to rinse the O-ring residue out of the turbocharger O-ring bore. Inspect the area for deep scratches and gouges. Install new components if needed.

      Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    1. Connect the turbocharger coolant return tube to the turbocharger, then install and tighten the bolt.

      Torque: 89 lb.in (10 Nm)

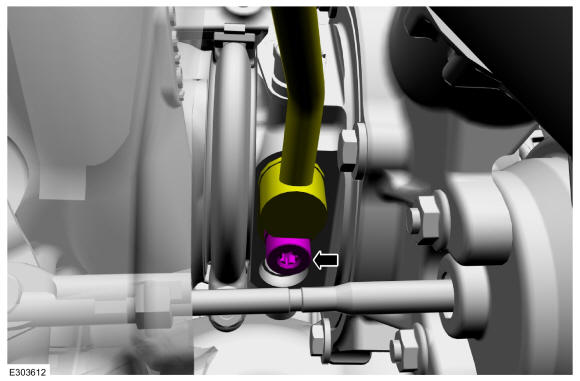

    GFD513415Courtesy of FORD MOTOR COMPANY

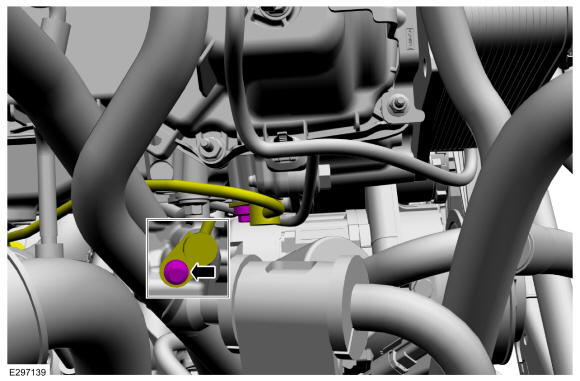

  19. NOTE: When installing the turbocharger oil supply tube into the engine block, use care not to damage the new turbocharger oil supply tube oil filter.

    Install the turbocharger oil supply tube to the engine, then install and tighten the turbocharger oil supply tube bolt.

    Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    Torque: 89 lb.in (10 Nm)

    GFD513414Courtesy of FORD MOTOR COMPANY
  20. Install the right charge air cooler (CAC) intake pipe. Refer to: Charge Air Cooler (CAC) Intake Pipe .
  21. Install the air cleaner outlet pipe RH. Refer to: Air Cleaner Outlet Pipe RH .
  22. Position an adjustable jack stand under the transmission crossmember.
    GFD513377Courtesy of FORD MOTOR COMPANY
  23. Support the front and rear of the subframe with adjustable jack stands.
    GFD513376Courtesy of FORD MOTOR COMPANY
    • Remove the rear subframe bolts.

    • Discard the bolts.

    GFD513409Courtesy of FORD MOTOR COMPANY
    • Remove the middle subframe bolts.

    • Discard the bolts.

    GFD513410Courtesy of FORD MOTOR COMPANY
    • Remove the front subframe bolts.

    • Discard the bolts.

    GFD513411Courtesy of FORD MOTOR COMPANY
  24. With the aid of an assistant, lower the front jack stand 127 mm (5.0 in) and the rear jack stand 152.4 mm (6.0 in) evenly or until engine mount stud clears the subframe.
    GFD513412Courtesy of FORD MOTOR COMPANY

    LHD RWD

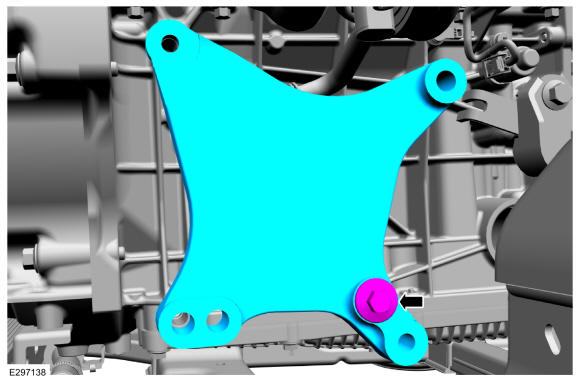

  25. Install the right engine mount spacer, then install and tighten the bolts.

    Torque: Stage 1: Tighten to: 66 lb.ft (90 Nm), Stage 2: Tighten an additional: 90 deg.

    GFD513413Courtesy of FORD MOTOR COMPANY

    All vehicles

  26. Install the right engine mount. Refer to: Engine Mount RH .
  27. Check and top off the engine oil level as needed. Refer to: Specifications .
