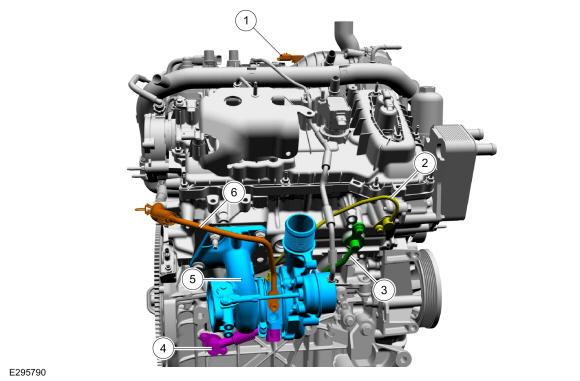

Turbocharger 3.0L EcoBoost RH

GFD513370Courtesy of FORD MOTOR COMPANY
Item Description
1 Wastegate vacuum sensor
2 Turbocharger oil supply tube RH
3 Turbocharger coolant supply tube RH
4 Turbocharger oil return tube RH
5 Turbocharger RH
6 Turbocharger coolant return tube RH
