Wipers and Washers

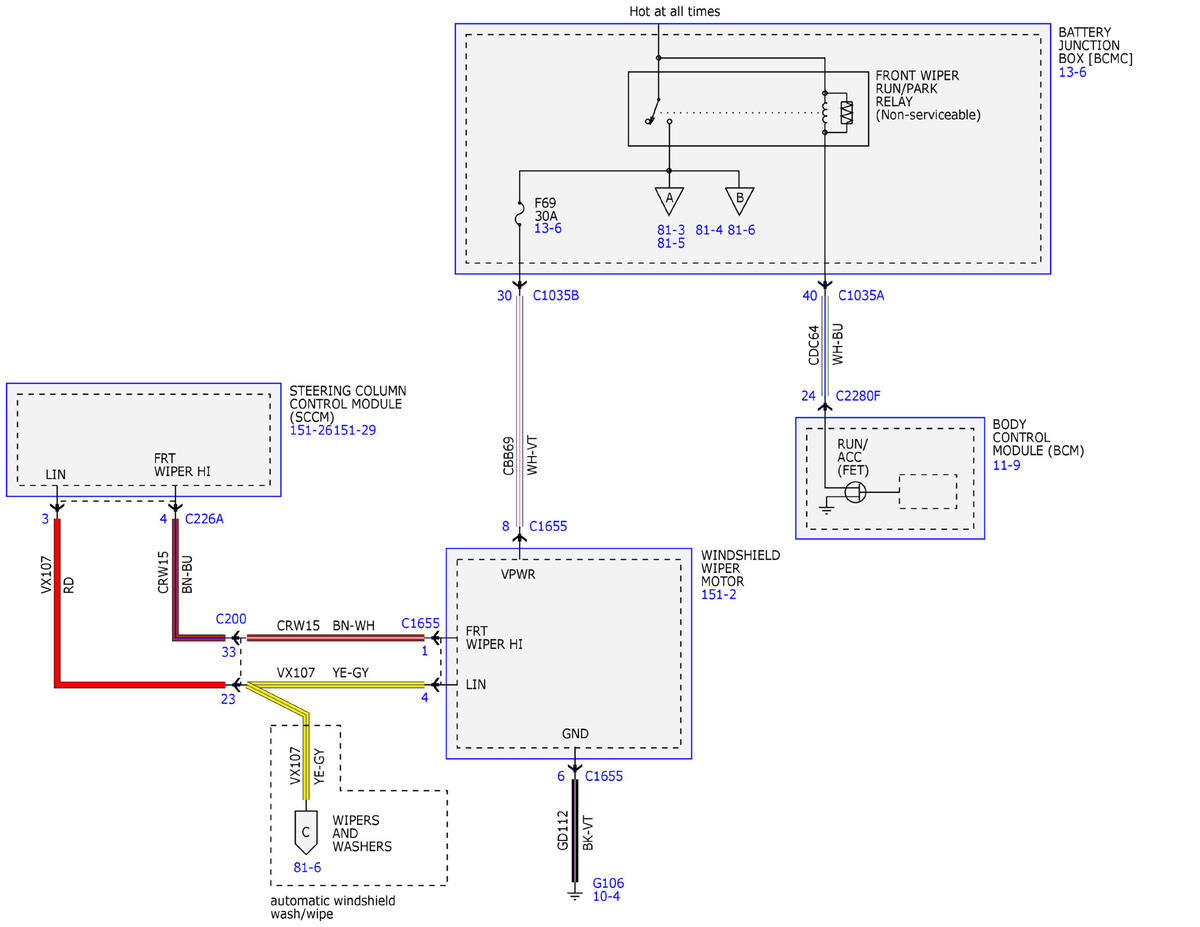

Fig 1: Wipers & Washers System Wiring Diagrams (1 Of 6)
GFDWR94759Courtesy of FORD MOTOR COMPANY

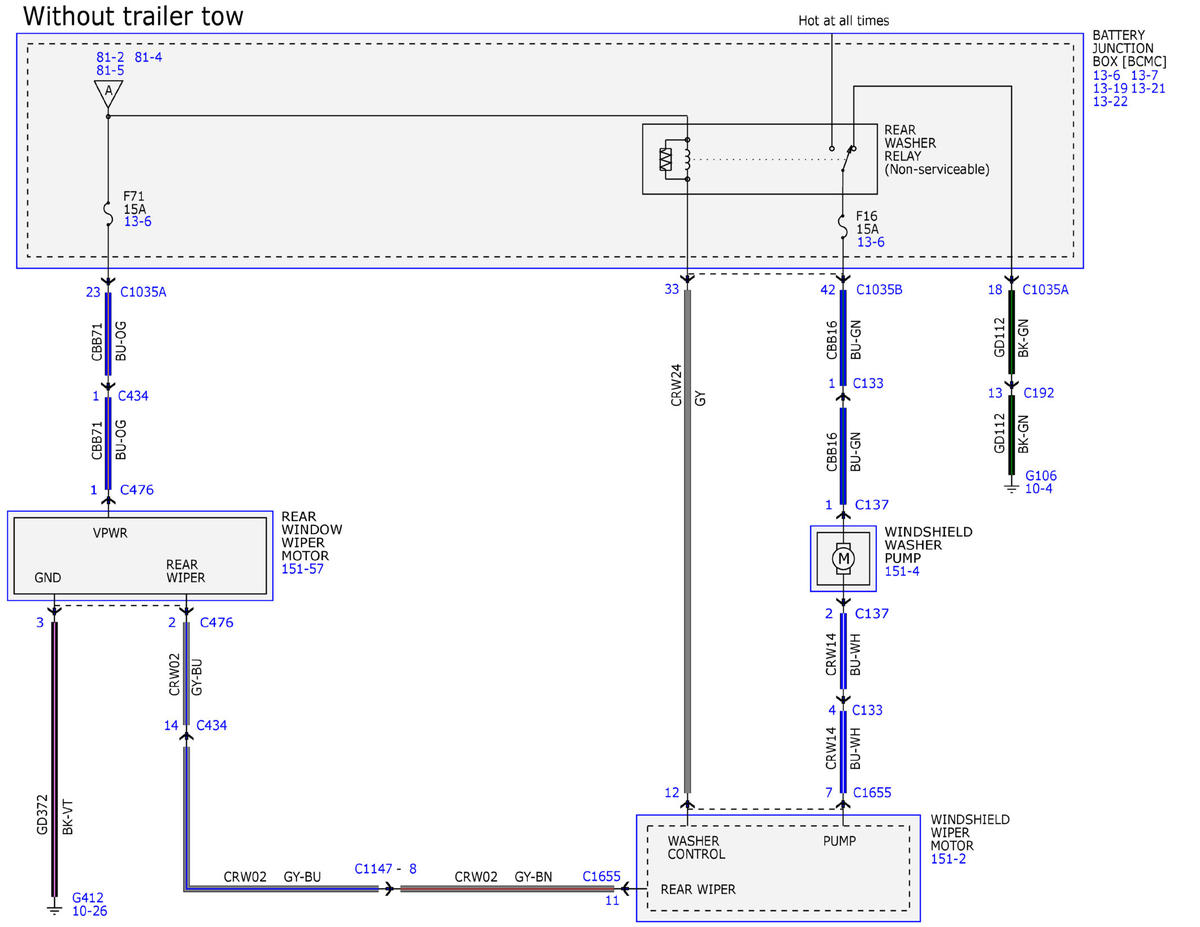

Fig 2: Wipers & Washers System Wiring Diagrams (2 Of 6)
GFDWR94760Courtesy of FORD MOTOR COMPANY

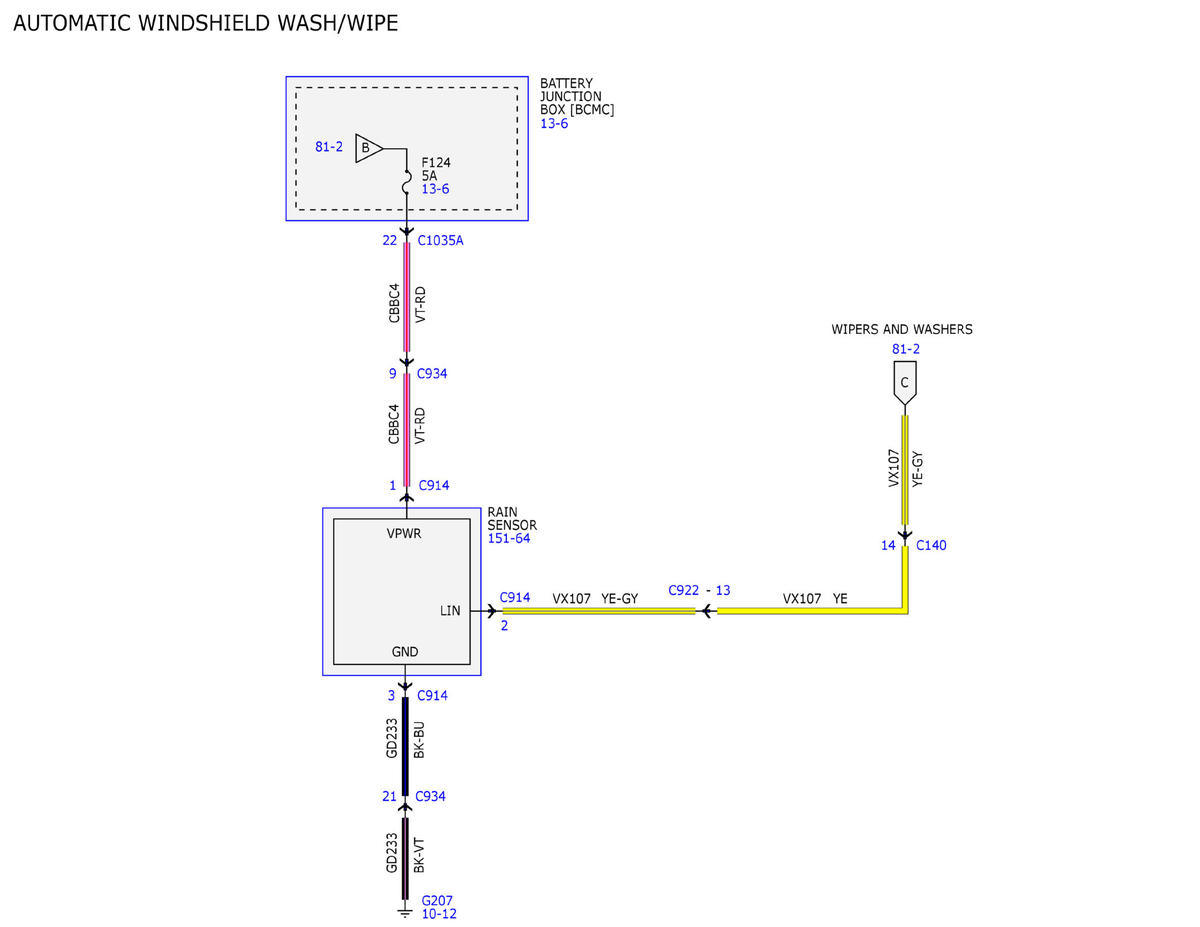

Fig 3: Wipers & Washers System Wiring Diagrams (3 Of 6)
GFDWR94761Courtesy of FORD MOTOR COMPANY

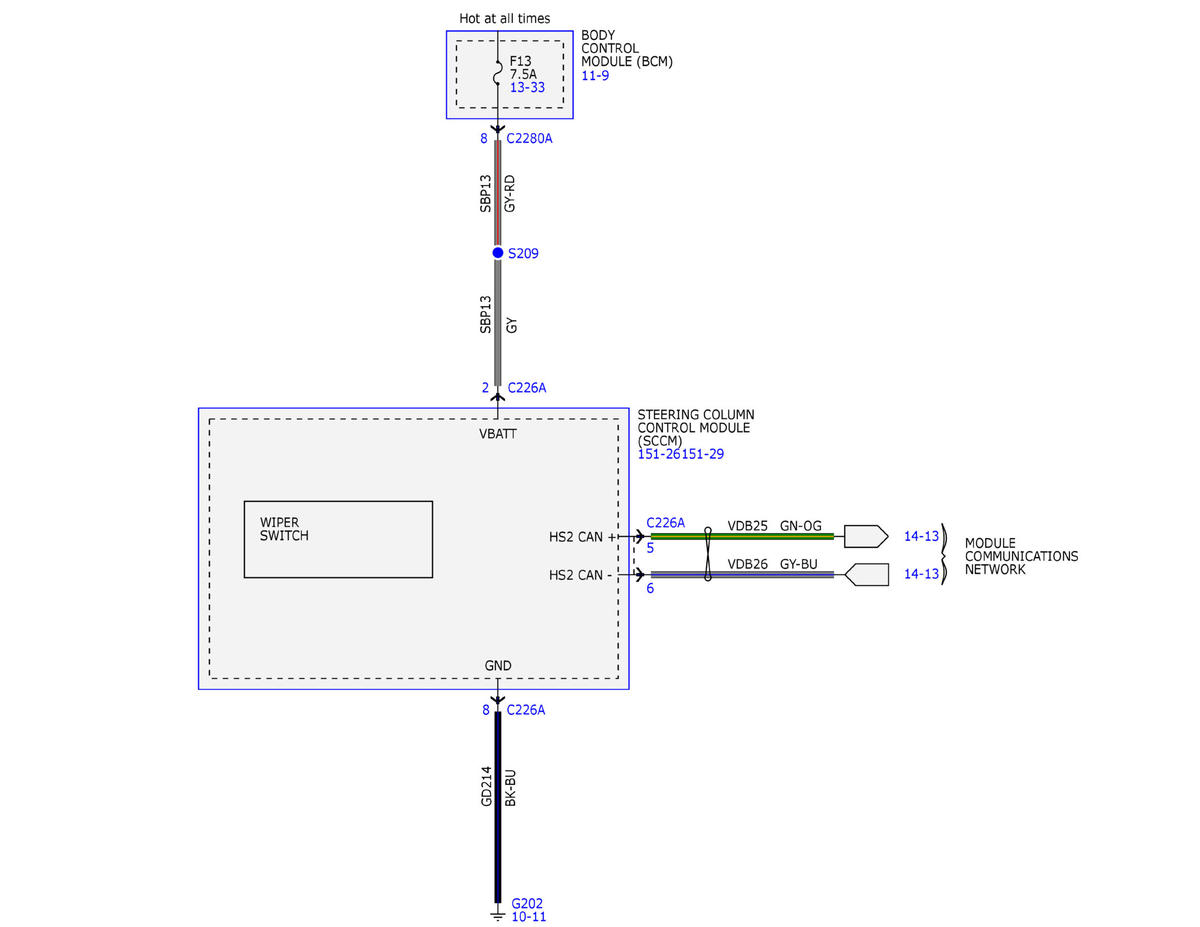

Fig 4: Wipers & Washers System Wiring Diagrams (4 Of 6)
GFDWR94762Courtesy of FORD MOTOR COMPANY

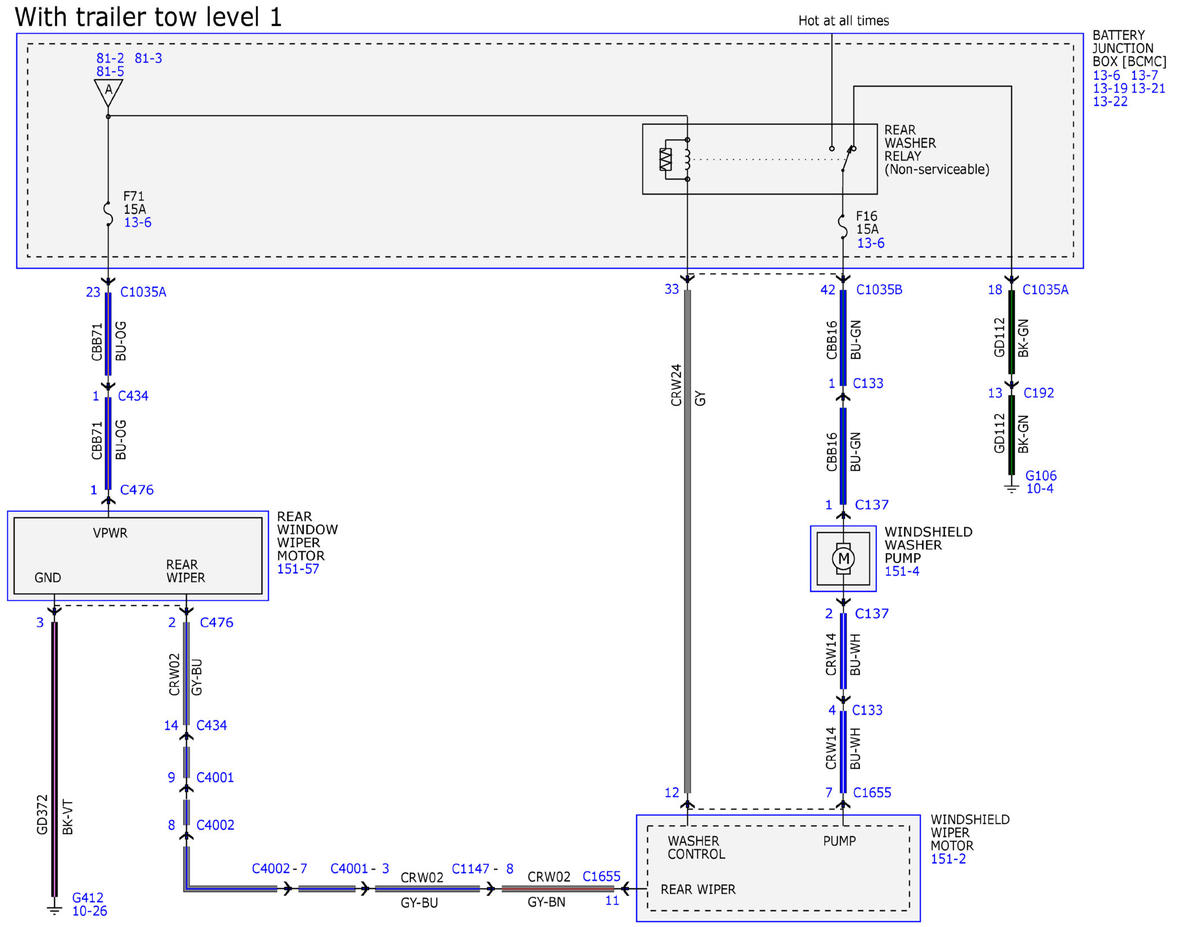

Fig 5: Wipers & Washers System Wiring Diagrams (5 Of 6)
GFDWR94763Courtesy of FORD MOTOR COMPANY
Fig 6: Wipers & Washers System Wiring Diagrams (6 Of 6)
GFDWR94764Courtesy of FORD MOTOR COMPANY
