Police Option

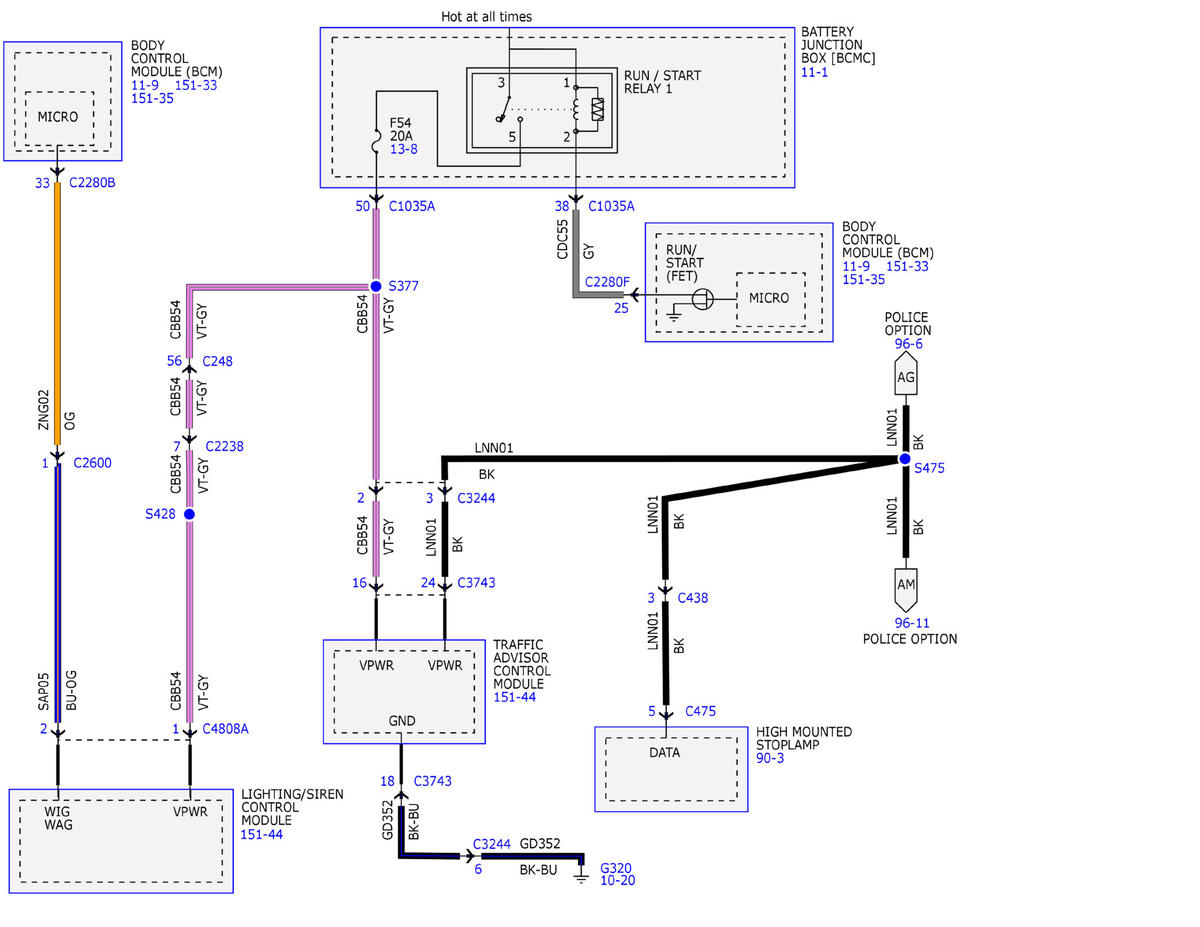

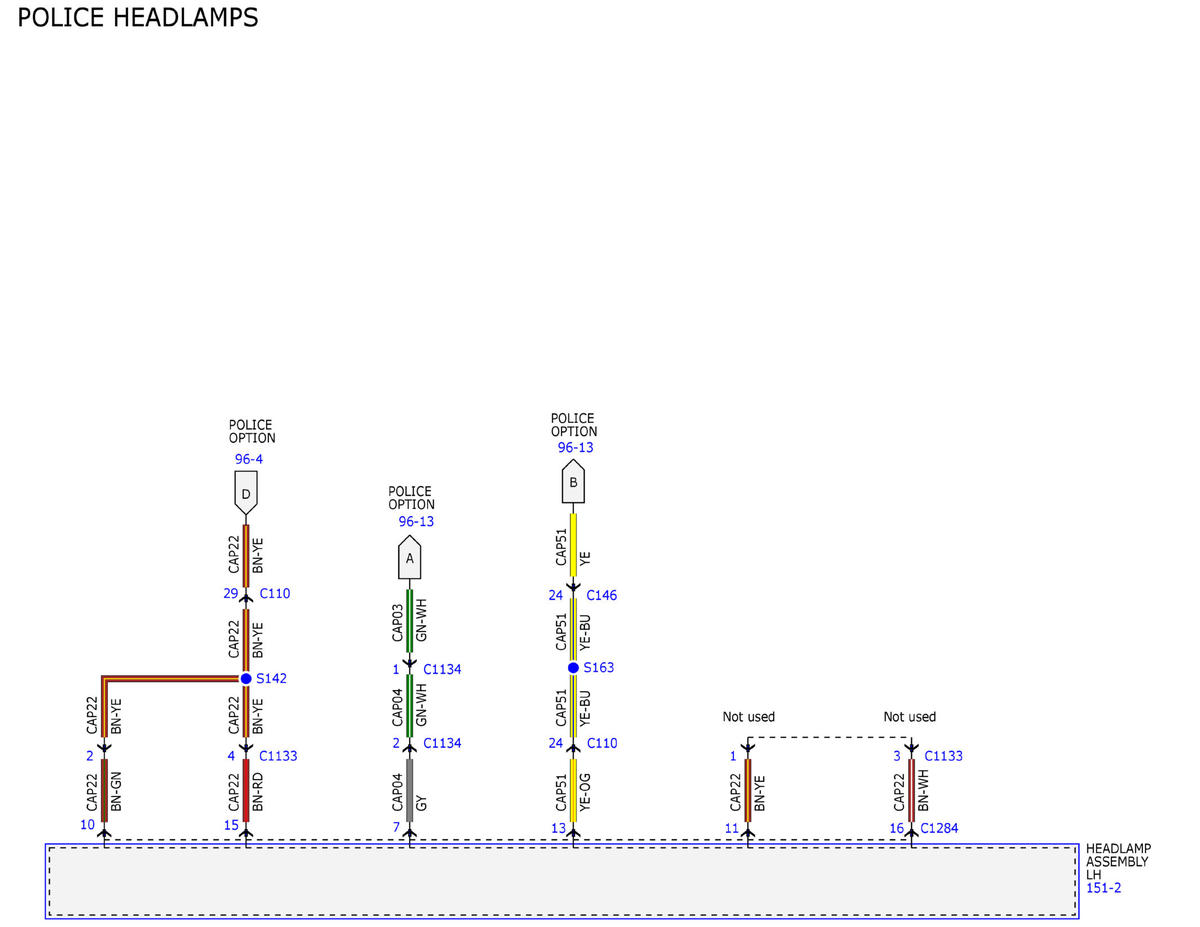

Fig 1: Police Option System Wiring Diagrams (1 Of 14)

Courtesy of FORD MOTOR COMPANY

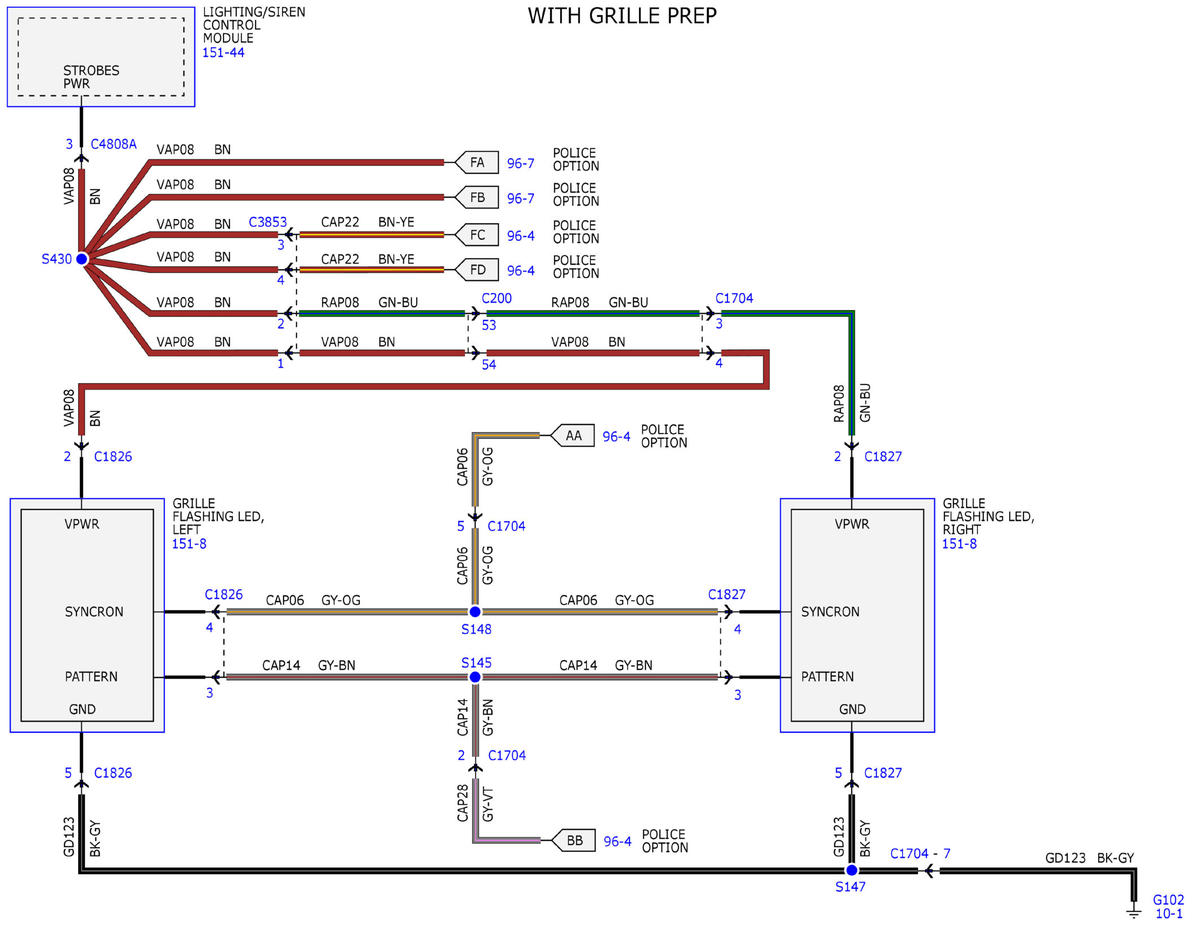

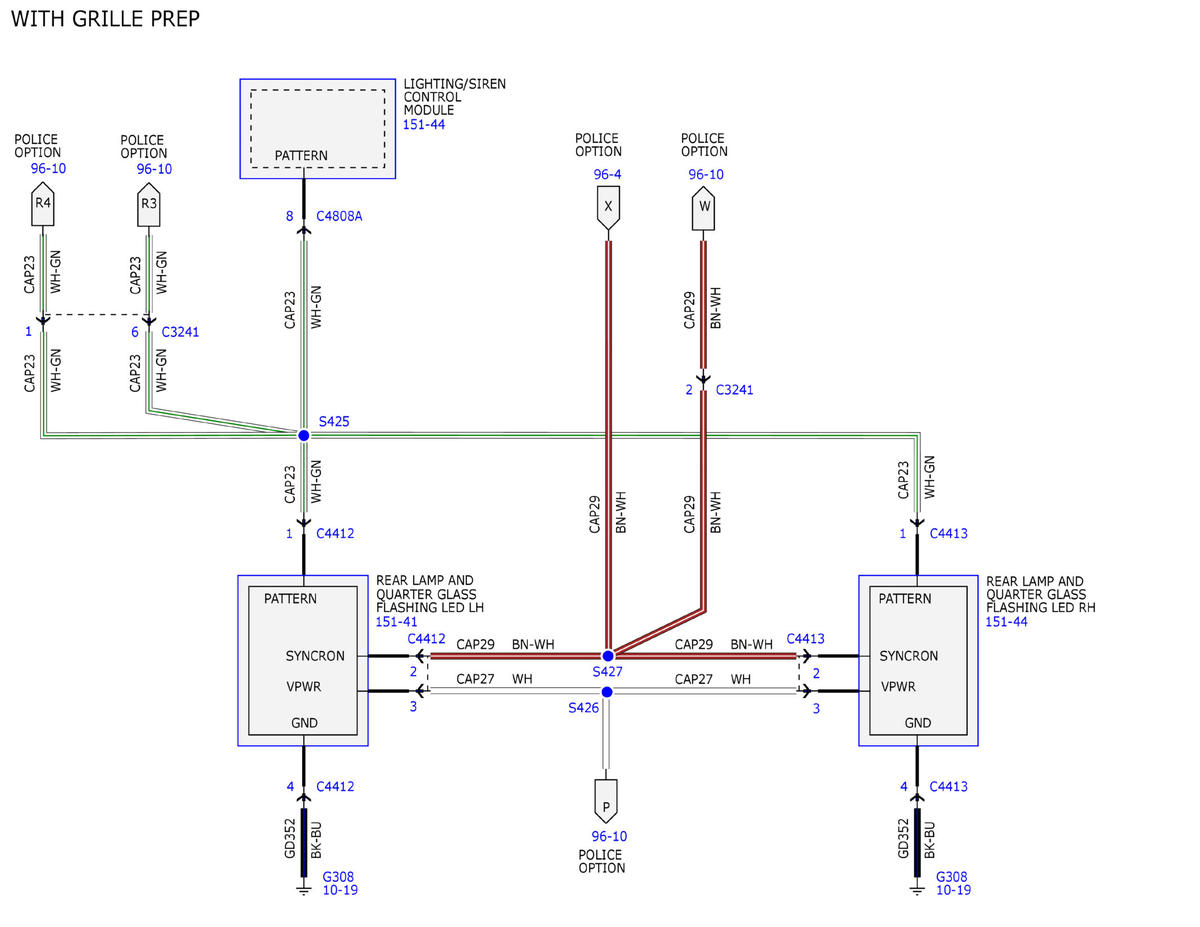

Fig 2: Police Option System Wiring Diagrams (2 Of 14)

Courtesy of FORD MOTOR COMPANY

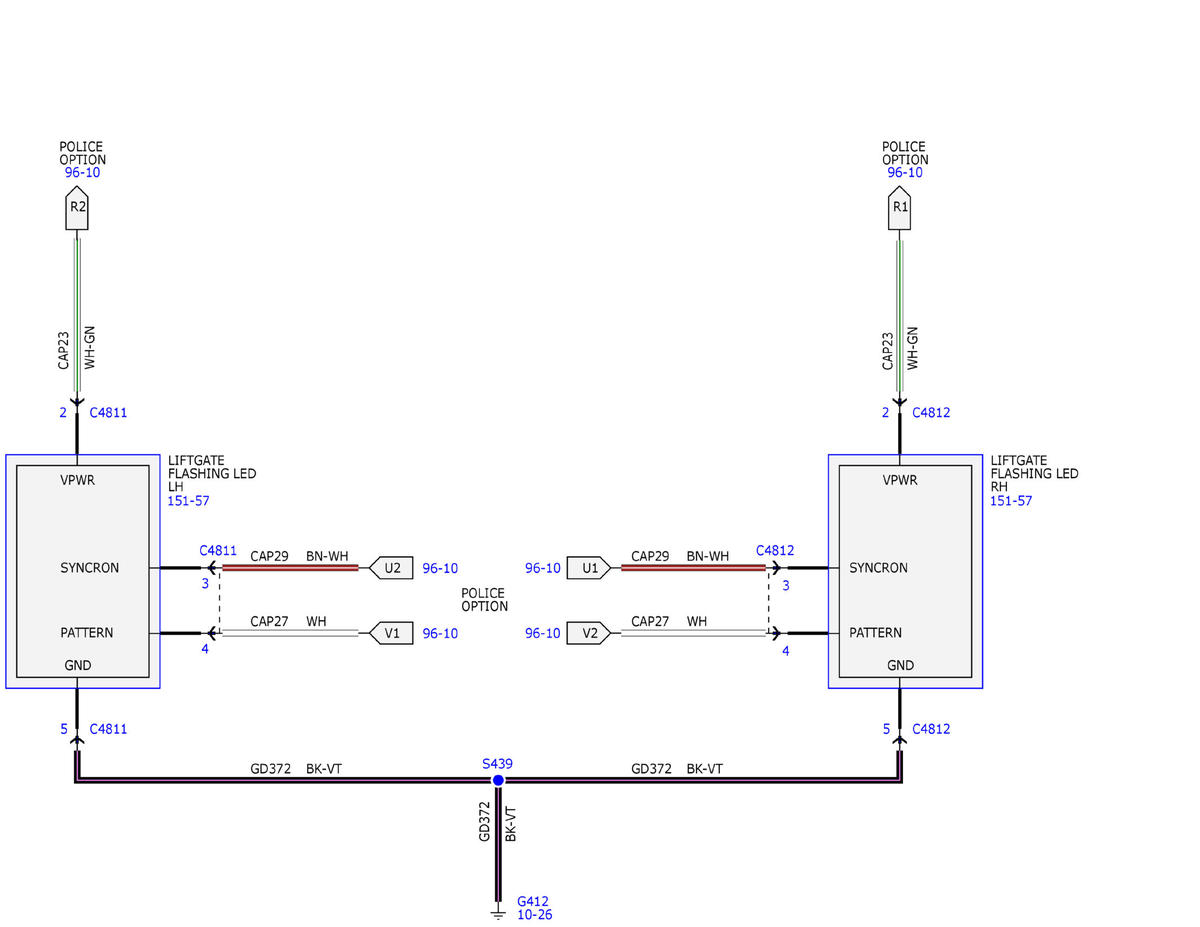

Fig 3: Police Option System Wiring Diagrams (3 Of 14)

Courtesy of FORD MOTOR COMPANY

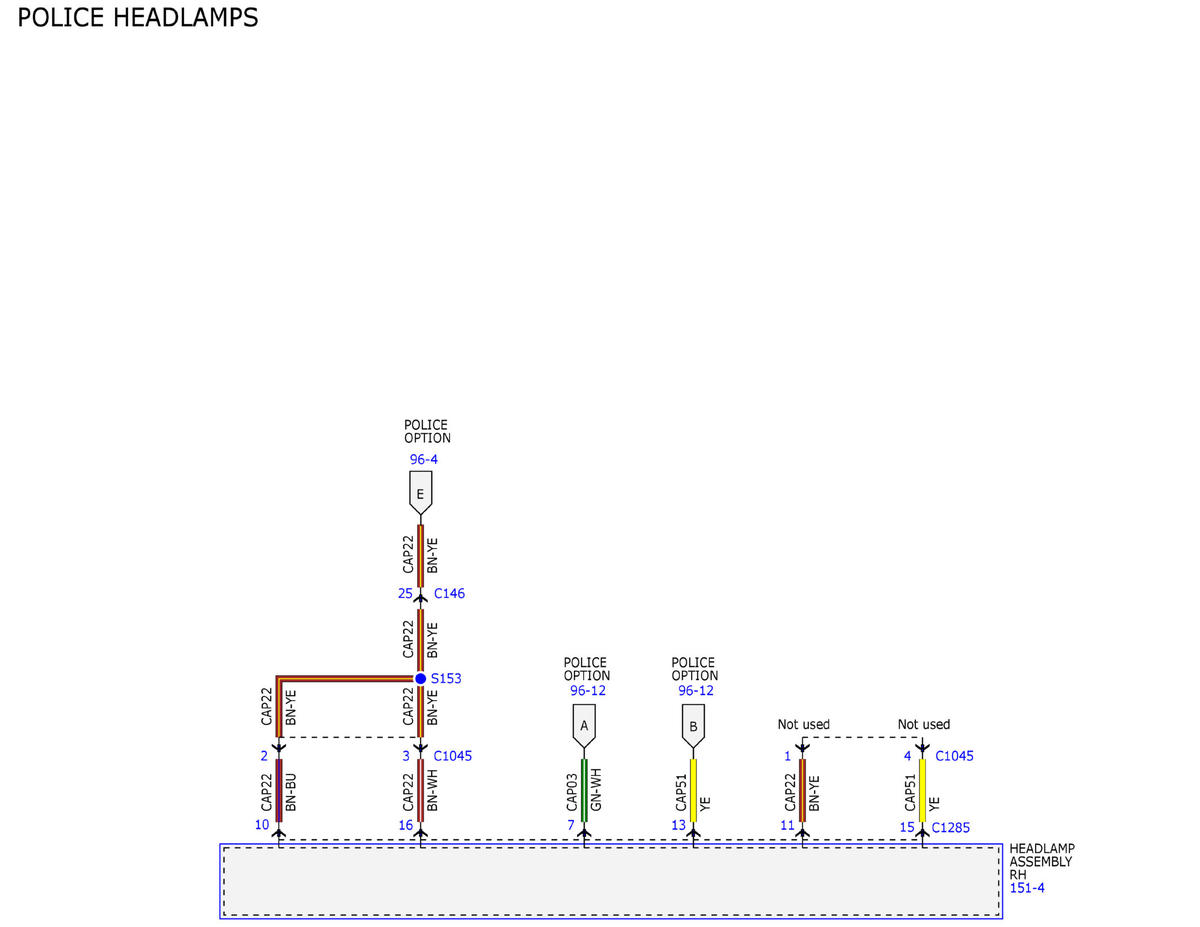

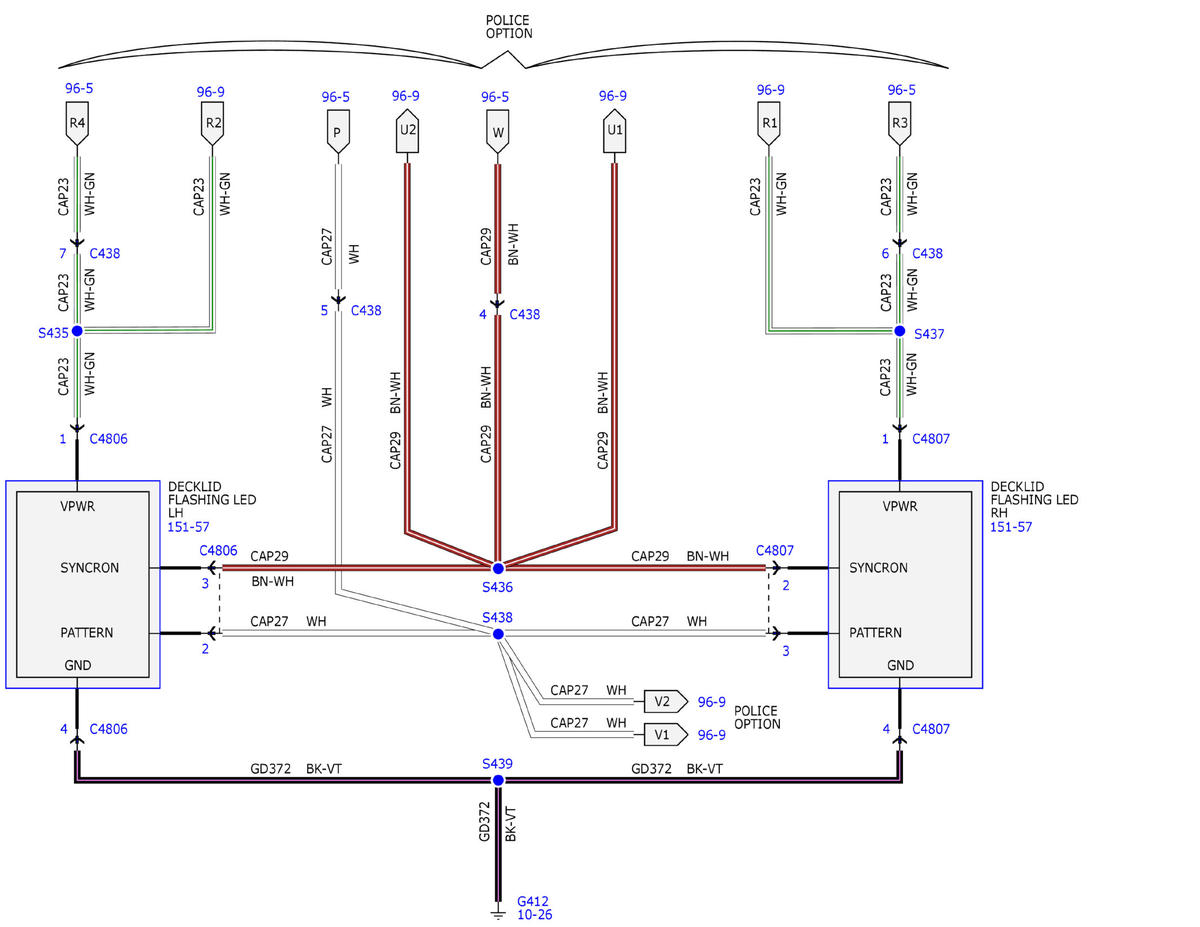

Fig 4: Police Option System Wiring Diagrams (4 Of 14)

Courtesy of FORD MOTOR COMPANY

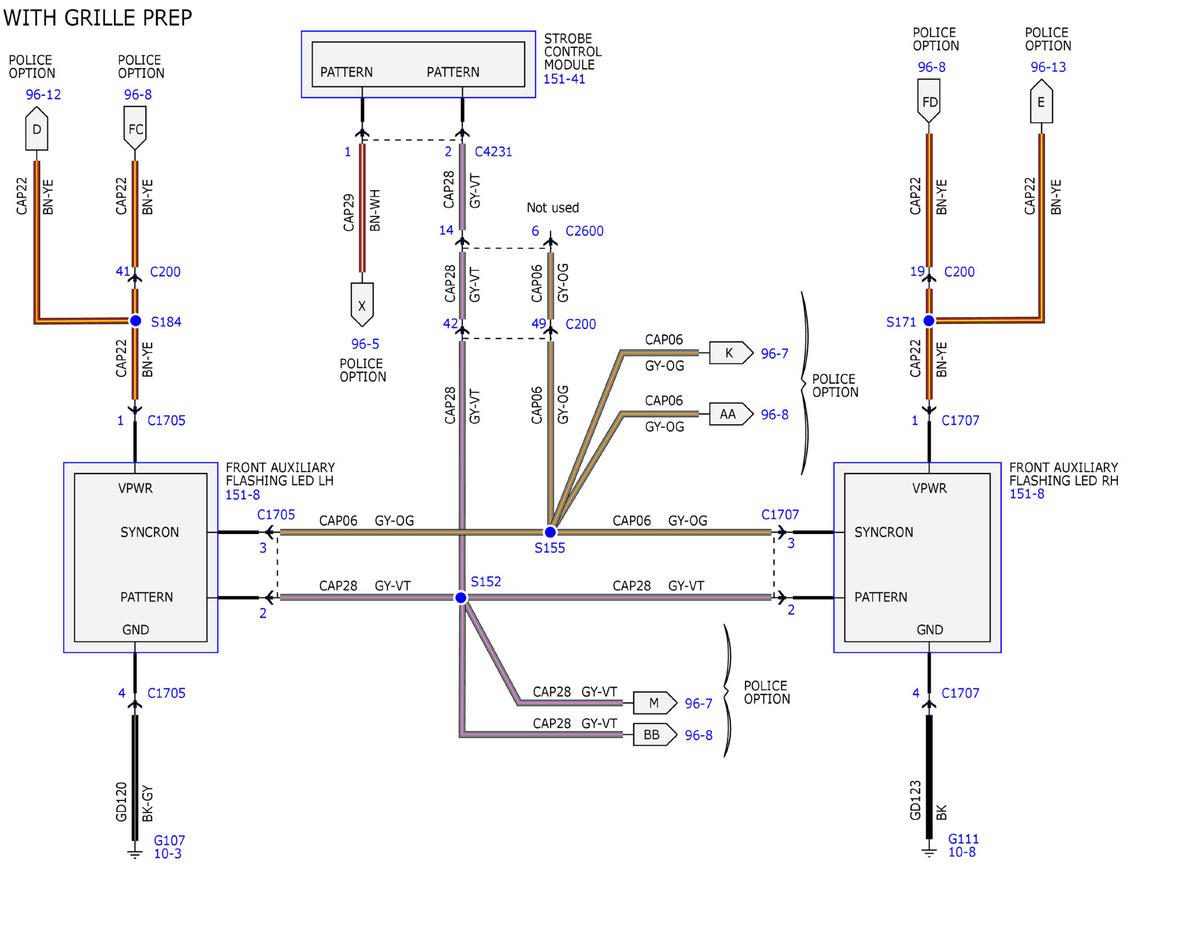

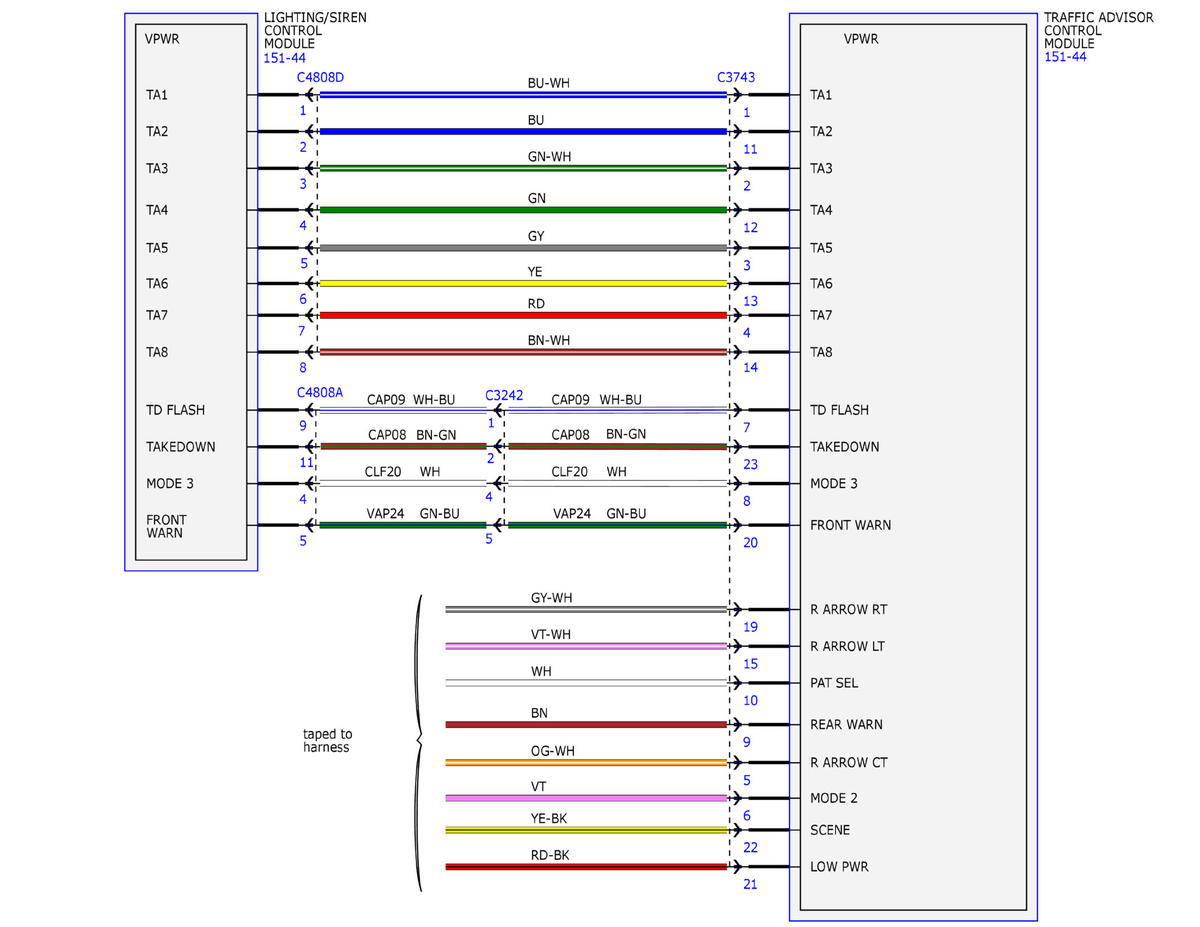

Fig 5: Police Option System Wiring Diagrams (5 Of 14)

Courtesy of FORD MOTOR COMPANY

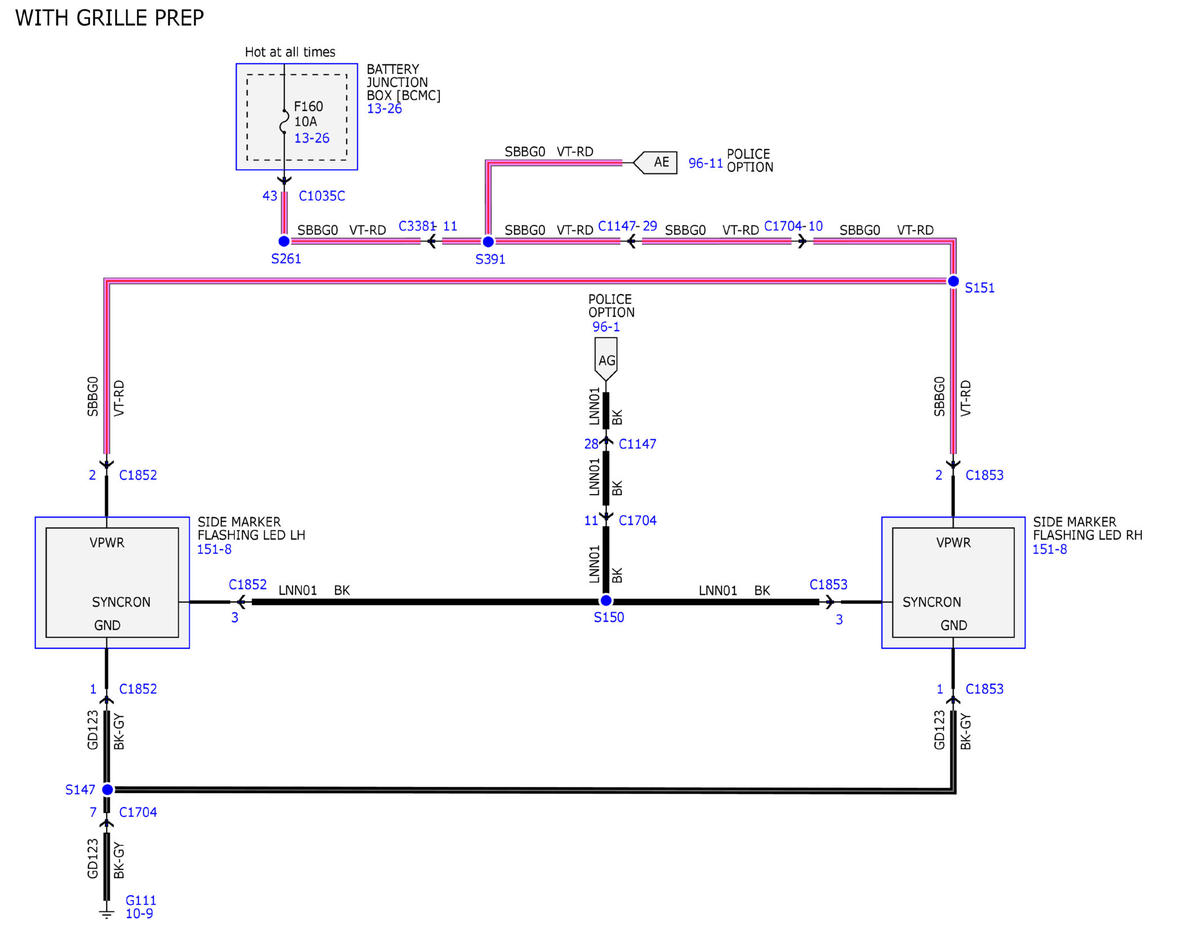

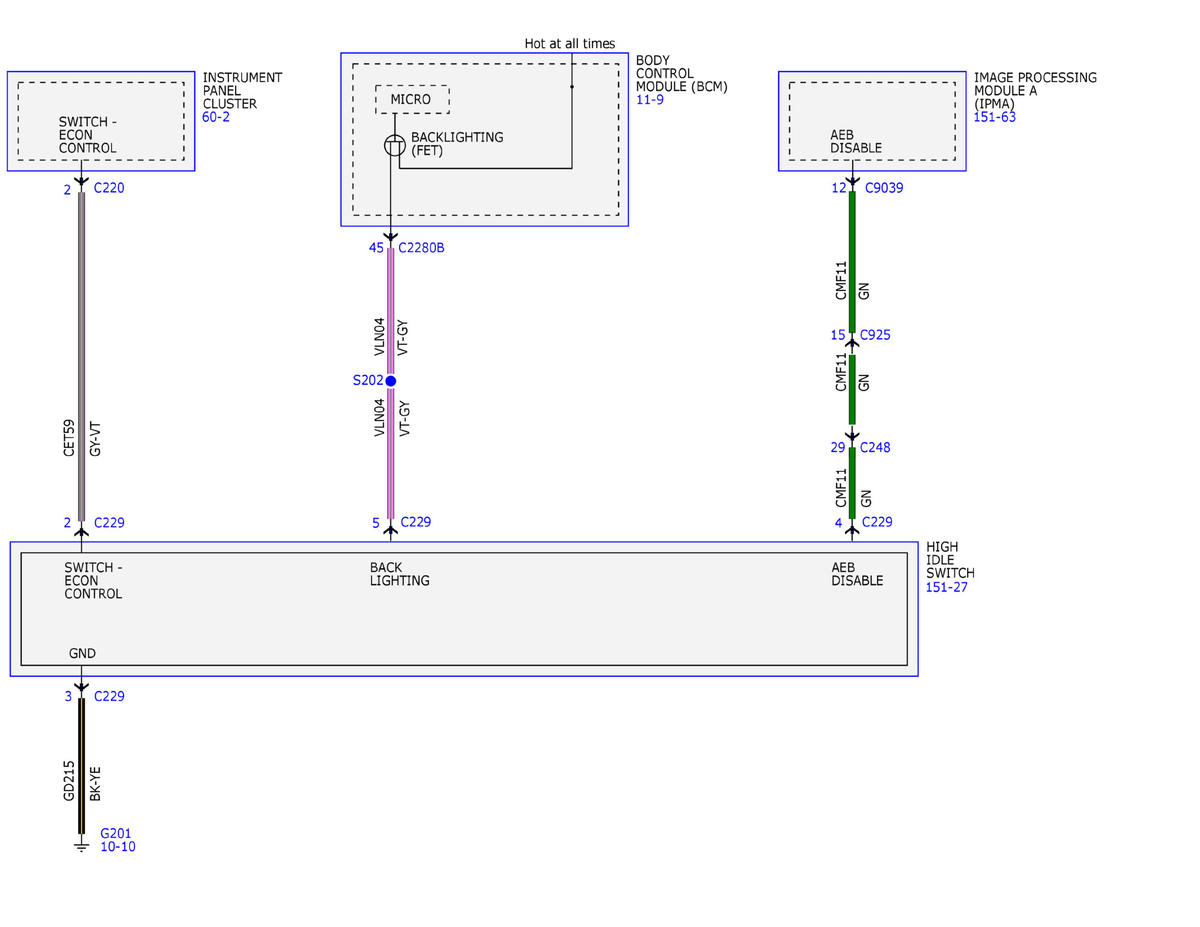

Fig 6: Police Option System Wiring Diagrams (6 Of 14)

Courtesy of FORD MOTOR COMPANY

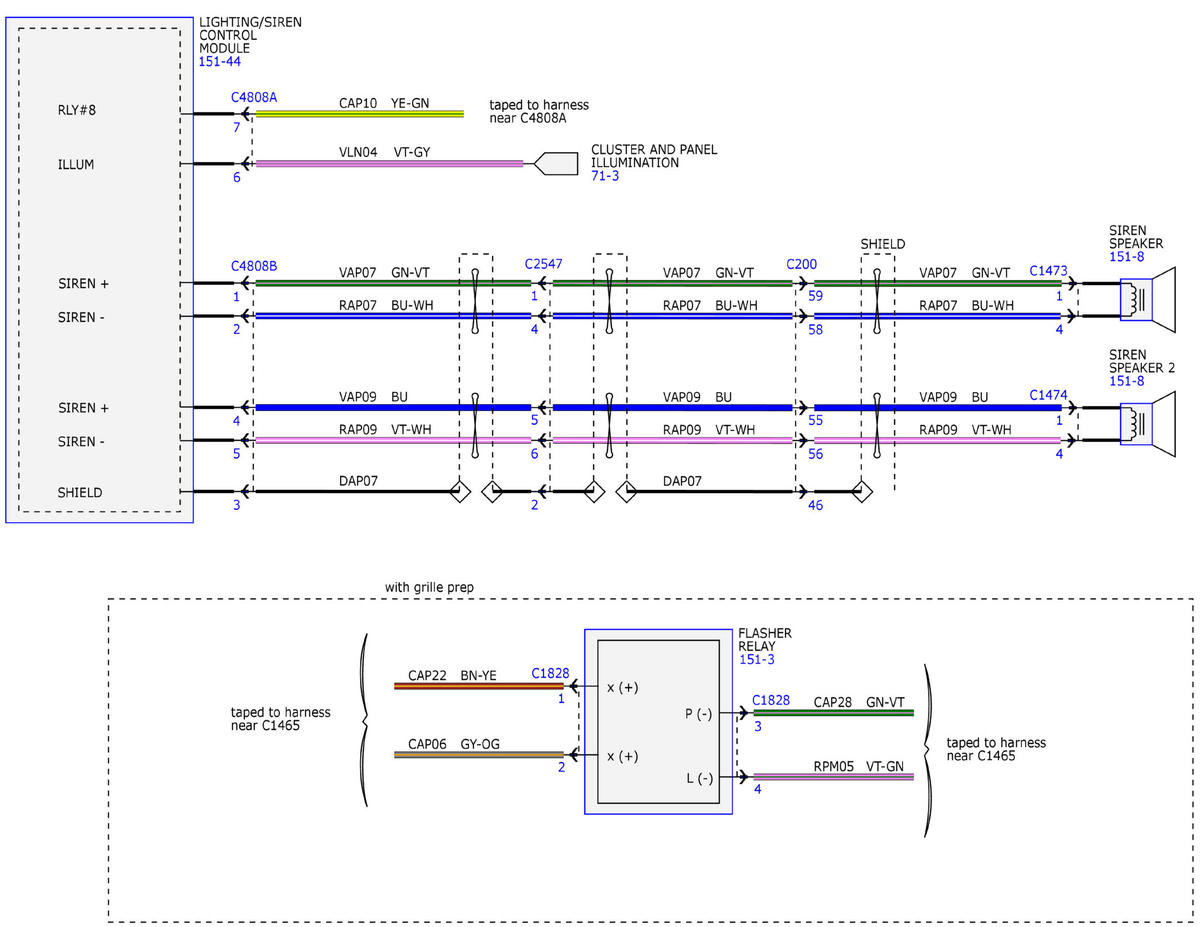

Fig 7: Police Option System Wiring Diagrams (7 Of 14)

Courtesy of FORD MOTOR COMPANY

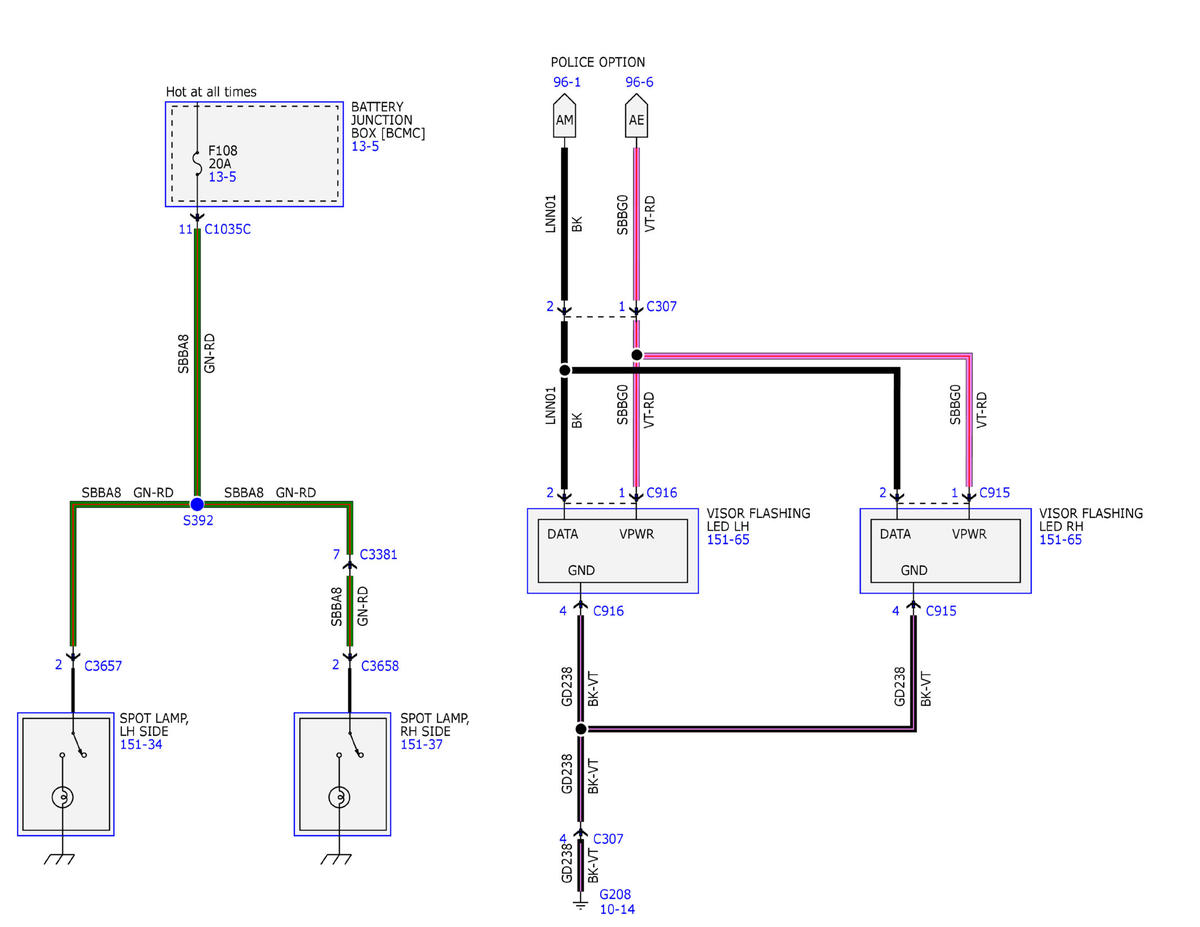

Fig 8: Police Option System Wiring Diagrams (8 Of 14)

Courtesy of FORD MOTOR COMPANY

Fig 9: Police Option System Wiring Diagrams (9 Of 14)

Courtesy of FORD MOTOR COMPANY

Fig 10: Police Option System Wiring Diagrams (10 Of 14)

Courtesy of FORD MOTOR COMPANY

Fig 11: Police Option System Wiring Diagrams (11 Of 14)

Courtesy of FORD MOTOR COMPANY

Fig 12: Police Option System Wiring Diagrams (12 Of 14)

Courtesy of FORD MOTOR COMPANY

Fig 13: Police Option System Wiring Diagrams (13 Of 14)

Courtesy of FORD MOTOR COMPANY

Fig 14: Police Option System Wiring Diagrams (14 Of 14)

Courtesy of FORD MOTOR COMPANY
