Climate Controlled Seats

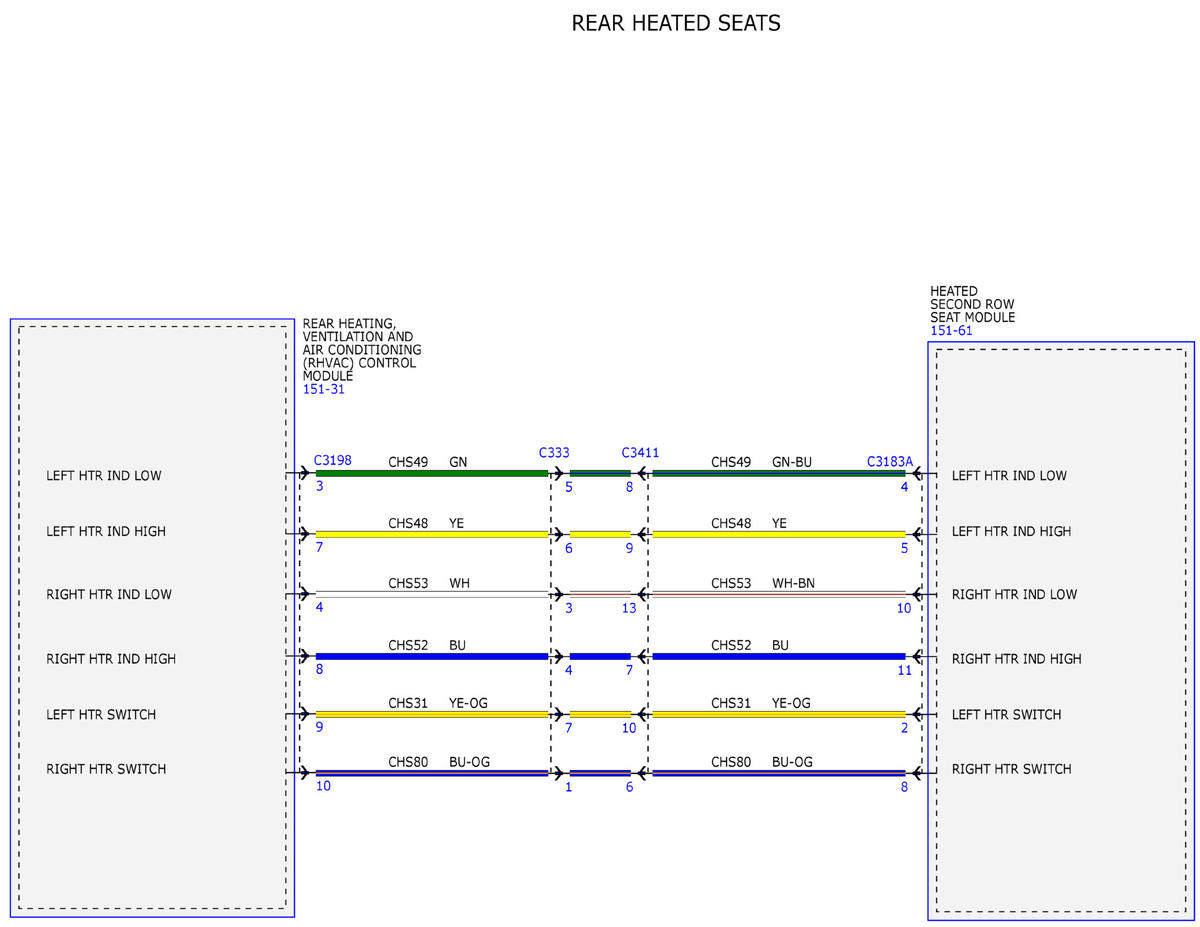

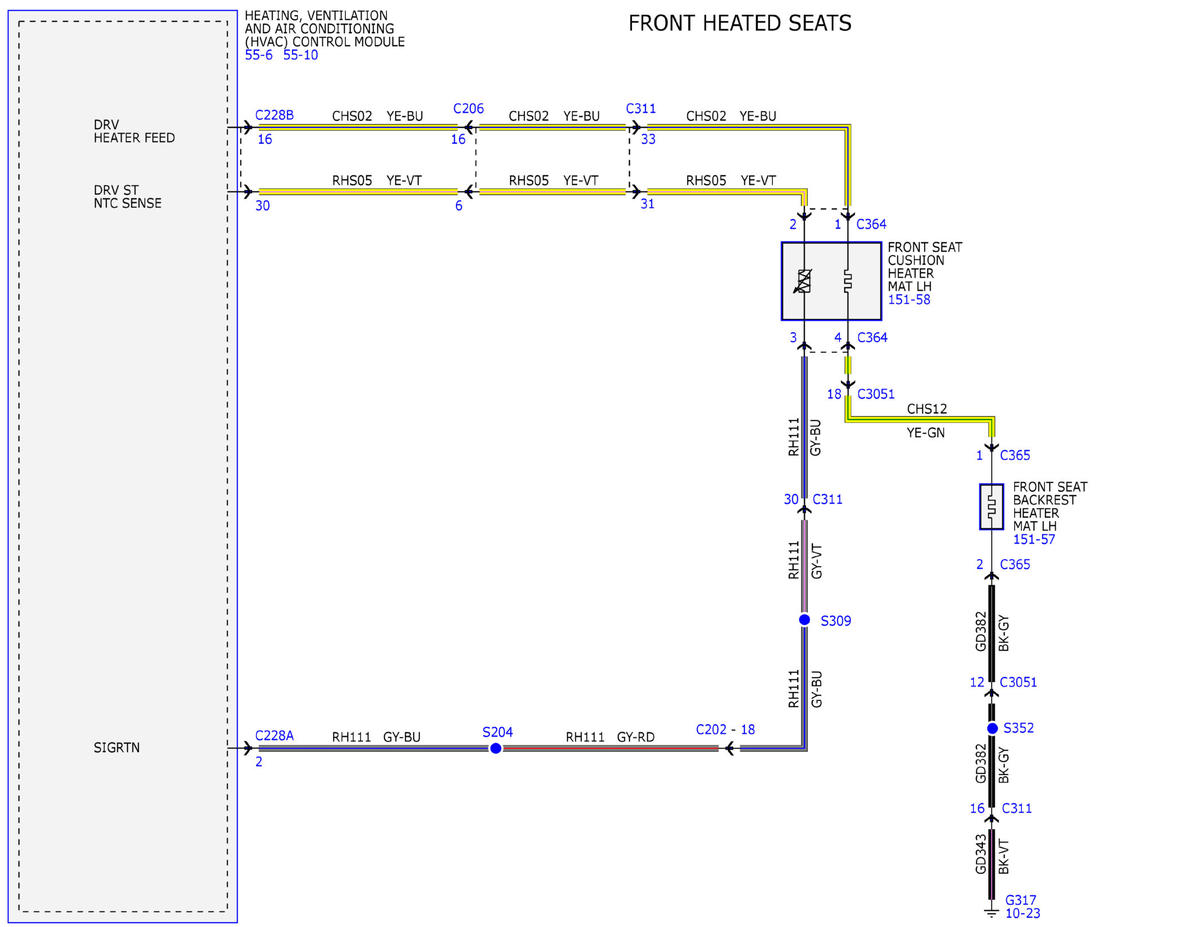

Fig 1: Climate Controlled Seats System Wiring Diagrams (1 Of 13)

Courtesy of FORD MOTOR COMPANY

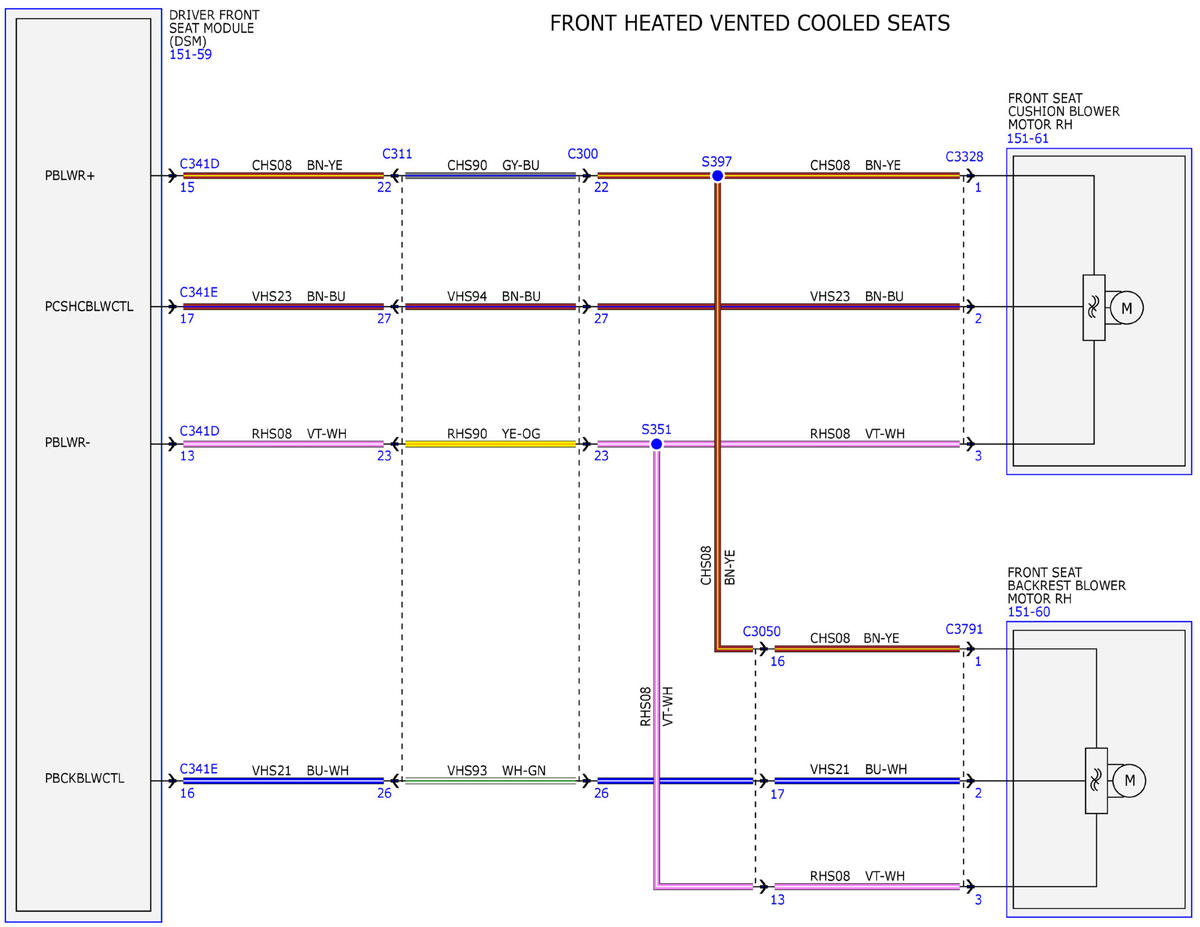

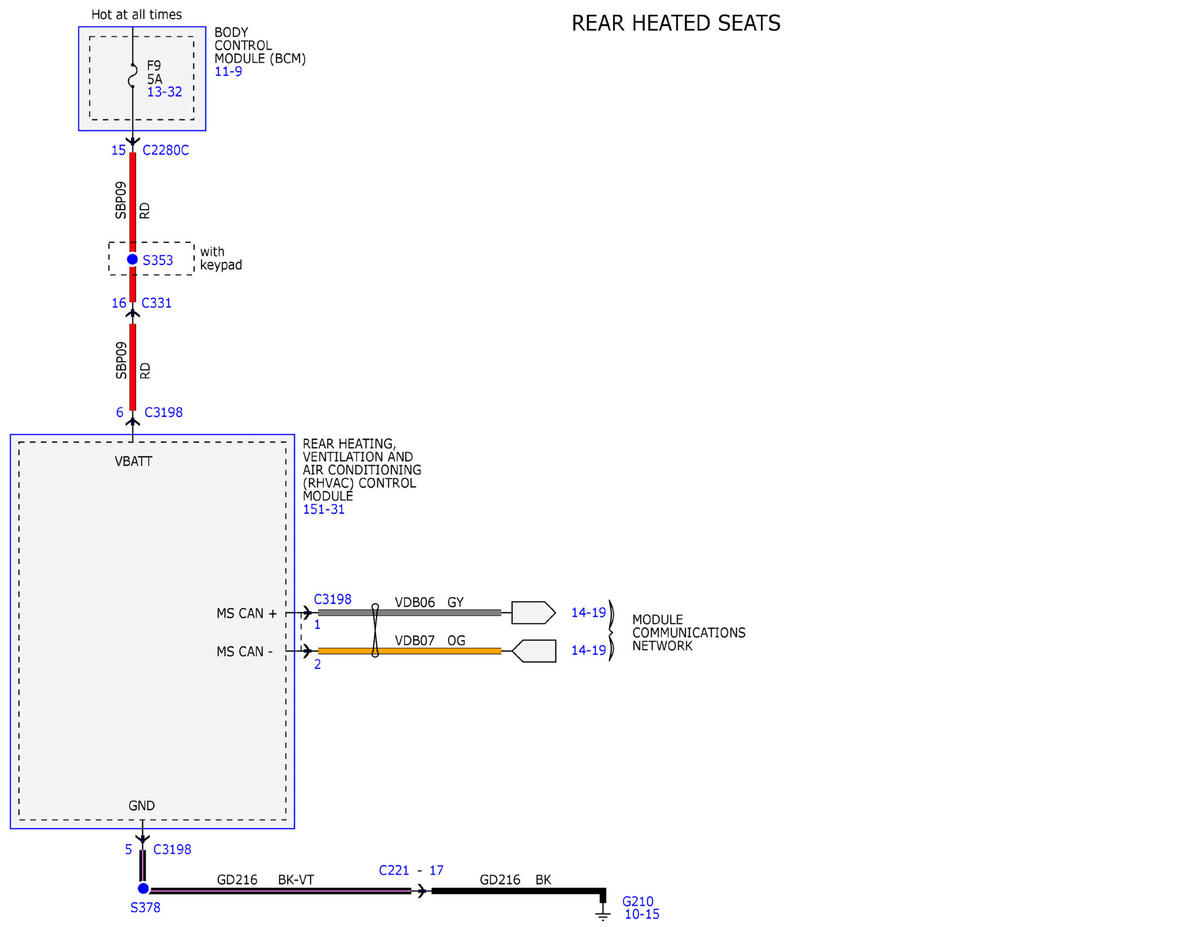

Fig 2: Climate Controlled Seats System Wiring Diagrams (2 Of 13)

Courtesy of FORD MOTOR COMPANY

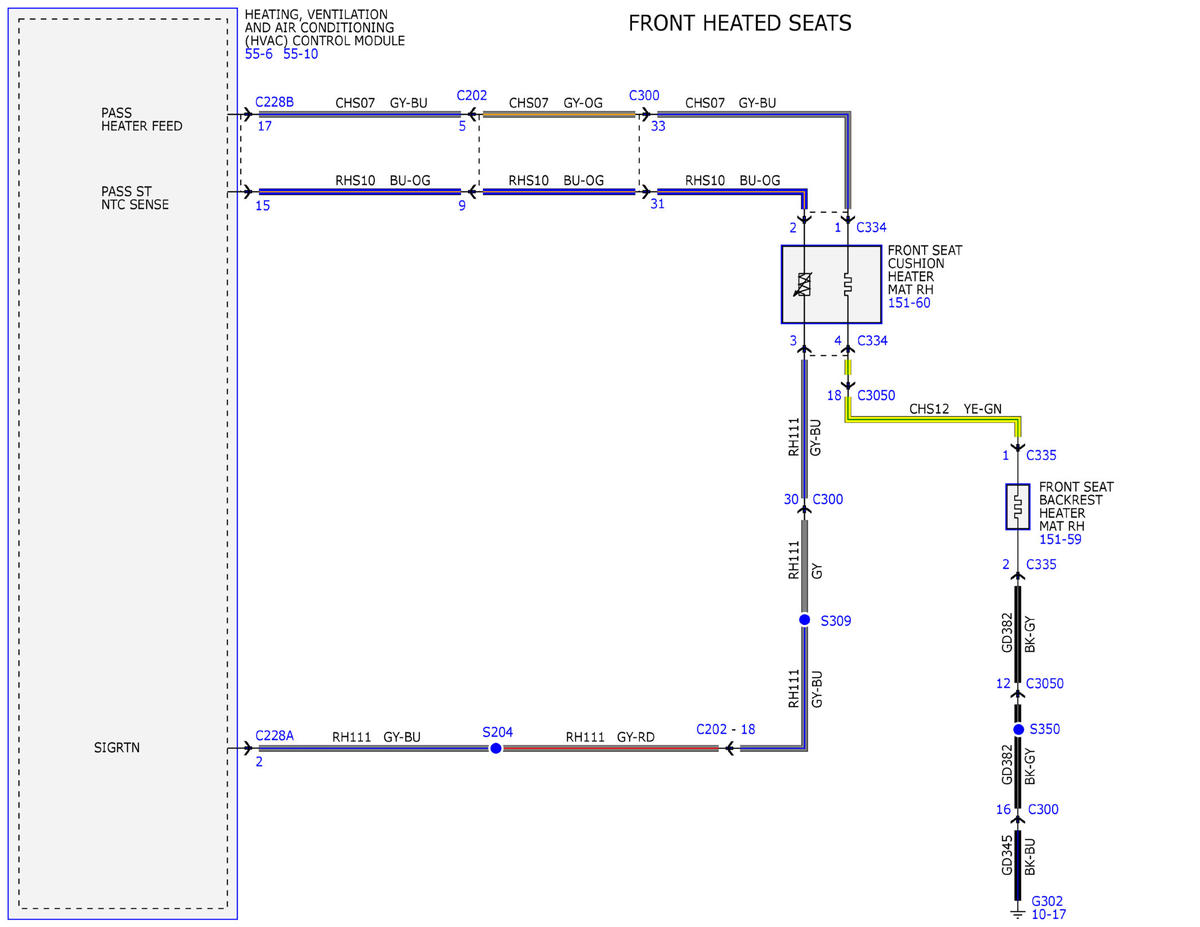

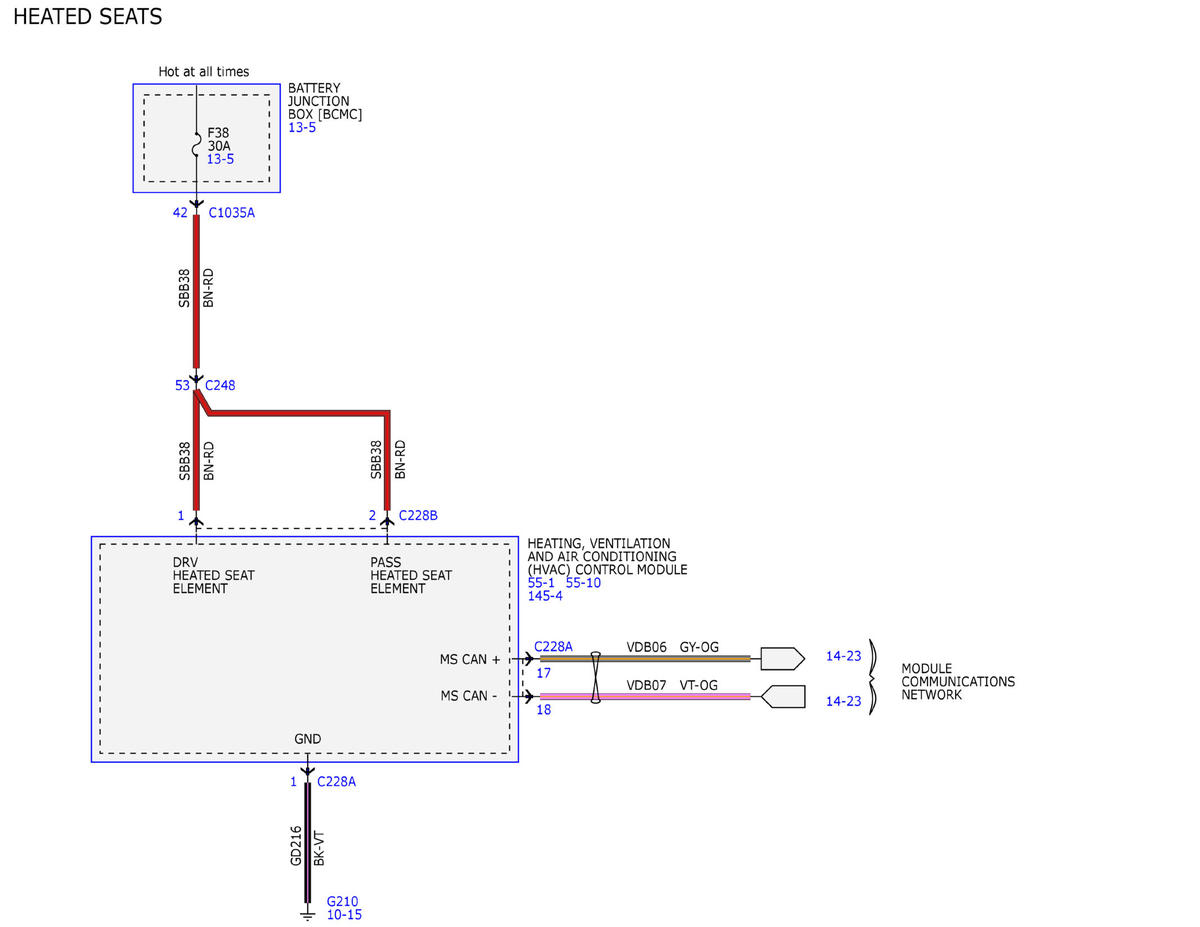

Fig 3: Climate Controlled Seats System Wiring Diagrams (3 Of 13)

Courtesy of FORD MOTOR COMPANY

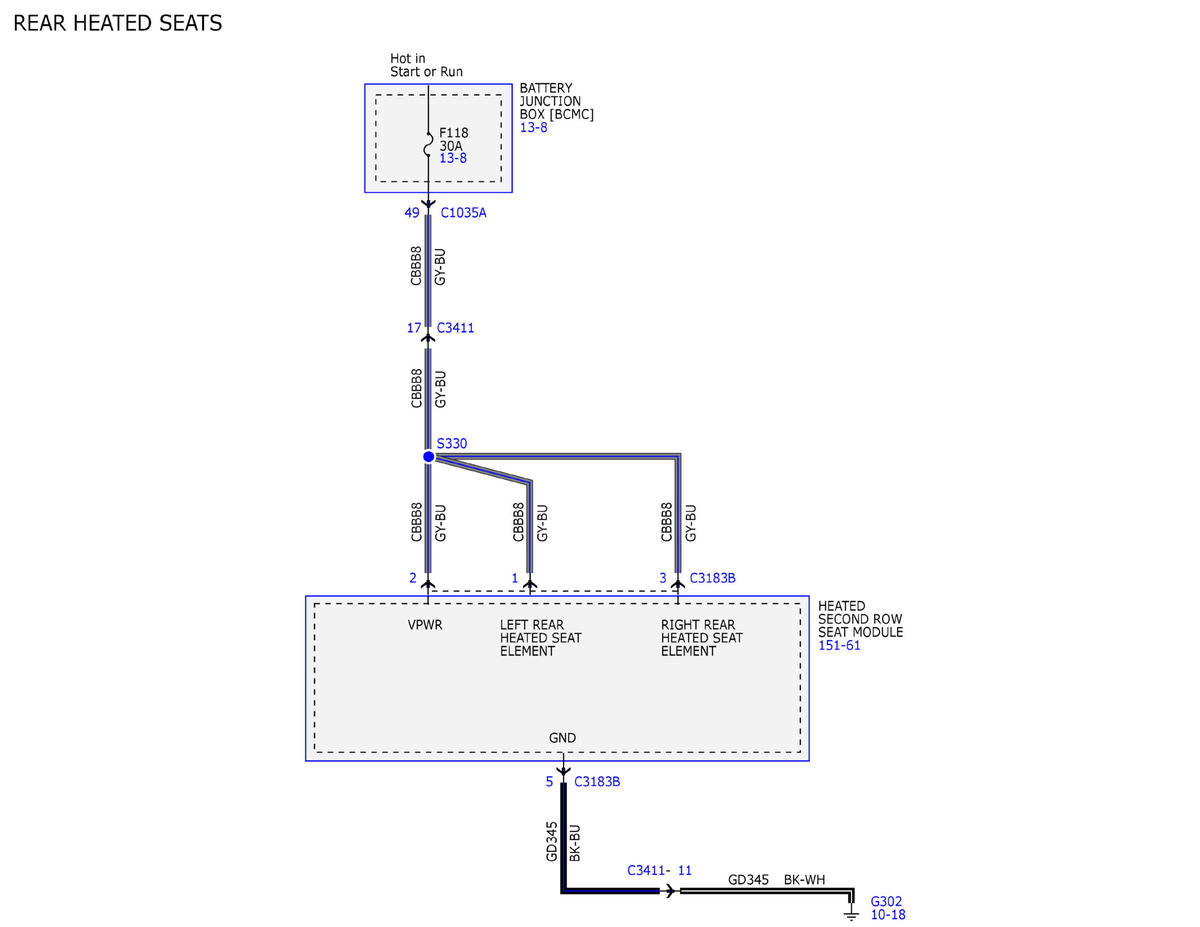

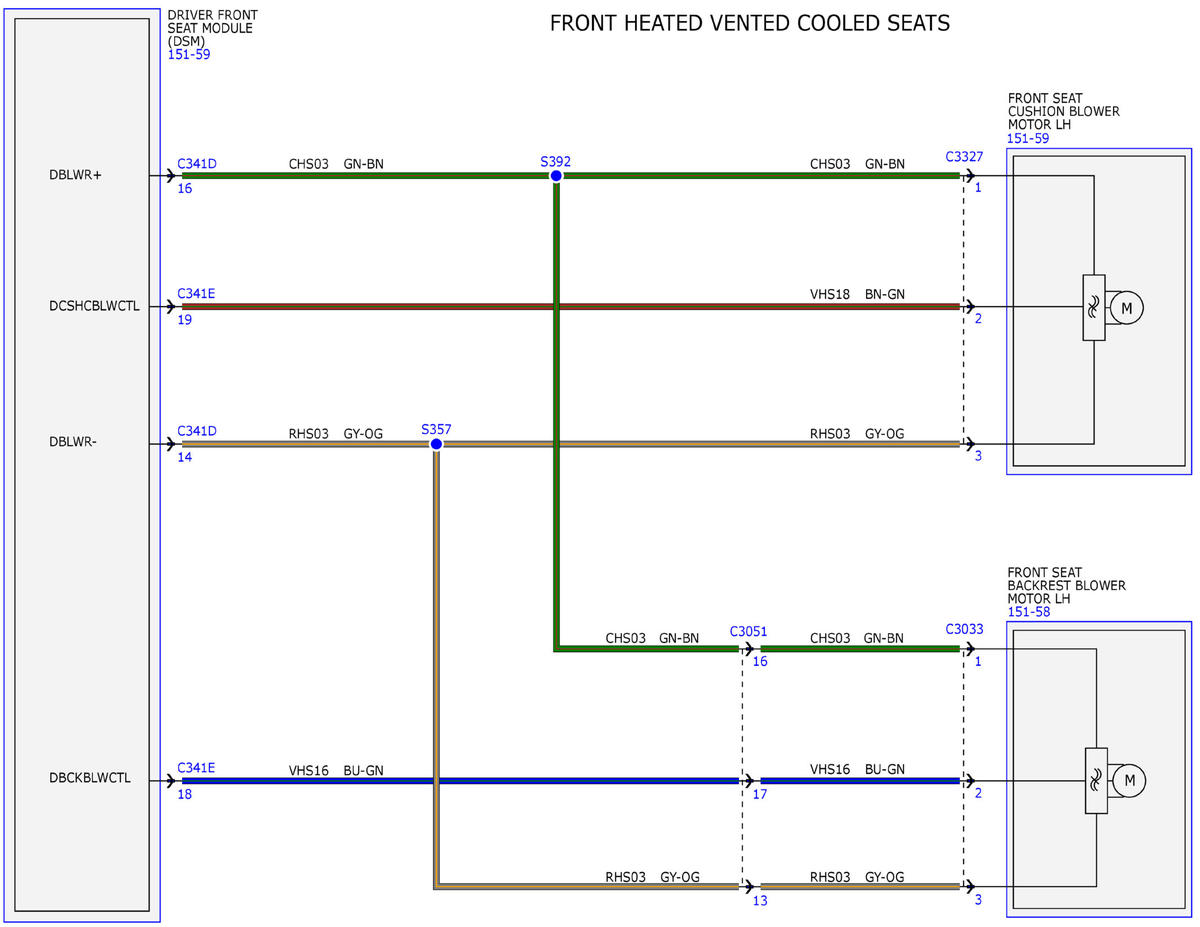

Fig 4: Climate Controlled Seats System Wiring Diagrams (4 Of 13)

Courtesy of FORD MOTOR COMPANY

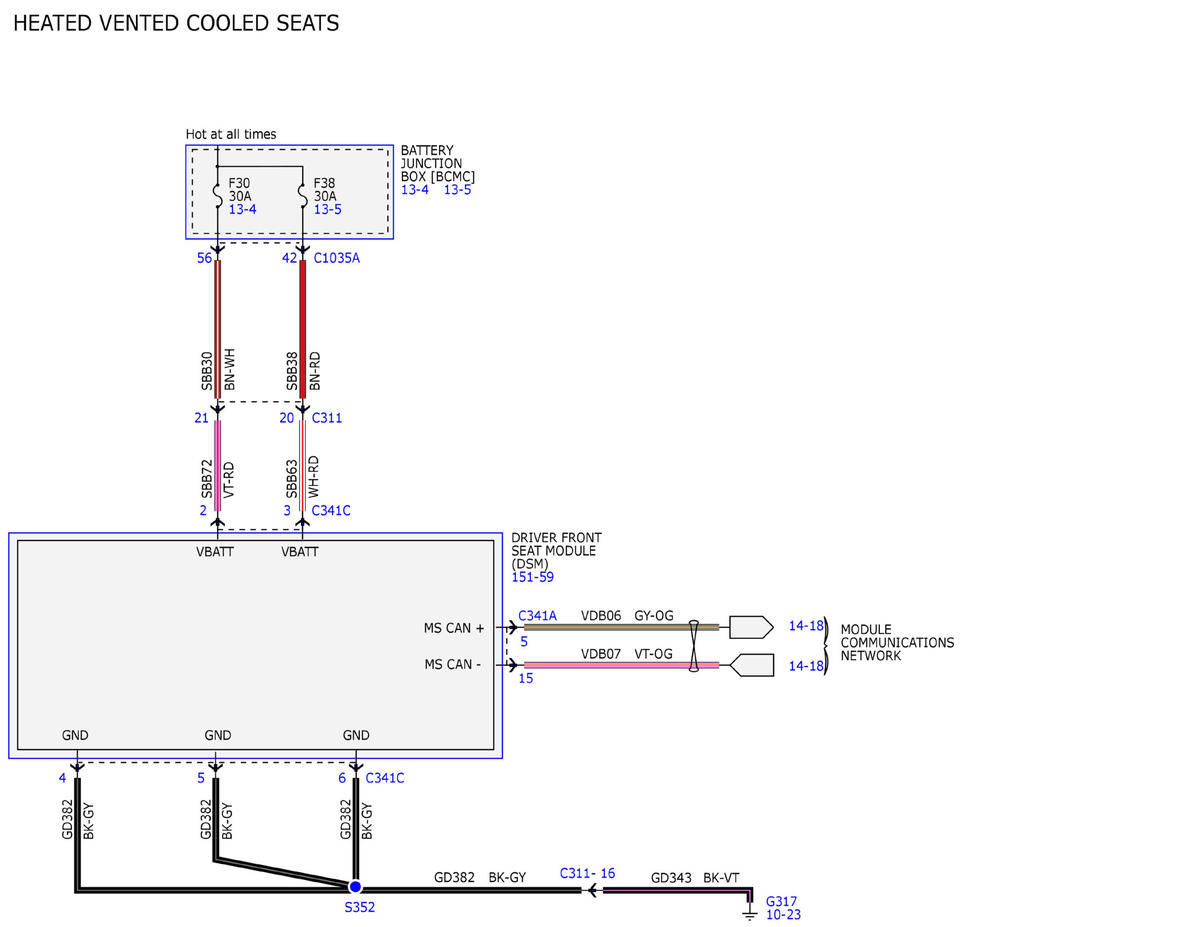

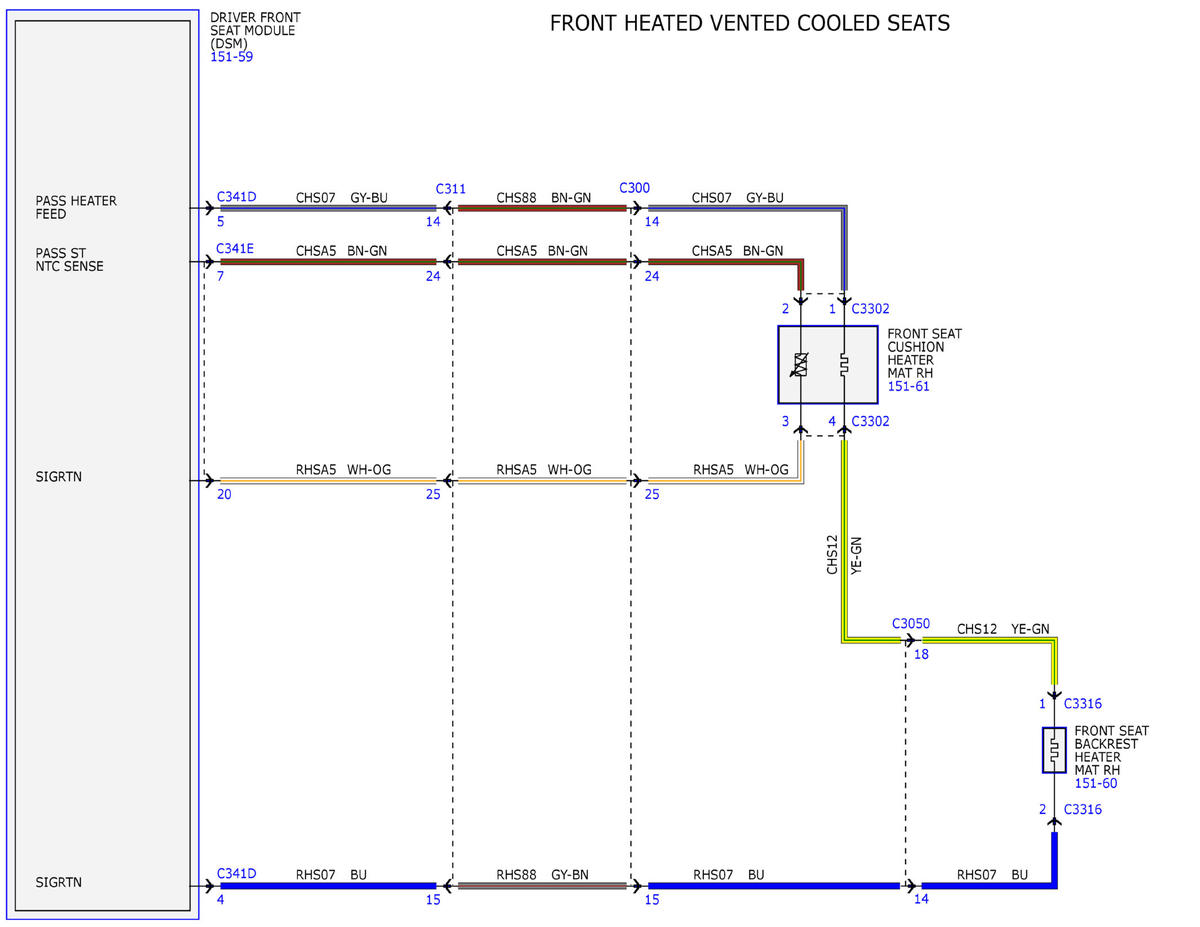

Fig 5: Climate Controlled Seats System Wiring Diagrams (5 Of 13)

Courtesy of FORD MOTOR COMPANY

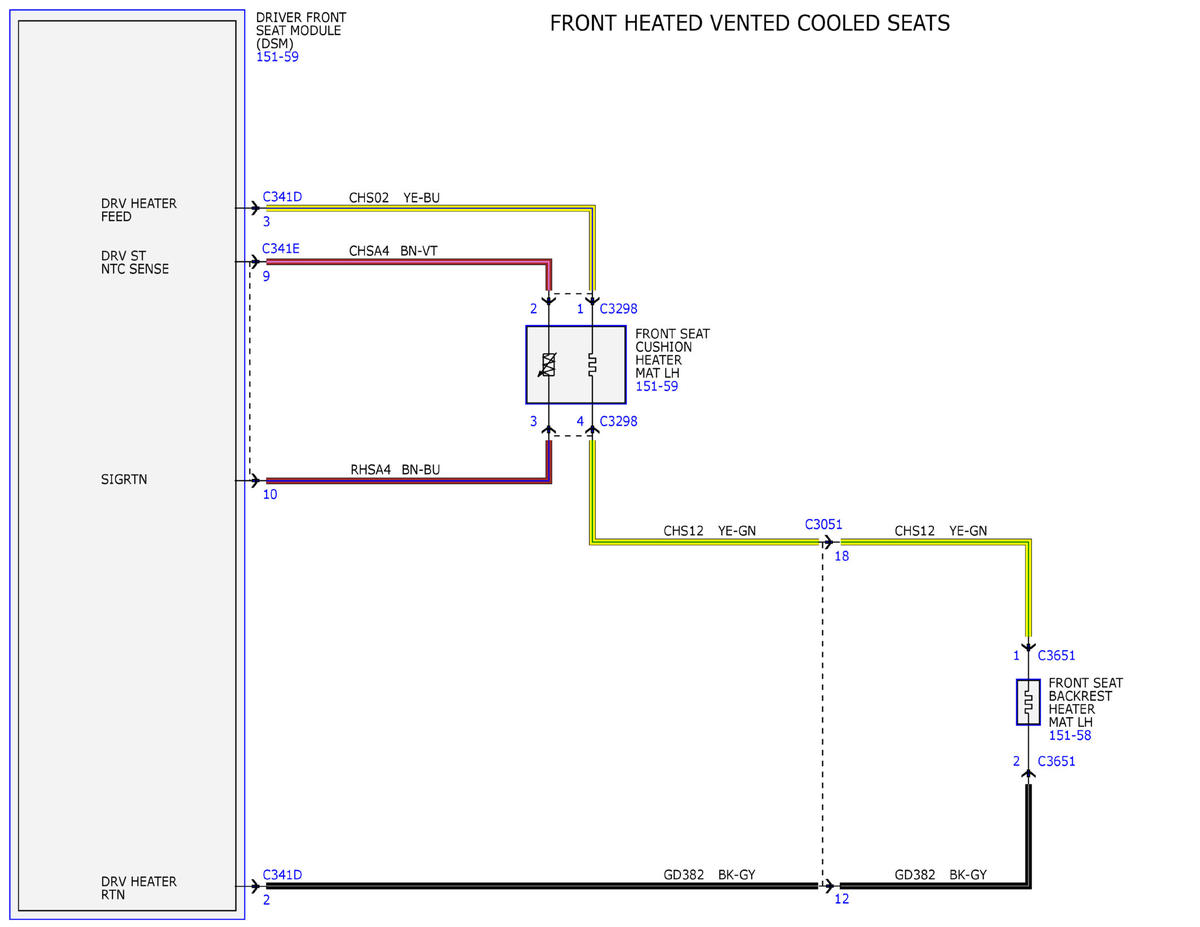

Fig 6: Climate Controlled Seats System Wiring Diagrams (6 Of 13)

Courtesy of FORD MOTOR COMPANY

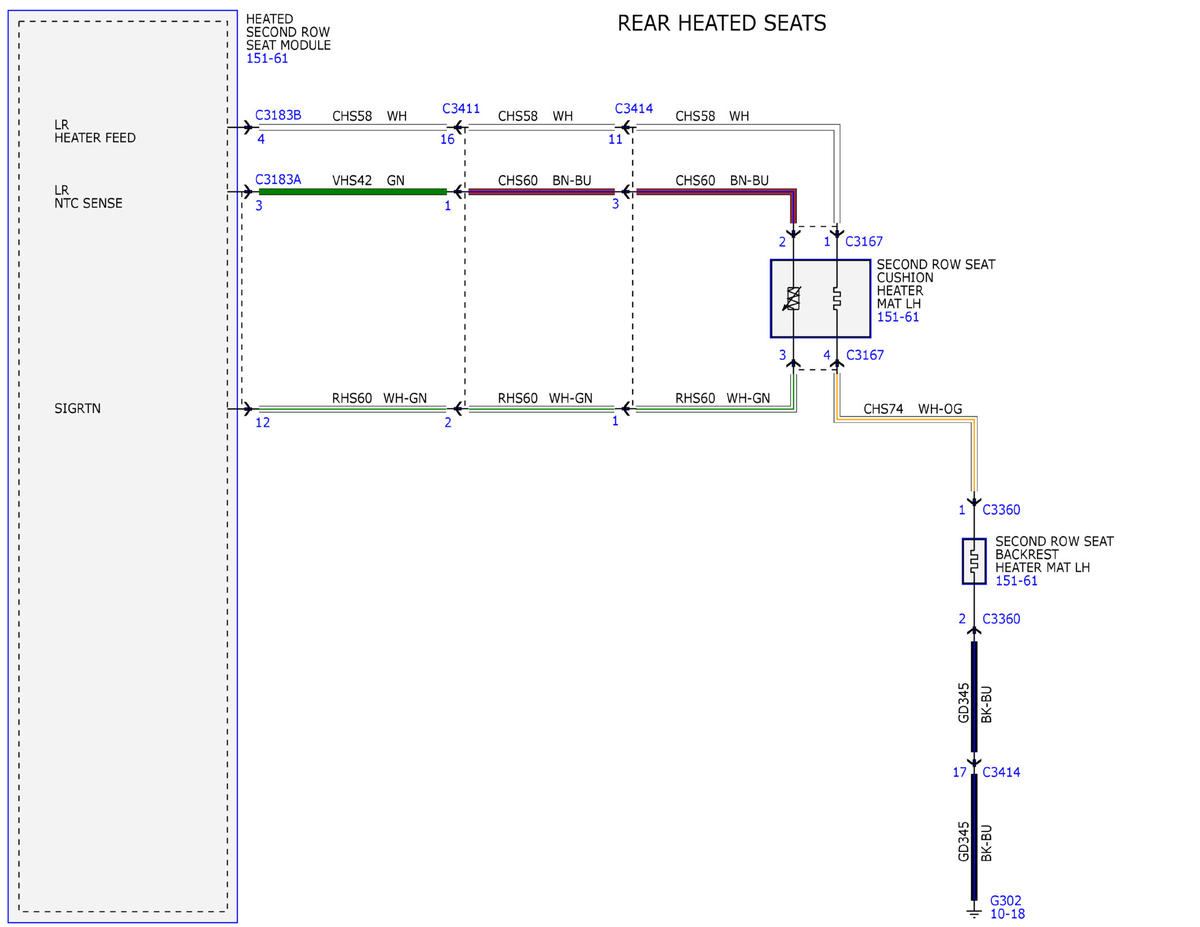

Fig 7: Climate Controlled Seats System Wiring Diagrams (7 Of 13)

Courtesy of FORD MOTOR COMPANY

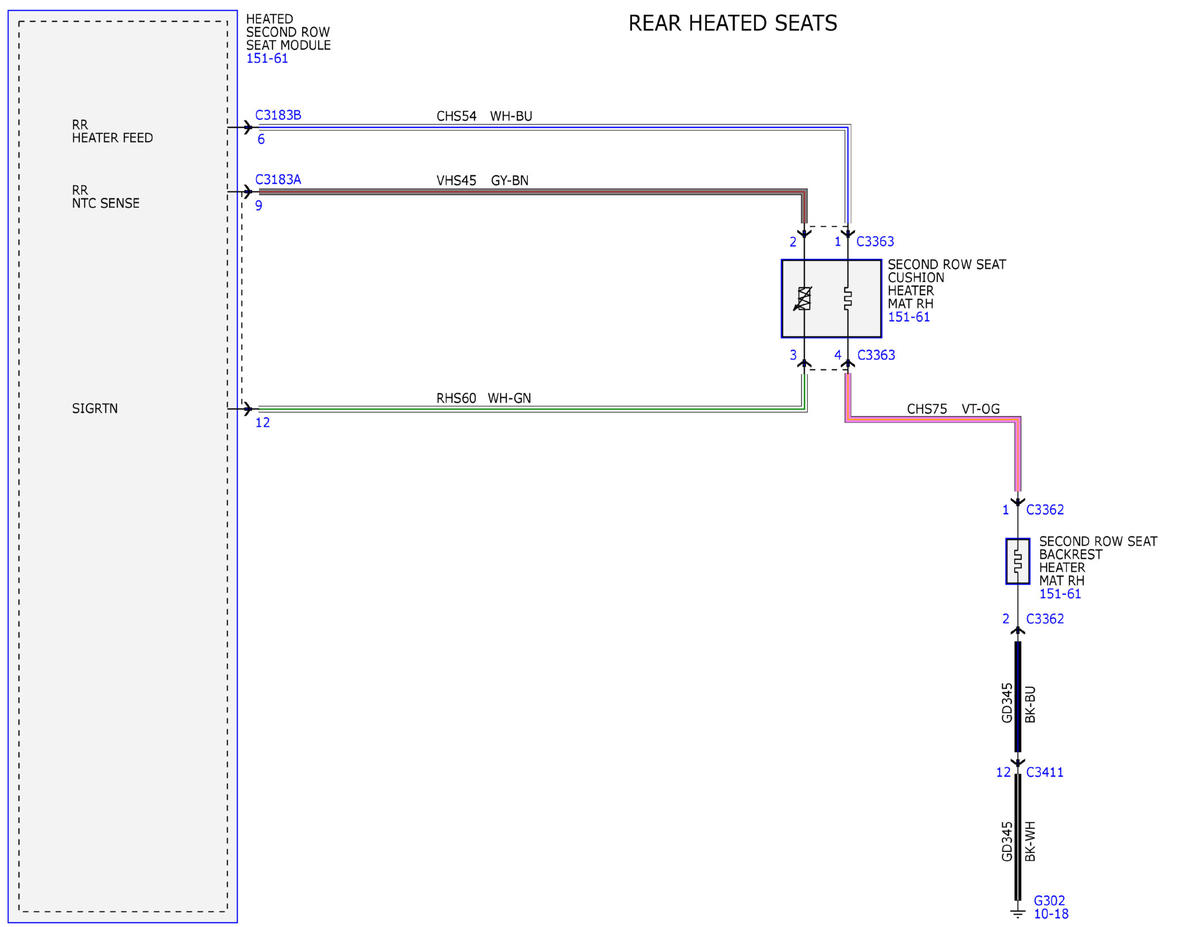

Fig 8: Climate Controlled Seats System Wiring Diagrams (8 Of 13)

Courtesy of FORD MOTOR COMPANY

Fig 9: Climate Controlled Seats System Wiring Diagrams (9 Of 13)

Courtesy of FORD MOTOR COMPANY

Fig 10: Climate Controlled Seats System Wiring Diagrams (10 Of 13)

Courtesy of FORD MOTOR COMPANY

Fig 11: Climate Controlled Seats System Wiring Diagrams (11 Of 13)

Courtesy of FORD MOTOR COMPANY

Fig 12: Climate Controlled Seats System Wiring Diagrams (12 Of 13)

Courtesy of FORD MOTOR COMPANY

Fig 13: Climate Controlled Seats System Wiring Diagrams (13 Of 13)

Courtesy of FORD MOTOR COMPANY
