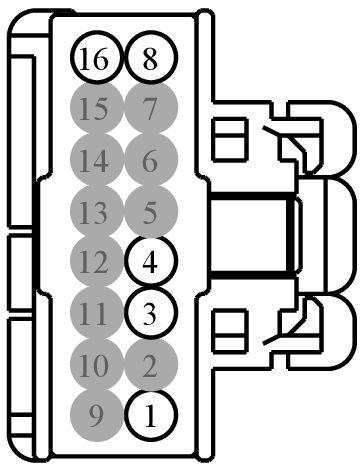

Connector End View (C9012) - AUTO-DIMMING INTERIOR MIRROR
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C9012 | AUTO-DIMMING INTERIOR MIRROR | 14334 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 8U5T-14474-BB | DU2Z-14474-CA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CBP36 (BU-BN) | 22 | FUSE - 36 OR CIRCUIT BREAKER | 8U5T-14474-BB | ||||
| 2 | * | * | Not Used | N/A | ||||
| 3 | CLS10 (GN-BN) | 22 | CTRL MOD. - REVERSE LEFT OR COMMON | 8U5T-14474-BB | ||||
| 3 | CAP05 (WH-OG) | 22 | REVERSE LAMP | 8U5T-14474-BB | ||||
| 4 | GD233 (BK) | 22 | GROUND - COWL SIDE/PILLAR A LEFT | 8U5T-14474-BB | ||||
| 5 | * | * | Not Used | N/A | ||||
| 6 | * | * | Not Used | N/A | ||||
| 7 | * | * | Not Used | N/A | ||||
| 8 | VMP19 (WH-RD) | 22 | CAMERA - CAMERA FRONT VIDEO | 8U5T-14474-BB | ||||
| 9 | * | * | Not Used | N/A | ||||
| 10 | * | * | Not Used | N/A | ||||
| 11 | * | * | Not Used | N/A | ||||
| 12 | * | * | Not Used | N/A | ||||
| 13 | * | * | Not Used | N/A | ||||
| 14 | * | * | Not Used | N/A | ||||
| 15 | * | * | Not Used | N/A | ||||
| 16 | RMP19 (BU) | 22 | CAMERA - PARKING AID REAR VIDEO - | 8U5T-14474-BB | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1294
Service Part Number:
CU2Z-14S411-AJA
Gauge:
18
Pin material:
Silver
Cavities:
16
Vehicle Uses:
- Mirror - Rearview
- Mirror - Rearview (electrochromatic)
