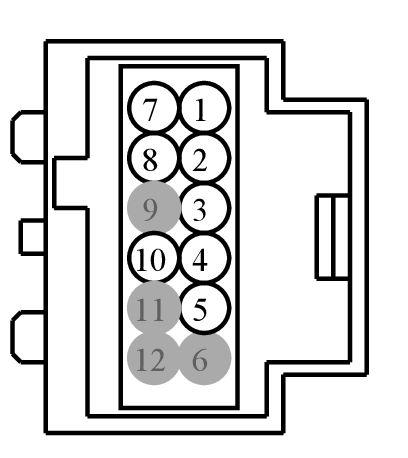

Connector End View (C4488) - LIFTGATE APPLIQUE
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C4488 | LIFTGATE APPLIQUE | 14B562 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| DU5T-14421-CB | EU2Z-14421-AA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CBB25 (WH-OG) | 22 | FUSE - 25 OR CIRCUIT BREAKER | DU5T-14421-CB | ||||
| 2 | RMP19 (BU-GY) | 22 | CAMERA - PARKING AID REAR VIDEO - | DU5T-14421-CB | ||||
| 3 | VMP19 (WH-GN) | 22 | CAMERA - CAMERA FRONT VIDEO | DU5T-14421-CB | ||||
| 4 | DMP19 (BK) | 22 | SHIELD | DU5T-14421-CB | ||||
| 5 | VDN04 (VT-WH) | 22 | CTRL MOD. - LIN BUS # 4 | DU5T-14421-CB | ||||
| 6 | * | * | Not Used | N/A | ||||
| 7 | CLS05 (BU-RD) | 22 | CTRL MOD. - PARK | DU5T-14421-CB | ||||
| 8 | CPL45 (BN) | 22 | SWITCH - LIFTGATE/DECKLID RELEASE | DU5T-14421-CB | ||||
| 9 | * | * | Not Used | N/A | ||||
| 10 | GD351 (BK-GN) | 22 | GROUND - PILLAR D RIGHT | DU5T-14421-CB | ||||
| 11 | * | * | Not Used | N/A | ||||
| 12 | * | * | Not Used | N/A | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1185
Service Part Number:
BU2Z-14S411-AJA
Gauge:
18
Pin material:
Tin (greased)
Cavities:
12
Vehicle Uses:
- Camera - Reverse Park Aid
- Switch - Gear Shift Select/Neutral Safety
