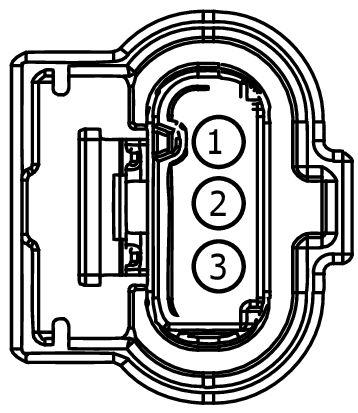

Connector End View (C4420) - REAR ACTIVE PARK ASSIST SENSOR LH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C4420	REAR ACTIVE PARK ASSIST SENSOR LH	14N139			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
LU5T-14474-VA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	LMP07 (BU-WH)	22	CTRL MOD. - PARKING AID # SENSORS REAR +	LU5T-14474-VA
2	VMP29 (GN-OG)	22	SENSOR - PARKING AID # ACTIVE PARK ASSIST (AUTOPARK) REAR LEFT SIDE	LU5T-14474-VA
3	RMP07 (GN-WH)	22	CTRL MOD. - PARKING AID # SENSORS REAR -	LU5T-14474-VA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1492

Courtesy of FORD MOTOR COMPANY

Service Part Number:

HU2Z-14S411-BA

Gauge:

18

Pin material:

Silver

Cavities:

3

Vehicle Uses:

• Coil - Ignition
• Monitor - Crankcase Ventilation
• Motor - Intercooler Pump
• Sensor - Cam Shaft Position
• Sensor - Crank Shaft Position
• Sensor - Delta Pressure Feedback EGR
• Sensor - Exhaust Gas Pressure
• Sensor - Intake Manifold Runner Control
• Sensor - Manifold Absolute Pressure (MAP)
• Sensor - Oil Pressure
