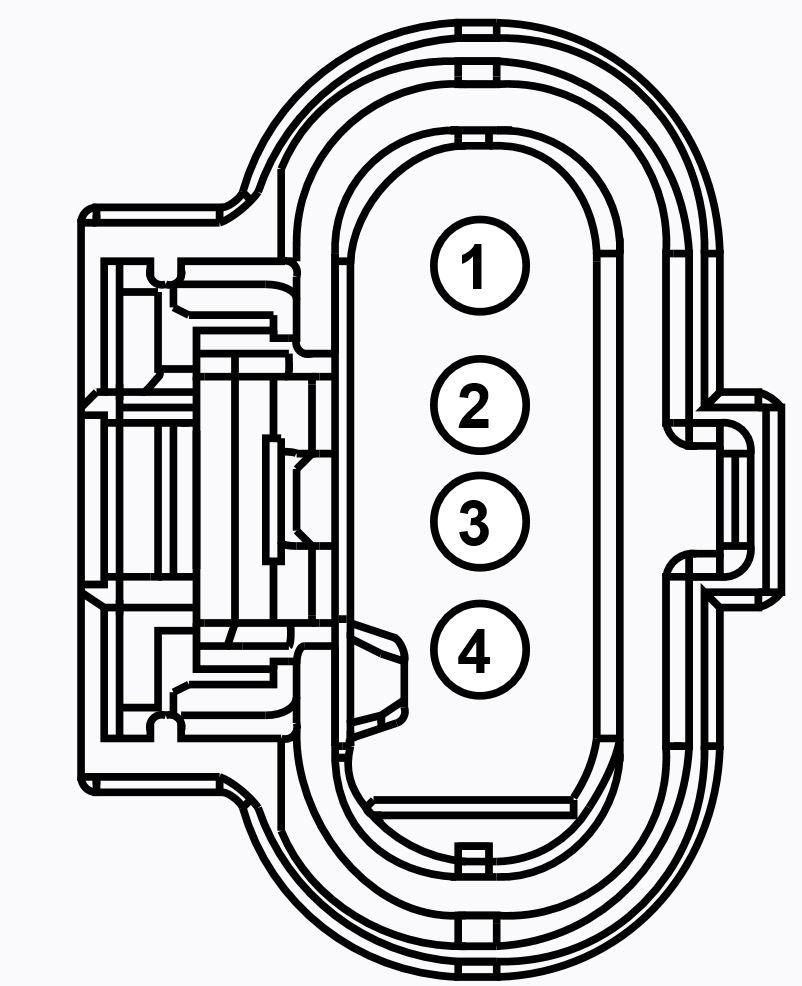

Connector End View (C4089) - FUEL FILLER DOOR LATCH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
	C4089	Fuel Filler Door Latch	9B243	Part# N/A	See Below

Terminal Part Number	Service Part Number	Size
LU5T-14474-VA	Not Available
EU5T-14474-EAB	KU2Z-14474-CA	1.20

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
	1	CBK02 (GN)	18	FUSE - 8 OR CIRCUIT BREAKER (VPWR 2)	EU5T-14474-EAB
	2	RE407 (YE-VT)	22	CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C)	LU5T-14474-VA
	3	CE204 (WH-BU)	22	CTRL MOD. - POWERTRAIN # FUEL CAP OFF INDICATOR LAMP (FCIL)	LU5T-14474-VA
4	CE622 (BU-OG)	18	RELAY - REFUELING CONTROL	EU5T-14474-EAB

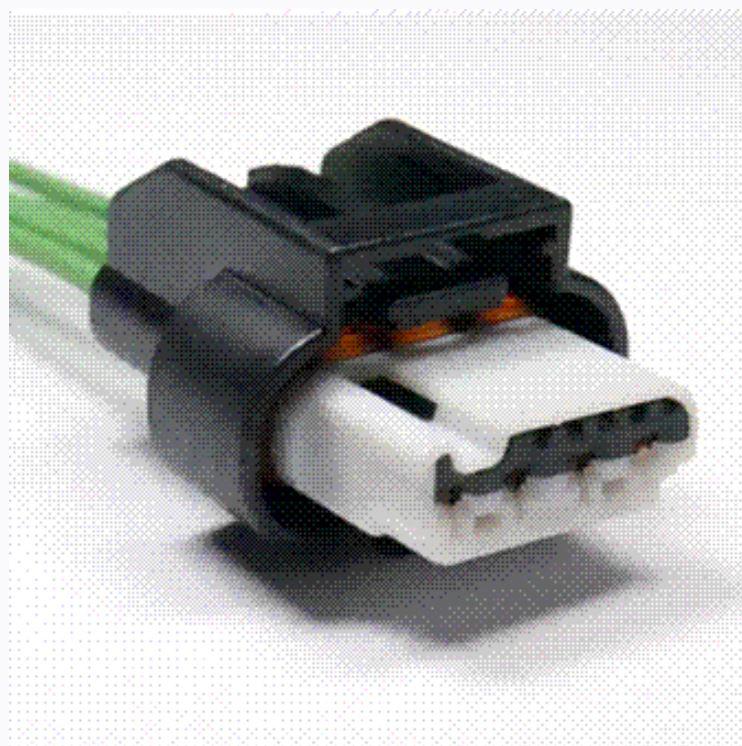

Available Pigtail Kits

Pigtail Kit Part Number WPT-1537

Courtesy of FORD MOTOR COMPANY

Service Part Number:

JU2Z-14S411-ACA

Gauge:

18

Pin material:

Silver

Cavities:

4

Vehicle Uses:

• Module - Differential Oil Temperature
• Module - Particulate Matter Bank Sensor
• Module - Reductant Quality
• Noise Generator
• Sensor - Fuel Rail Pressure and Temperature
• Sensor - Manifold Pressure/Intake Temperature
• Sensor - Turbo Intake Pressure/Temperature
• Valve - Active Exhaust Solenoid
