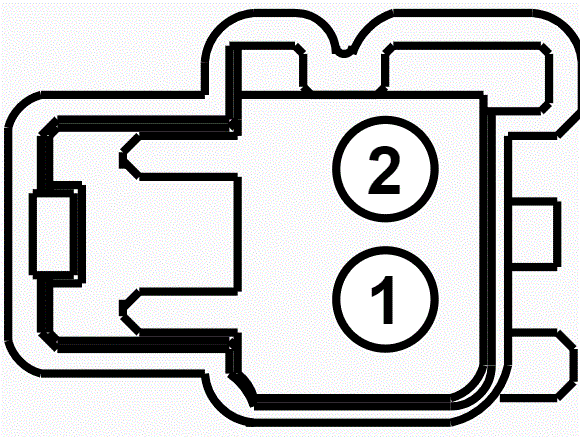

Connector End View (C3360) - SECOND ROW SEAT BACKREST HEATER MAT LH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3360	SECOND ROW SEAT BACKREST HEATER MAT LH	14B687			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
97BG-14421-AAB	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CHS74 (WH-OG)	20	HEATER - SEAT REAR LEFT CUSHION/BACK	97BG-14421-AAB
2	GD345 (BK-BU)	20	GROUND - PILLAR B RIGHT	97BG-14421-AAB

Available Pigtail Kits

Pigtail Kit Part Number WPT-1078

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-LAB

Gauge:

14

Pin material:

Tin (greased)

Cavities:

2

Vehicle Uses:

• Connector - Inline
• Element - Heated Seat
• Lamp - PRNDL Indicator
• Speaker - Front
• Switch - Seat Lumbar
