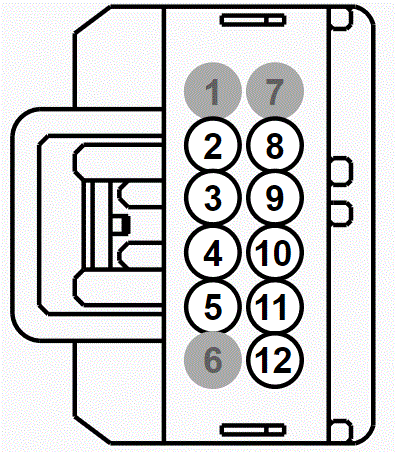

Connector End View (C3183A) - HEATED SECOND ROW SEAT MODULE
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C3183A | HEATED SECOND ROW SEAT MODULE | 14B686 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 3F2T-14474-SA | DU2Z-14474-BA | 0.64 |
| 9U5T-14474-MA | DU2Z-14474-BA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | * | * | Not Used | N/A | ||||
| 2 | CHS31 (YE-OG) | 22 | SWITCH - SEAT HEATER REAR COMMON OR LEFT | 3F2T-14474-SA | ||||
| 3 | VHS42 (GN) | 22 | SENSOR - CUSHION TEMP REAR LEFT | 3F2T-14474-SA | ||||
| 4 | CHS49 (GN-BU) | 22 | CTRL MOD. - HOT/COLD SEAT # REAR LEFT INDICATOR LOW | 3F2T-14474-SA | ||||
| 5 | CHS48 (YE) | 22 | CTRL MOD. - HOT/COLD SEAT # REAR LEFT INDICATOR HIGH | 3F2T-14474-SA | ||||
| 6 | * | * | Not Used | N/A | ||||
| 7 | * | * | Not Used | N/A | ||||
| 8 | CHS80 (BU-OG) | 22 | SWITCH - SEAT HEATER REAR RIGHT | 3F2T-14474-SA | ||||
| 9 | VHS45 (GY-BN) | 22 | SENSOR - CUSHION TEMP REAR LEFT | 3F2T-14474-SA | ||||
| 10 | CHS53 (WH-BN) | 22 | CTRL MOD. - HOT/COLD SEAT # REAR RIGHT INDICATOR LOW | 3F2T-14474-SA | ||||
| 11 | CHS52 (BU) | 22 | CTRL MOD. - HOT/COLD SEAT # REAR RIGHT INDICATOR HIGH | 3F2T-14474-SA | ||||
| 12 | RHS60 (WH-GN) | 22 | SENSOR - RETURN | 9U5T-14474-MA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-930
Service Part Number:
9U2Z-14S411-DA
Gauge:
18
Pin material:
Silver
Cavities:
12
Vehicle Uses:
- Module - Climate Control Seat
- Module - Heated Seat (Rear)
