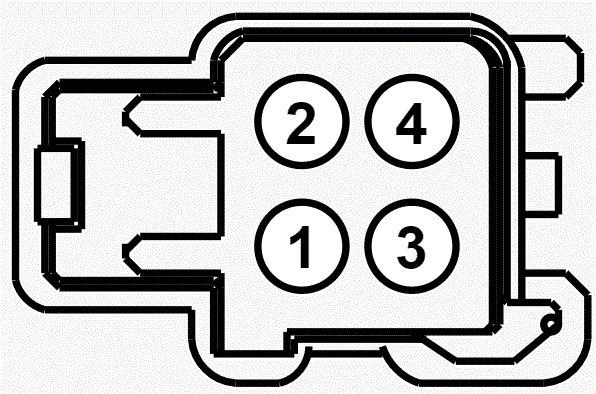

Connector End View (C3167) - SECOND ROW SEAT CUSHION HEATER MAT LH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3167	SECOND ROW SEAT CUSHION HEATER MAT LH	14B687			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
97BG-14421-AAB	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CHS58 (WH)	20	CTRL MOD. - REAR HEATED SEAT LEFT # CUSHION HEATER +	97BG-14421-AAB
2	CHS60 (BN-BU)	22	CTRL MOD. - REAR HEATED SEAT LEFT # THERMISTOR	97BG-14421-AAB
3	RHS60 (WH-GN)	22	SENSOR - RETURN	97BG-14421-AAB
4	CHS74 (WH-OG)	20	HEATER - SEAT REAR LEFT CUSHION/BACK	97BG-14421-AAB

Available Pigtail Kits

Pigtail Kit Part Number WPT-1076

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-BUB

Gauge:

14

Pin material:

Tin (greased)

Cavities:

4

Vehicle Uses:

• Connector - Inline
• Element - Heated Seat
• Lamp - Ash Tray
• Lamp - Courtesy - Footwell
• Module - Remote Keyless Entry
• Motor - Heater/AC Blower (Auxiliary)
• Radio - Amplifier
• Switch - Convertable Top
