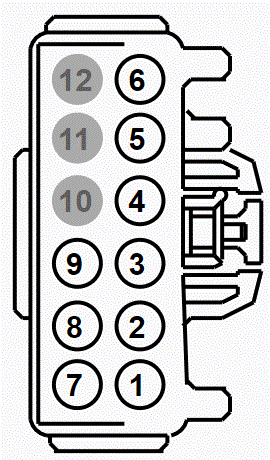

Connector End View (C2498C) - TRAILER MODULE (TRM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2498C	TRAILER MODULE (TRM)	14A005			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
97BG-14474-BBA|97BG-14474-BCA	Not Available
97BG-14474-BAA	DU2Z-14474-EA	2.8
97BG-14474-BCA	DU2Z-14474-EA	2.8

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CAT06 (YE)	16	CTRL MOD. - TRAILER TOW # TURN SIGNAL LEFT	97BG-14474-BBA|97BG-14474-BCA
1	CAT06 (YE)	14	CTRL MOD. - TRAILER TOW # TURN SIGNAL LEFT	97BG-14474-BBA|97BG-14474-BCA
2	CAP14 (GY-BN)	22	POLICE - BUTTON FUNCTION 1	Police	97BG-14474-BAA
2	CAT09 (GN)	14	CTRL MOD. - TRAILER TOW # TURN SIGNAL RIGHT	97BG-14474-BCA
3	CAT14 (OG)	12	RELAY - TRAILER TOW BATTERY CHARGING	97BG-14474-BCA
3	CAT20 (BN)	14	CTRL MOD. - TRAILER TOW # PARK LAMPS LEFT	97BG-14474-BCA
4	CAP15 (WH-VT)	22	POLICE - BUTTON FUNCTION 2	Police	97BG-14474-BAA
5	CAP16 (GN-BN)	22	POLICE - BUTTON FUNCTION 3	Police	97BG-14474-BAA
5	CAT03 (GY-BN)	14	CTRL MOD. - TRAILER TOW # BACKUP LAMPS	97BG-14474-BCA
6	GD382 (BK-GY)	22	GROUND - CROSS MEMBER MIDDLE DRIVER OR LEFT	97BG-14474-BAA
6	CAT14 (GY-YE)	12	RELAY - TRAILER TOW BATTERY CHARGING	97BG-14474-BCA
7	CAP17 (YE-GY)	22	POLICE - BUTTON FUNCTION 4	Police	97BG-14474-BAA
7	CAT10 (RD)	14	CTRL MOD. - TRAILER TOW # STOP LAMPS INDEPENDENT (COLOR TO SAE 1239)	97BG-14474-BCA
8	CAT09 (GN)	16	CTRL MOD. - TRAILER TOW # TURN SIGNAL RIGHT	97BG-14474-BBA|97BG-14474-BCA
8	CAT07 (GY-OG)	14	CTRL MOD. - TRAILER TOW # REAR FOG LAMP	97BG-14474-BBA|97BG-14474-BCA
9	CAP05 (WH-OG)	22	REVERSE LAMP	Police	97BG-14474-BAA
10	*	*	Not Used	N/A
11	*	*	Not Used	N/A
12	*	*	Not Used	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-396

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-BKA

Gauge:

12

Pin material:

Tin

Cavities:

12

Vehicle Uses:

• Module - Liftgate
• Switch - Headlamp
• Switch - Seat (driver)
• Switch - Seat (passenger)
