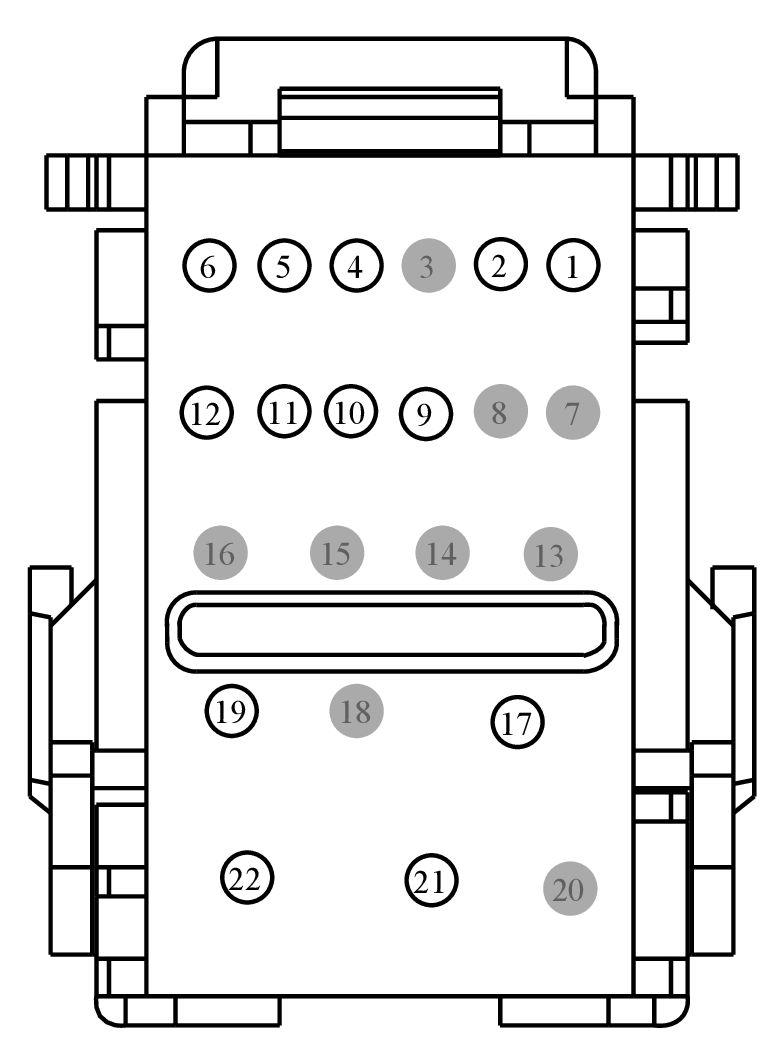

Connector End View (C2280G) - BODY CONTROL MODULE (BCM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2280G	BODY CONTROL MODULE (BCM)	14A005			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
7C3T-14474-DA|EU5T-14474-EA	Not Available
BU5T-14474-UA	DU2Z-14474-DA	1.5
7C3T-14474-EA	DU2Z-14474-DA	1.5

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CDC35 (BU-WH)	22	SWITCH - IGNITION # RUN; START	BU5T-14474-UA
2	CLF05 (BU-GN)	14	CTRL MOD. - BEAM LOW RIGHT	7C3T-14474-EA
3	*	*	Not Used	N/A
4	CLF04 (BN-BU)	14	CTRL MOD. - BEAM LOW LEFT	7C3T-14474-EA
5	CLF34 (YE-OG)	18	CTRL MOD. - FOG LAMPS FRONT RIGHT OR COMMON	7C3T-14474-DA
6	CLF03 (VT-OG)	14	CTRL MOD. - BEAM HIGH RIGHT	7C3T-14474-EA
7	*	*	Not Used	N/A
8	*	*	Not Used	N/A
9	VDB05 (WH)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW	7C3T-14474-DA
10	VDB04 (BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH	7C3T-14474-DA
11	CLF02 (GY-BN)	14	CTRL MOD. - BEAM HIGH LEFT	7C3T-14474-EA
12	CLF29 (BN)	18	CTRL MOD. - FOG LAMPS FRONT	7C3T-14474-DA
13	*	*	Not Used	N/A
14	*	*	Not Used	N/A
15	*	*	Not Used	N/A
16	*	*	Not Used	N/A
17	SBBB1 (WH-RD)	8	FUSE - 111 OR CIRCUIT BREAKER	YF1T-14474-BA
18	*	*	Not Used	N/A
19	CLS10 (GN-BN)	22	CTRL MOD. - REVERSE LEFT OR COMMON	7C3T-14474-DA|EU5T-14474-EA
20	*	*	Not Used	N/A
21	SBB03 (BU-RD)	8	FUSE - 3 OR CIRCUIT BREAKER	YF1T-14474-BA
22	SBB01 (RD)	8	FUSE - 1 OR CIRCUIT BREAKER	YF1T-14474-BA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1636

Service Part Number:

LU2Z-14S411-KA

Gauge:

12 14 16

Pin material:

Tin & Silver

Cavities:

22

Vehicle Uses:

• Module - Body Control
