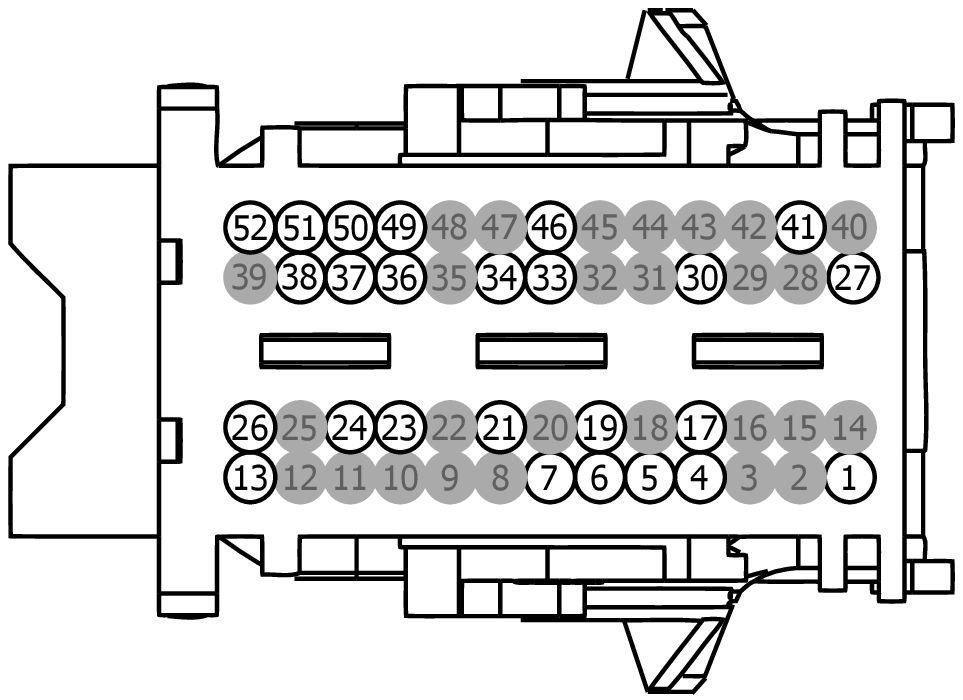

Connector End View (C2280E) - BODY CONTROL MODULE (BCM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2280E	BODY CONTROL MODULE (BCM)	14A005			part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
9U5T-14474-DB	DU2Z-14474-AA	0.64
9U5T-14474-YB	DU2Z-14474-AA	0.64
9U5T-14474-EB	DU2Z-14474-AA	0.64
FU5T-14474-LB	DU2Z-14474-AA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CPL45 (BN)	22	SWITCH - LIFTGATE/DECKLID RELEASE	9U5T-14474-DB
2	*	*	Not Used	N/A
3	*	*	Not Used	N/A
4	CPL43 (VT-GY)	22	SWITCH - TRIM DOOR LOCK (DRIVER) # UNLOCK	9U5T-14474-DB
5	CPW01 (BN-BU)	22	CTRL MOD. - POWER WINDOW GLOBAL SET +	9U5T-14474-DB
6	CR195 (YE-BU)	22	CTRL MOD. - EXTENDED POWER # OCCUPANT CLASSIFICATION MODULE POWER	9U5T-14474-DB
7	CR194 (WH)	26	POWER - RESTRAINTS CONTROL MODULE (RCM)	9U5T-14474-YB
8	*	*	Not Used	N/A
9	*	*	Not Used	N/A
10	*	*	Not Used	N/A
11	*	*	Not Used	N/A
12	*	*	Not Used	N/A
13	CLS17 (YE-GY)	22	CTRL MOD. - STOP HIGH MOUNT	9U5T-14474-DB
14	*	*	Not Used	N/A
15	*	*	Not Used	N/A
16	*	*	Not Used	N/A
17	CPL42 (YE)	26	SWITCH - TRIM DOOR LOCK (DRIVER) # LOCK	9U5T-14474-YB
18	*	*	Not Used	N/A
19	CPL39 (YE)	26	SWITCH - LATCH REAR PASSENGER SIDE # AJAR (INCL.SLIDING DOOR)	9U5T-14474-YB
20	*	*	Not Used	N/A
21	CPL31 (WH)	26	SWITCH - LATCH PASSENGER # AJAR	9U5T-14474-YB
22	*	*	Not Used	N/A
23	CLS53 (GY-VT)	18	CTRL MOD. - STOP/TURN RIGHT OUTBOARD	9U5T-14474-EB
24	CLS51 (WH-GN)	18	CTRL MOD. - STOP/TURN LEFT OUTBOARD	9U5T-14474-EB
25	*	*	Not Used	N/A
26	CLS23 (GY-OG)	22	CTRL MOD. - TURN LAMP LEFT REAR	9U5T-14474-DB
27	CRT18 (YE-RD)	20	SWITCH - ANTI THEFT INHIBIT # LIFTGATE/DECKLID	9U5T-14474-DB
28	*	*	Not Used	N/A
29	*	*	Not Used	N/A
30	CPL29 (YE)	26	SWITCH - LATCH DRIVER # SET	9U5T-14474-YB
31	*	*	Not Used	N/A
32	*	*	Not Used	N/A
33	CPL26 (GN)	26	SWITCH - LATCH DRIVER # AJAR	FU5T-14474-LB
34	CPL44 (YE)	26	SWITCH - LIFTGATE/DECKLID/CARGO # AJAR	9U5T-14474-YB
35	*	*	Not Used	N/A
36	VDN03 (GY-VT)	22	CTRL MOD. - LIN BUS # 3	9U5T-14474-DB
37	VDN04 (WH)	26	CTRL MOD. - LIN BUS # 4	FU5T-14474-LB
38	VDN13 (BN)	26	CTRL MOD. - LIN BUS # 13	9U5T-14474-YB
39	*	*	Not Used	N/A
40	*	*	Not Used	N/A
41	VMC05 (VT-OG)	22	CTRL MOD. - VEHICLE SPEED OUTPUT (VSOUT)	9U5T-14474-DB
42	*	*	Not Used	N/A
43	*	*	Not Used	N/A
44	*	*	Not Used	N/A
45	*	*	Not Used	N/A
46	CPL36 (GN)	22	SWITCH - LATCH REAR DRIVER SIDE # AJAR (INCL.SLIDING DOOR)	9U5T-14474-DB
47	*	*	Not Used	N/A
48	*	*	Not Used	N/A
49	CR167 (YE)	26	CTRL MOD. - FUEL SHUTOFF EVENT NOTIFICATION SIGNAL (ENS)	9U5T-14474-YB
50	VDN20 (BN)	26	CTRL MOD. - LIN BUS # 20	9U5T-14474-YB
51	CLS07 (BN-YE)	22	CTRL MOD. - PARK FRONT RIGHT OR FRONT/REAR RIGHT	9U5T-14474-DB
52	CLS27 (GN-OG)	22	CTRL MOD. - TURN LAMP RIGHT REAR	9U5T-14474-DB
