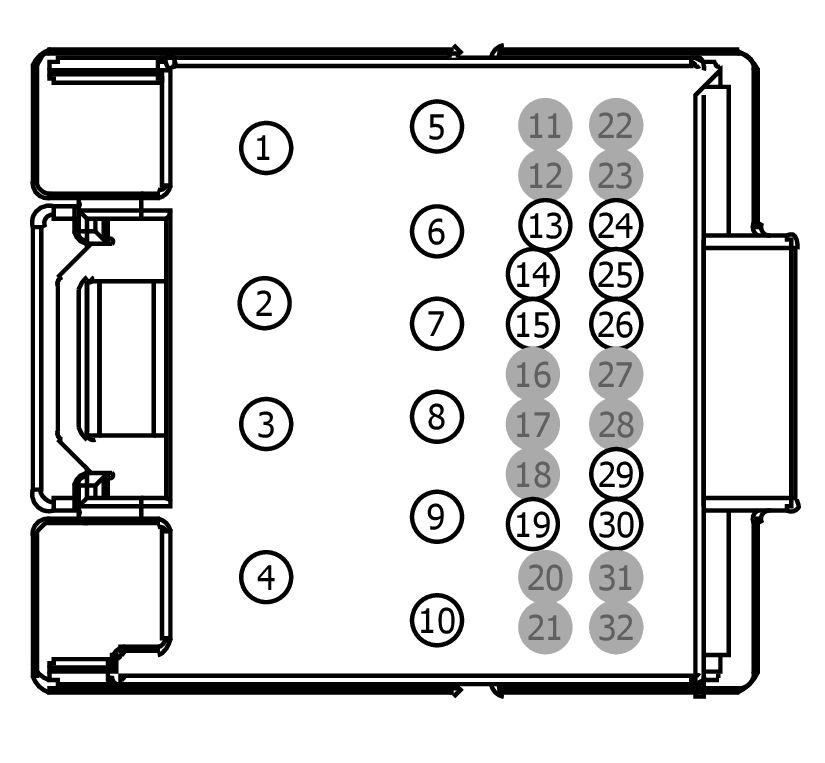

Connector End View (C240A) - AUDIO FRONT CONTROL MODULE (ACM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C240A	AUDIO FRONT CONTROL MODULE (ACM)	14401			part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
9U5T-14474-XB	Not Available
8U5T-14474-BB	DU2Z-14474-CA	0.64
8U5T-14474-CB	DU2Z-14474-CA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	SBP32 (VT-RD)	12	FUSE - 32 OR CIRCUIT BREAKER	97BG-14474-BCA
2	RMED4 (GN-BN)	18	CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT DOOR (WOOFER) -	97BG-14474-ABB
3	VMED4 (YE-OG)	18	CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT DOOR (WOOFER) +	97BG-14474-ABB
4	GD215 (BK-YE)	12	GROUND - INSTRUMENT PANEL STRUCTURE # 2ND POINT	97BG-14474-BCA
5	RME79 (BN-GN)	18	SPEAKER - LEFT REAR -	97BG-14474-ABB
6	VME79 (GY-VT)	18	SPEAKER - LEFT REAR +	97BG-14474-ABB
7	RMED3 (GY-BN)	18	CTRL MOD. - AUDIO # SPEAKER LEFT FRONT DOOR (WOOFER) -	97BG-14474-ABB
8	VMED3 (BU)	18	CTRL MOD. - AUDIO # SPEAKER LEFT FRONT DOOR (WOOFER) +	97BG-14474-ABB
9	RME78 (GY)	18	SPEAKER - RIGHT REAR -	97BG-14474-ABB
10	VME78 (GN-VT)	18	SPEAKER - RIGHT REAR +	97BG-14474-ABB
11	*	*	Not Used	N/A
12	*	*	Not Used	N/A
13	DMM13 (BK-GY)	22	MICROPHONE - PHONE/VOICE CONTROL D	8U5T-14474-BB
14	VMP19 (WH-RD)	22	CAMERA - CAMERA FRONT VIDEO	8U5T-14474-BB
15	VMM13 (YE)	26	MICROPHONE - PHONE/VOICE CONTROL +	9U5T-14474-XB
16	*	*	Not Used	N/A
17	*	*	Not Used	N/A
18	*	*	Not Used	N/A
19	VDB29 (GN-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) HIGH	8U5T-14474-CB
20	*	*	Not Used	N/A
21	*	*	Not Used	N/A
22	*	*	Not Used	N/A
23	*	*	Not Used	N/A
24	DMP19 (BK)	22	SHIELD	8U5T-14474-BB
25	RMP19 (BU-GY)	22	CAMERA - PARKING AID REAR VIDEO -	8U5T-14474-BB
26	RMM13 (BU)	26	MICROPHONE - PHONE/VOICE CONTROL -	9U5T-14474-XB
27	*	*	Not Used	N/A
28	*	*	Not Used	N/A
29	VMED7 (OG)	26	CTRL MOD. - SYNC LIN BUS	9U5T-14474-XB
30	VDB30 (WH-GN)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) LOW	8U5T-14474-CB
31	*	*	Not Used	N/A
32	*	*	Not Used	N/A
