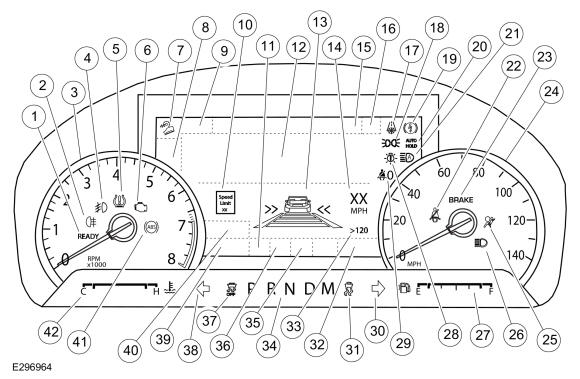

Mid-Level IPC
Mid-Level IPC
| Item | Description |
|---|---|
| 1 | Ready to drive indicator (HEV) |
| 2 | Front fog lamp indicator |
| 3 | Tachometer |
| 4 | Rear fog lamp indicator (Except North America) |
| 5 | TPMS indicator |
| 6 | MIL |
| 7 | Hill descent control RTT indicator |
| 8 | Rotating RTT indicators: Engine over-temperature Low fuel Hill start assist BLIS off Door, hood, liftgate ajar Low engine oil pressure Charging system Powertrain malfunction (wrench) Low washer fluid Engineering test (ET) mode Vehicle plugged in (PHEV) HEV hazard HEV motor over-temperature |
| 9 | Navigation indication |
| 10 | Speed sign recognition RTT indicator |
| 11 | Rotating RTT indicators: Auto stop/start (Gas) Electric Vehicle (EV) now (PHEV) Electric Vehicle (EV) later (PHEV) Electric Vehicle (EV) charge (PHEV) |
| 12 | Message center display |
| 13 | Adaptive cruise control RTT indicator Lane keeping assist RTT indicator |
| 14 | Digital speedometer display |
| 15 | Compass display |
| 16 | Outside air temperature display |
| 17 | Frost RTT indicator (Except North America) |
| 18 | Parklamps/headlamps on RTT indicator |
| 19 | Electric parking brake RTT indicator |
| 20 | Auto hold RTT indicator |
| 21 | Auto high beam RTT indicator |
| 22 | Seatbelt/BeltMinder® warning indicator |
| 23 | Brake warning indicator |
| 24 | Speedometer |
| 25 | Airbag warning indicator |
| 26 | High beam indicator |
| 27 | Fuel gauge |
| 28 | LED low beam headlamp out RTT indicator |
| 29 | Rear seatbelt monitor RTT indicator |
| 30 | RH turn indicator |
| 31 | Stability-traction control (sliding car icon) warning indicator |
| 32 | DTE display Battery gauge (PHEV) Electric Vehicle (EV) range display (PHEV) |
| 33 | Overspeed warning RTT indicator (Gulf Cooperative Countries [GCC]) |
| 34 | PRNDM indicator |
| 35 | Selectshift RTT indicator |
| 36 | Drive mode RTT indicators: Normal Sport ECO Tow haul Slippery Sand/Snow Trail |
| 37 | Stability-traction control disabled (sliding car off icon) warning indicator |
| 38 | LH turn indicator |
| 39 | Odometer display |
| 40 | Cruise control RTT indicator Adaptive cruise control RTT indicator Cruise control set speed display |
| 41 | ABS warning indicator |
| 42 | Temperature gauge |
