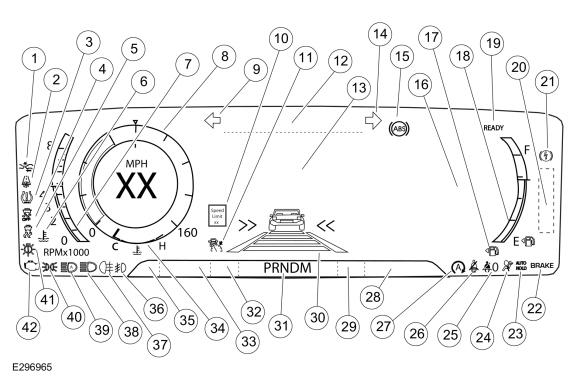

High-Level IPC
High-Level IPC
| Item | Description |
|---|---|
| 1 | Forward collision alert warning RTT indicator |
| 2 | Frost warning RTT indicator (Except North America) |
| 3 | TPMS indicator |
| 4 | Stability-traction control disabled (sliding car off icon) warning RTT indicator |
| 5 | Stability-traction control (sliding car icon) warning RTT indicator |
| 6 | Engine over-temperature warning RTT indicator |
| 7 | Virtual tachometer |
| 8 | Virtual speedometer |
| 9 | LH turn RTT indicator |
| 10 | Speed sign recognition RTT indicator |
| 11 | Adaptive cruise control RTT indicator |
| 12 | Message center audio display |
| 13 | Main message center display |
| 14 | RH turn RTT indicator |
| 15 | ABS warning RTT indicator |
| 16 | Main message center menu display |
| 17 | Low fuel RTT indicator |
| 18 | Virtual fuel gauge |
| 19 | Ready to drive RTT indicator (HEV) |
| 20 | Rotating RTT indicators: BLIS off Charging system Door, hood, liftgate ajar Engineering test (ET) mode HEV hazard HEV motor over-temperature Hill descent control Low engine oil pressure Low washer fluid Powertrain malfunction (wrench) Vehicle plugged in (PHEV) |
| 21 | Electric parking brake RTT indicator |
| 22 | Brake warning RTT indicator |
| 23 | Auto hold RTT indicator |
| 24 | Airbag warning RTT indicator |
| 25 | Rear seatbelt monitor RTT indicator |
| 26 | Seatbelt/BeltMinder® warning RTT indicator |
| 27 | Rotating RTT indicators: Auto stop/start (Gas) Electric Vehicle (EV) now (PHEV) Electric Vehicle (EV) later (PHEV) Electric Vehicle (EV) charge (PHEV) |
| 28 | DTE display Battery gauge (PHEV) Electric Vehicle (EV) range display (PHEV) |
| 29 | Outside air temperature display |
| 30 | Adaptive cruise control RTT indicator Lane keeping assist RTT indicator |
| 31 | PRNDM display |
| 32 | Drive mode RTT indicators: Normal Sport ECO Tow haul Slippery Sand/Snow Trail |
| 33 | Odometer display |
| 34 | Virtual temperature gauge |
| 35 | Compass display |
| 36 | Front fog lamp RTT indicator |
| 37 | Rear fog lamp RTT indicator |
| 38 | High beam RTT indicator |
| 39 | Auto high beam RTT indicator |
| 40 | Lights on RTT indicator |
| 41 | LED low beam out RTT indicator |
| 42 | MIL RTT indicator |
