Parking, Rear and License Lamps

Fig 1: Parking, Rear and License Lamps System Wiring Diagrams (1 Of 5)
GFDWR94575Courtesy of FORD MOTOR COMPANY

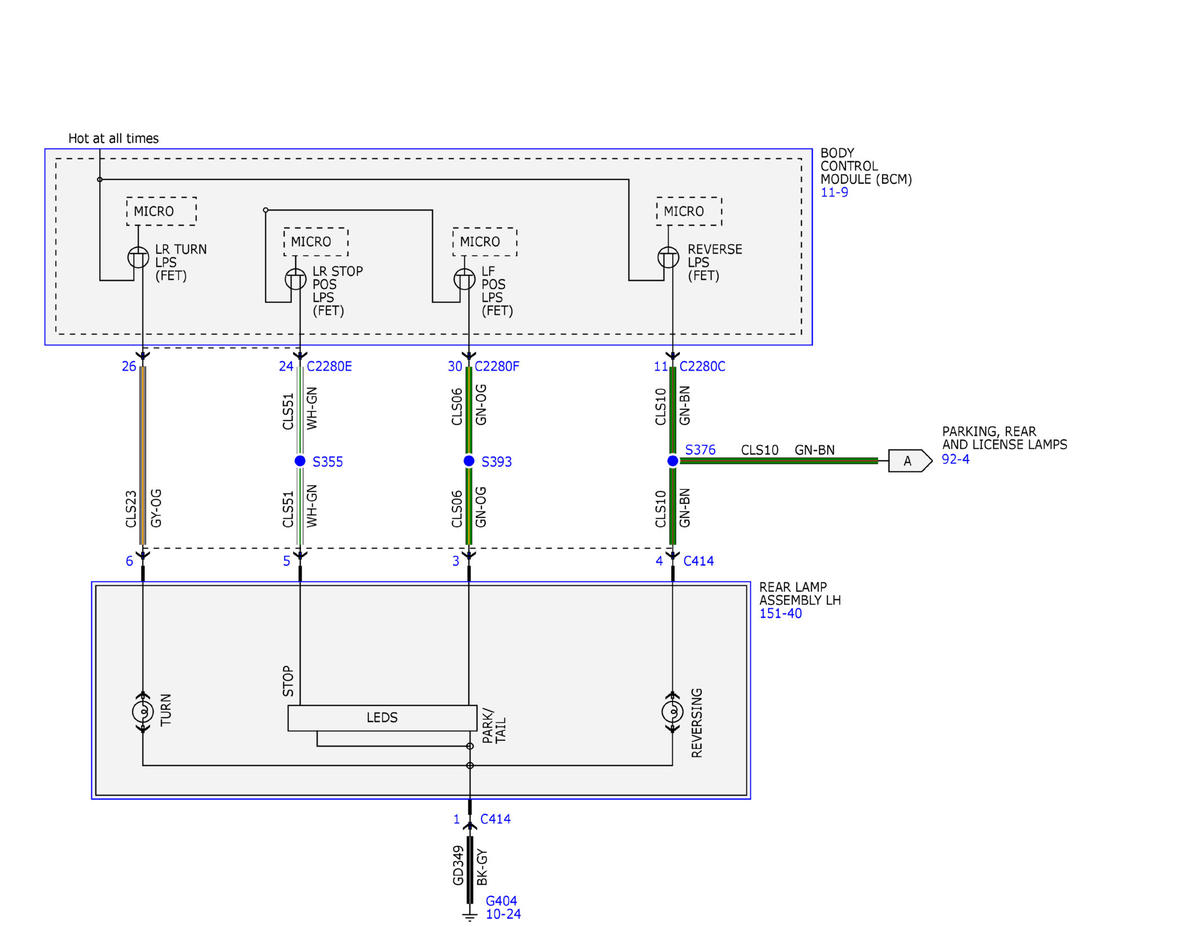

Fig 2: Parking, Rear and License Lamps System Wiring Diagrams (2 Of 5)
GFDWR94576Courtesy of FORD MOTOR COMPANY
Fig 3: Parking, Rear and License Lamps System Wiring Diagrams (3 Of 5)
GFDWR94577Courtesy of FORD MOTOR COMPANY
Fig 4: Parking, Rear and License Lamps System Wiring Diagrams (4 Of 5)
GFDWR94578Courtesy of FORD MOTOR COMPANY
Fig 5: Parking, Rear and License Lamps System Wiring Diagrams (5 Of 5)
GFDWR94579Courtesy of FORD MOTOR COMPANY
