Home >> Ford >> 2021 >> Explorer ST >> Repair and Diagnosis (Single Page) >> Quick Lookups >> Wiring Diagrams >> OEM Component Harness Location Charts By Connectors >> Component Location Charts By Connectors >> C256A Behind IP above center of air bag

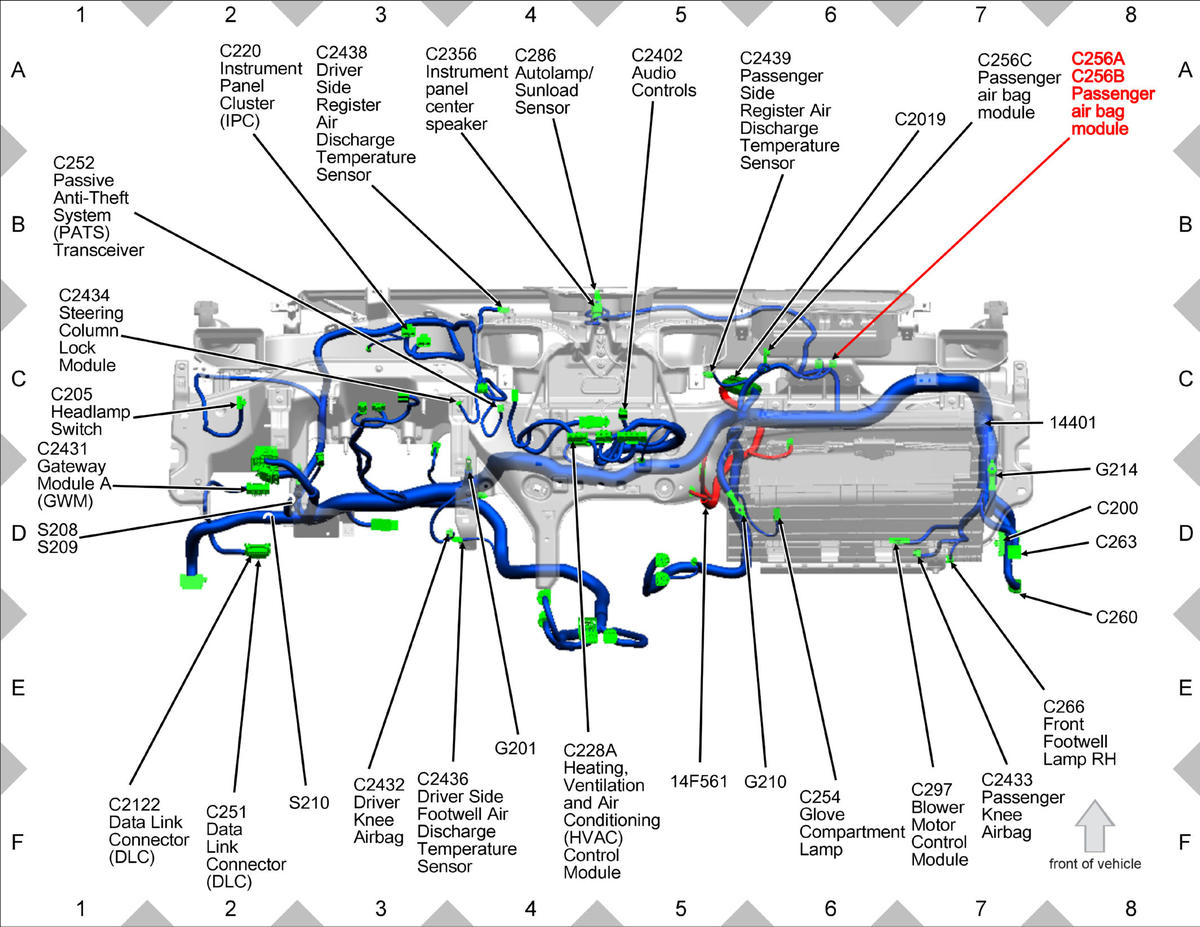

C256A Behind IP above center of air bag

GFDWR92468

Courtesy of FORD MOTOR COMPANY
