Home >> Ford >> 2021 >> Explorer ST >> Repair and Diagnosis (Single Page) >> Quick Lookups >> Wiring Diagrams >> OEM Component Harness Location Charts By Components >> Component Location Charts By Components >> Joint connector 10 Body compartment Passenger side NO breakout to under the Passenger Seat

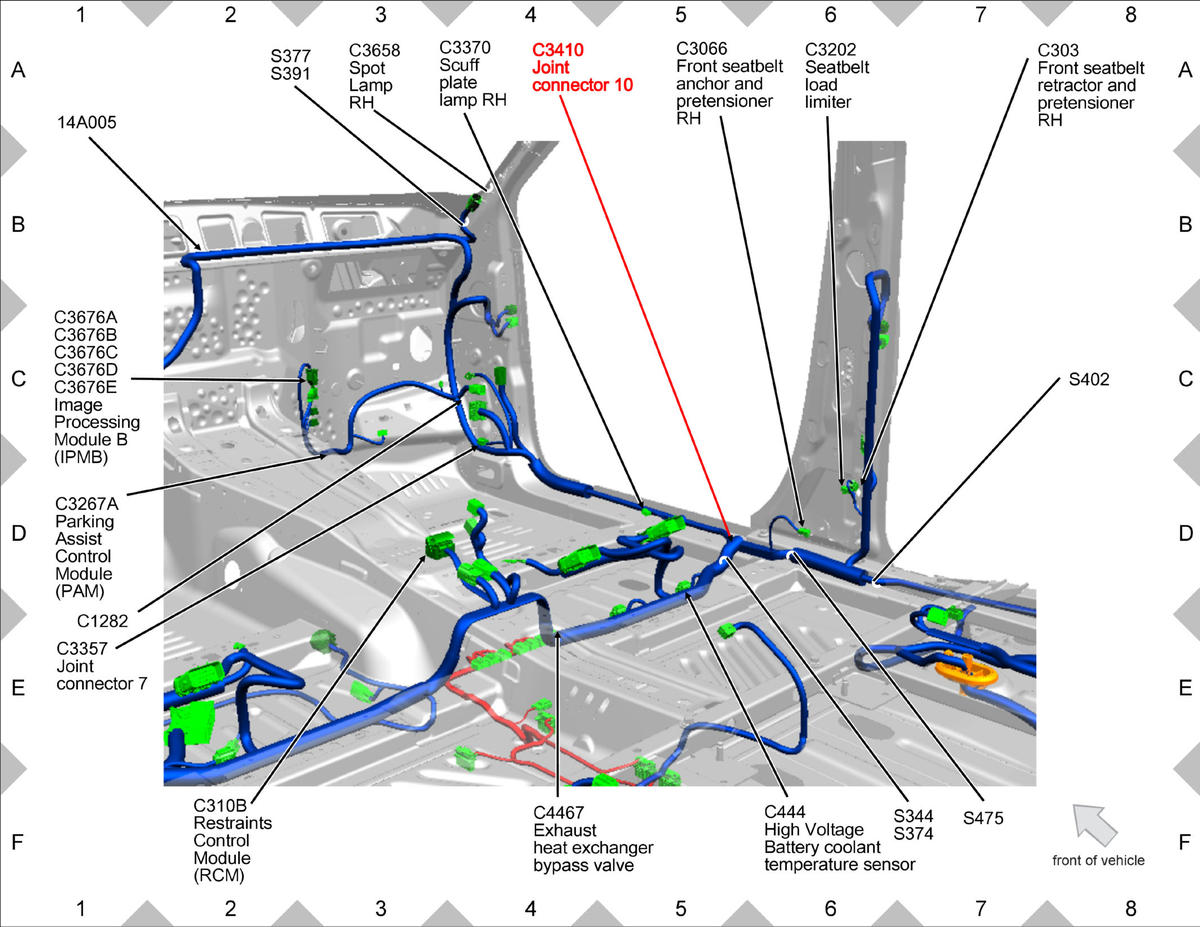

Joint connector 10 Body compartment Passenger side NO breakout to under the Passenger Seat

GFDWR92116

Courtesy of FORD MOTOR COMPANY
