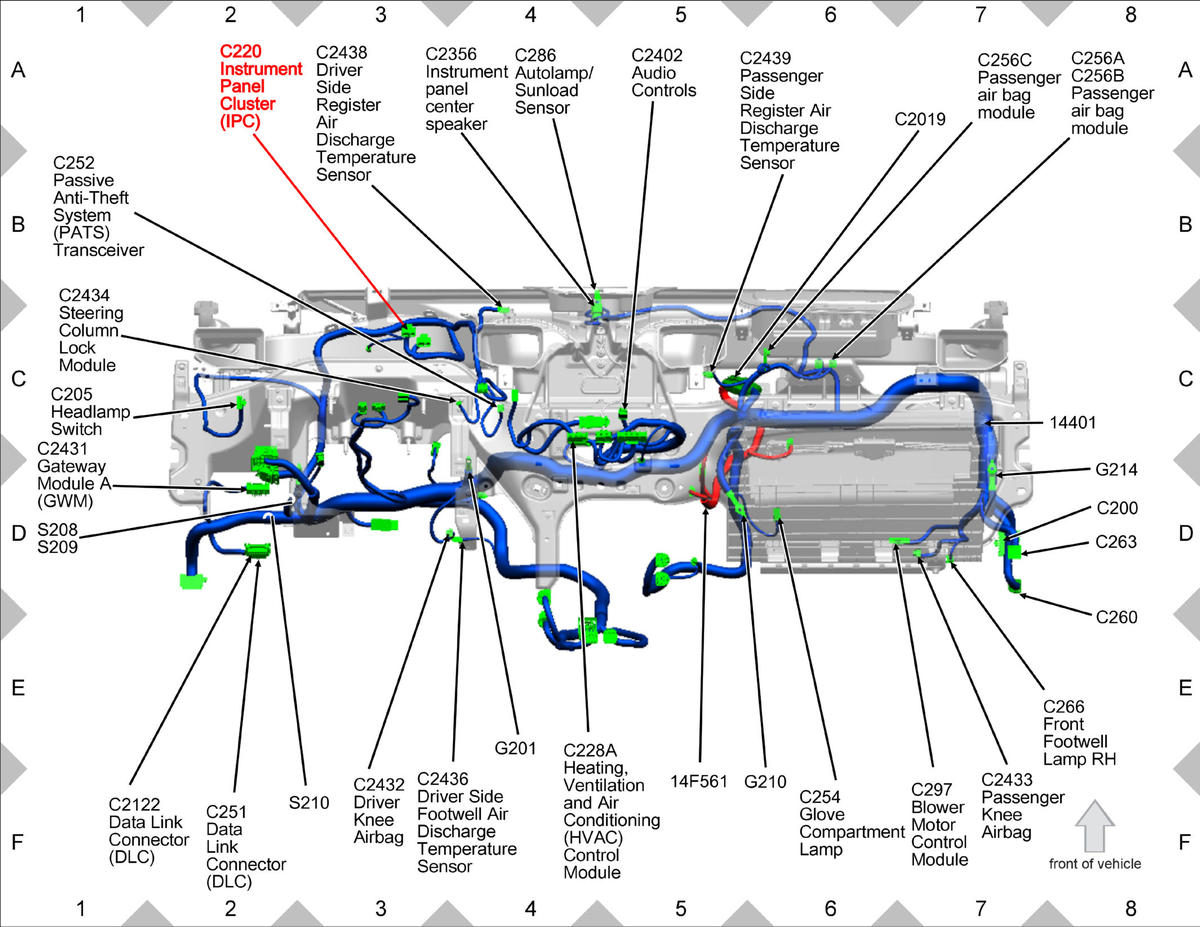

Instrument Panel Cluster (IPC) Behind left hand side of instrument panel above right hand side of instrument cluster

GFDWR92106

Courtesy of FORD MOTOR COMPANY
