Parking Aid - Component Location

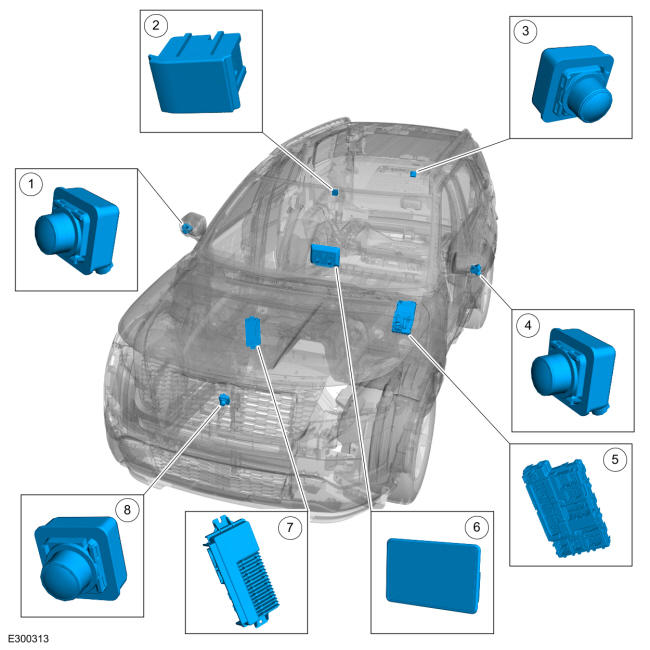

Component Location - Parking Aid Camera
| Item | Description |
|---|---|
| 1 | RH side parking aid camera - digital (360° degree view camera system) |
| 2 | Rear camera on demand switch (police vehicle option) |
| 3 | Rear parking aid camera |
| 4 | LH side parking aid camera - digital (360° degree view camera system) |
| 5 | BCM (rear only parking aid camera system) |
| 6 | Audio system display |
| 7 | IPMB (360° degree view camera system) |
| 8 | Front parking aid camera - digital (360° degree view camera system) |
