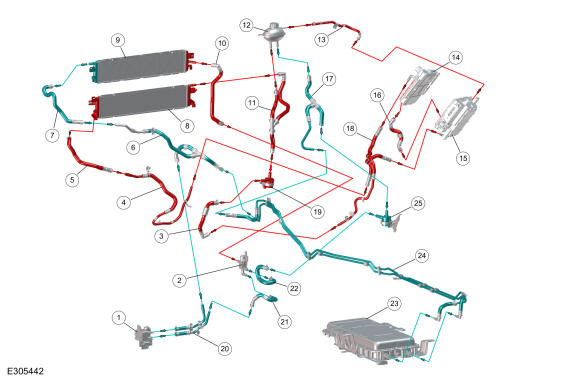

| 1 |
High voltage battery coolant cooler |
| 2 |
High voltage battery coolant diverter valve |
| 3 |
Motor electronic coolant pump outlet hose |
| 4 |
Heater hose assembly |
| 5 |
Electric motor electronics radiator outlet hose |
| 6 |
High voltage battery radiator hose assembly |
| 7 |
High voltage battery radiator outlet hose |
| 8 |
Electric motor electronics radiator |
| 9 |
High voltage battery radiator |
| 10 |
High voltage battery radiator inlet hose |
| 11 |
Motor electronic coolant pump inlet hose |
| 12 |
Degas bottle |
| 13 |
Degas bottle inlet hose |
| 14 |
High voltage to low voltage converter assembly |
| 15 |
Transmitter inverter control module |
| 16 |
High voltage to low voltage converter outlet hose |
| 17 |
Degas bottle hose assembly |
| 18 |
High voltage to low voltage converter inlet hose |
| 19 |
Electric motor electronics coolant pump |
| 20 |
High voltage battery coolant cooler inlet hose |
| 21 |
High voltage battery coolant diverter valve outlet hose |
| 22 |
High voltage battery coolant diverter valve inlet hose |
| 23 |
Battery assembly |
| 24 |
High voltage battery cooler jumper hose |
| 25 |
High voltage battery coolant pump |
