Inverter System Controller [SOBDMC]: Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: This step is only necessary when installing a new component.

Download the inverter system controller [SOBDMC] information to the diagnostic tool using the Programmable Modules Installation routine. Refer to: Module Programming . Use the General Equipment: Ford Diagnostic Equipment
Remove the DCDC. Refer to: Direct Current/Direct Current (DC/DC) Converter Control Module .

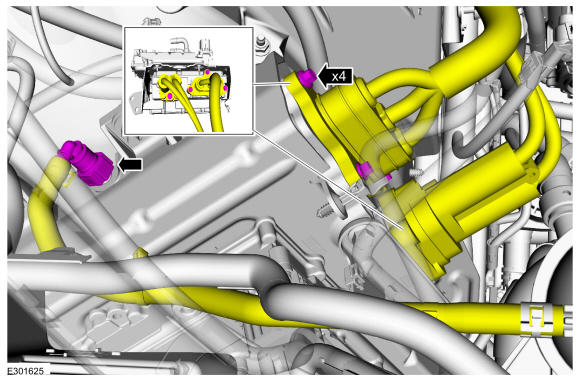

Remove the retainers and disconnect the high voltage cables. Disconnect the coolant hose from the inverter system controller.
Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the RH fender splash shield. Refer to: Fender Splash Shield .
NOTE: Do not allow the inverter system controller to hang from the low voltage harness.

NOTE: Be prepared to catch escaping coolant.

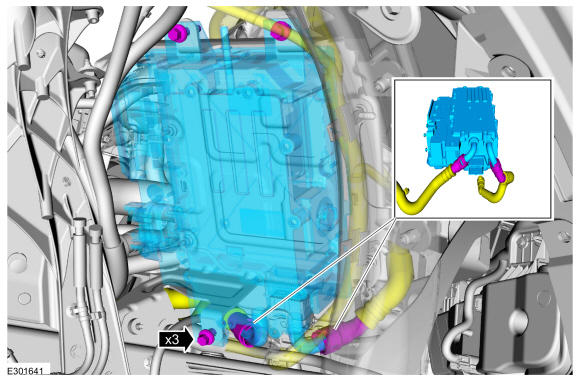

Disconnect and position aside the coolant tubes. Remove the bolts.

Torque: 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY

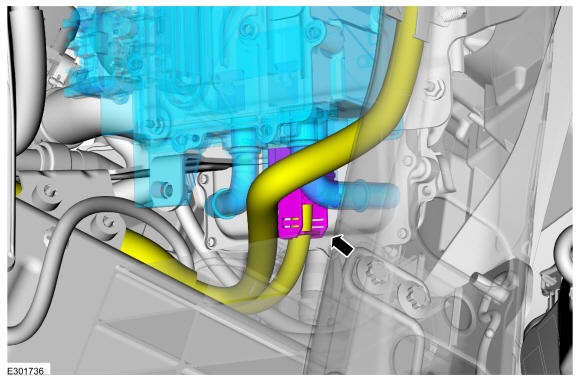

Disconnect the wiring harness and remove the inverter system controller

Courtesy of FORD MOTOR COMPANY
