Transmission Fluid Heater Coolant Control Valve: Removal

1. Courtesy of FORD MOTOR COMPANY

   Courtesy of FORD MOTOR COMPANY

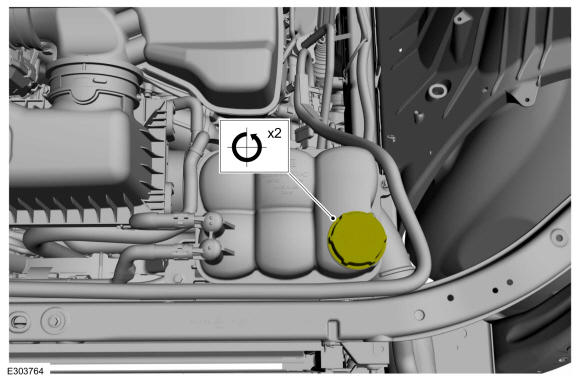

   WARNING: When releasing the cooling system pressure, cover the coolant expansion tank cap with a thick cloth.

   Loosen the pressure relief cap.

   Courtesy of FORD MOTOR COMPANY

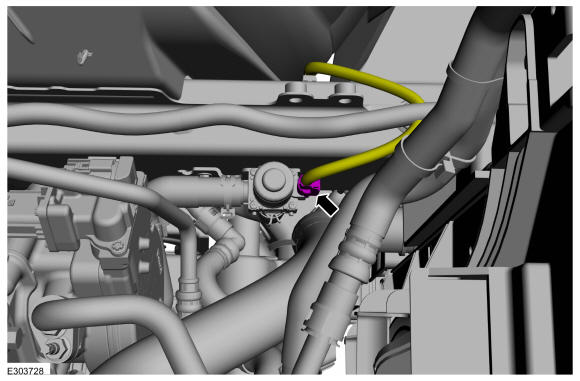

2. Disconnect the coolant control valve electrical connector.

   Courtesy of FORD MOTOR COMPANY

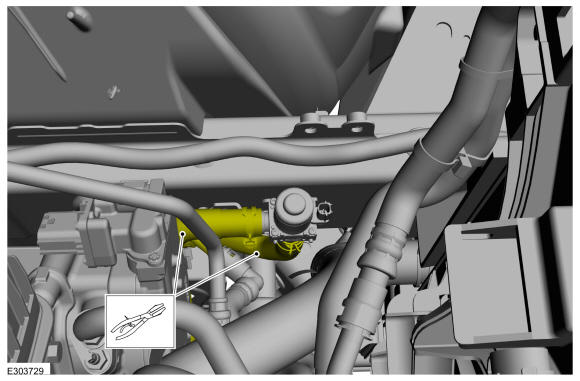

3. Clamp off the coolant control valve hoses.

   Courtesy of FORD MOTOR COMPANY

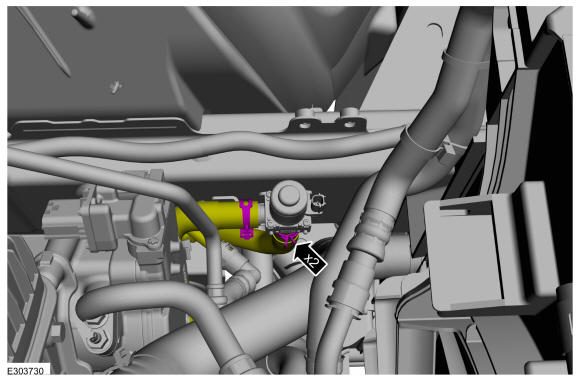

4. Release the clamps and disconnect the coolant hoses. Use the General Equipment: Hose Clamp Remover/Installer

   Courtesy of FORD MOTOR COMPANY

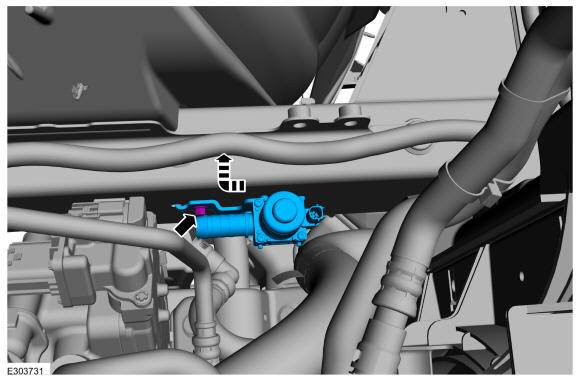

5. Remove the bolt and the transmission fluid heater coolant control valve.

   Torque: 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY
