Removal And Installation: Thermostat: Removal

NOTE: Removal steps in this procedure may contain installation details.

Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
Remove the air cleaner. Refer to: Air Cleaner .

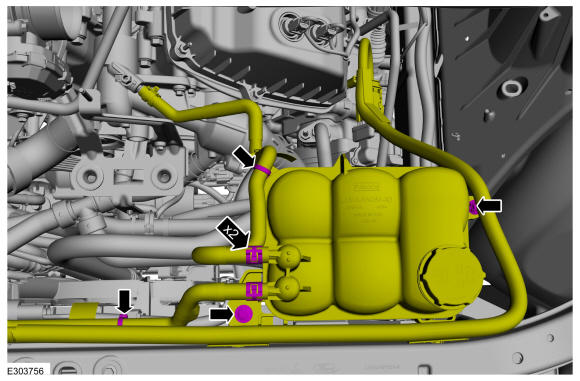

- Detach the coolant hose retainers and the wiring harness retainer.
- Release the clamps and disconnect the coolant hoses. Use the General Equipment: Hose Clamp Remover/Installer
- Remove the bolt and position the degas bottle aside.
  Torque: 44 lb.in (5 Nm)
Courtesy of FORD MOTOR COMPANY

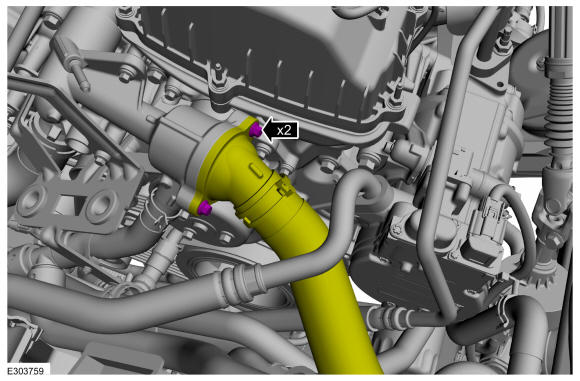

NOTE: During installation, make sure the coolant outlet connection is fully seated on the thermostat housing before tightening the bolts.

Remove the bolts and disconnect the coolant inlet connector.

Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

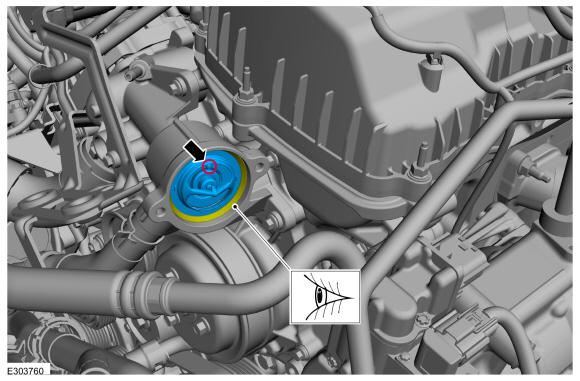

NOTE: During installation verify the thermostat vent hole is at the 11 o'clock position.

Remove the thermostat. Inspect the O-ring seal and replace if necessary.

Courtesy of FORD MOTOR COMPANY
