Coolant Pump: Removal
- Remove the thermostat housing. Refer to: Thermostat Housing .

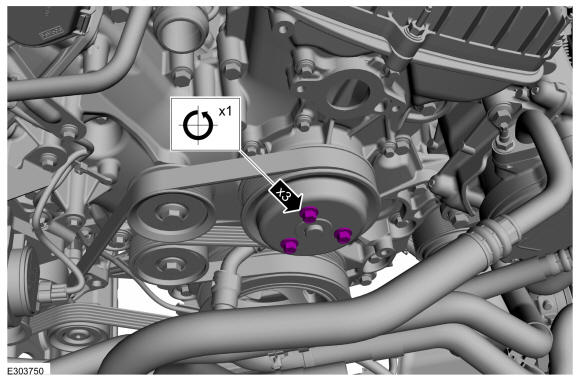

- Loosen the coolant pump pulley bolts.
- Remove the accessory drive belt. Refer to: Accessory Drive Belt .
-
NOTE: Cover the A/C compressor belt to prevent coolant contamination of the belt.
Completely cover the A/C compressor belt with waterproof plastic.
- Remove the bolts and the coolant pump pulley.

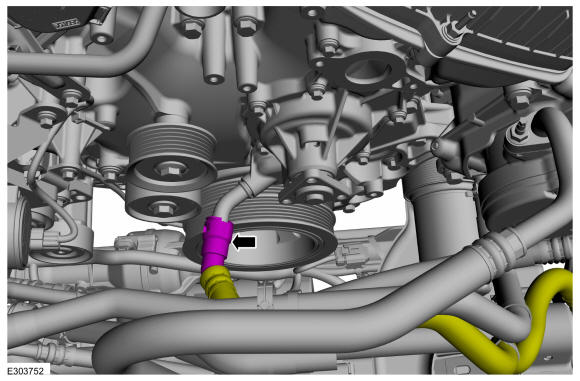

- Disconnect the coolant hose quick release coupling.

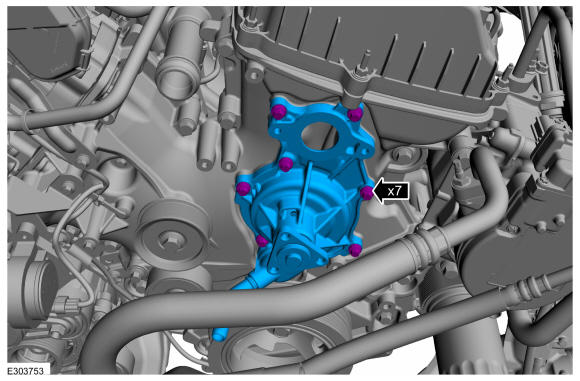

- Remove the bolts and the coolant pump.
- Remove and discard the coolant pump gasket and O-ring seal.
