Block Heater: Removal

NOTE: Removal steps in this procedure may contain installation details.

Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
Remove the front LH wheel and tire. Refer to: Wheel and Tire .
Remove the LH fender splash shield. Refer to: Fender Splash Shield .
Detach the block heater electrical connector heat shield.

Courtesy of FORD MOTOR COMPANY
NOTE: Access the block heater from the inner fender well.

NOTE: Make sure the block heater wiring is routed and secured away from rotating or hot components.

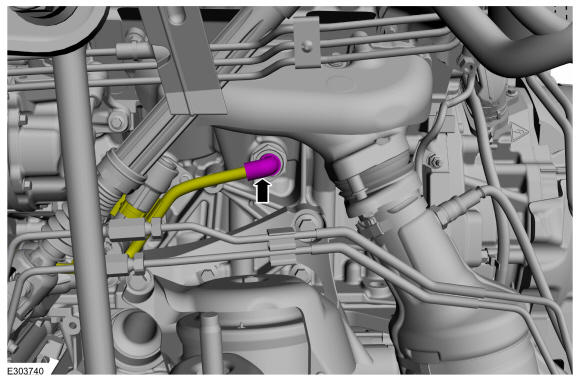

Disconnect the block heater electrical connector.

Courtesy of FORD MOTOR COMPANY
Remove the block heater.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
