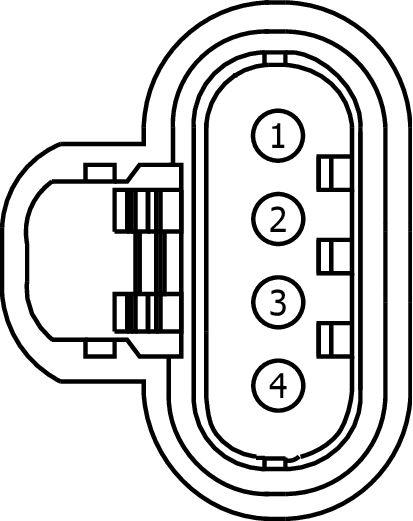

Connector End View (C4467) - EXHAUST HEAT EXCHANGER BYPASS VALVE

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C4467	EXHAUST HEAT EXCHANGER BYPASS VALVE	none	14A005	C4E915	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	GD383 (BK-WH)	18	GROUND - CROSS MEMBER MIDDLE PASSENGER OR RIGHT	N/A
2	CE162 (BU-GN)	22	CTRL MOD. - POWERTRAIN # ACTIVE EXHAUST SOLENOID VALVE	N/A
3	CBK02 (GN)	18	FUSE - 8 OR CIRCUIT BREAKER (VPWR 2)	N/A
4	VE939 (GY-OG)	22	VALVE - ACTIVE EXHAUST SOLENOID RIGHT	N/A

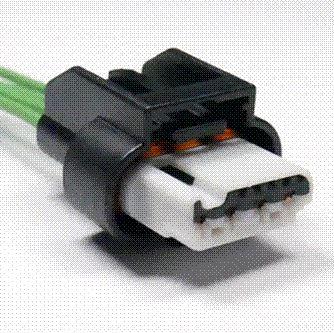

Available Pigtail Kits

Pigtail Kit Part Number WPT-1537

Courtesy of FORD MOTOR COMPANY

Service Part Number:

JU2Z-14S411-ACA

Gauge:

18

Pin material:

Silver

Cavities:

4

Vehicle Uses:

• Module - Differential Oil Temperature
• Module - Particulate Matter Bank Sensor
• Module - Reductant Quality
• Noise Generator
• Sensor - Fuel Rail Pressure and Temperature
• Sensor - Manifold Pressure/Intake Temperature
• Sensor - Turbo Intake Pressure/Temperature
• Valve - Active Exhaust Solenoid
