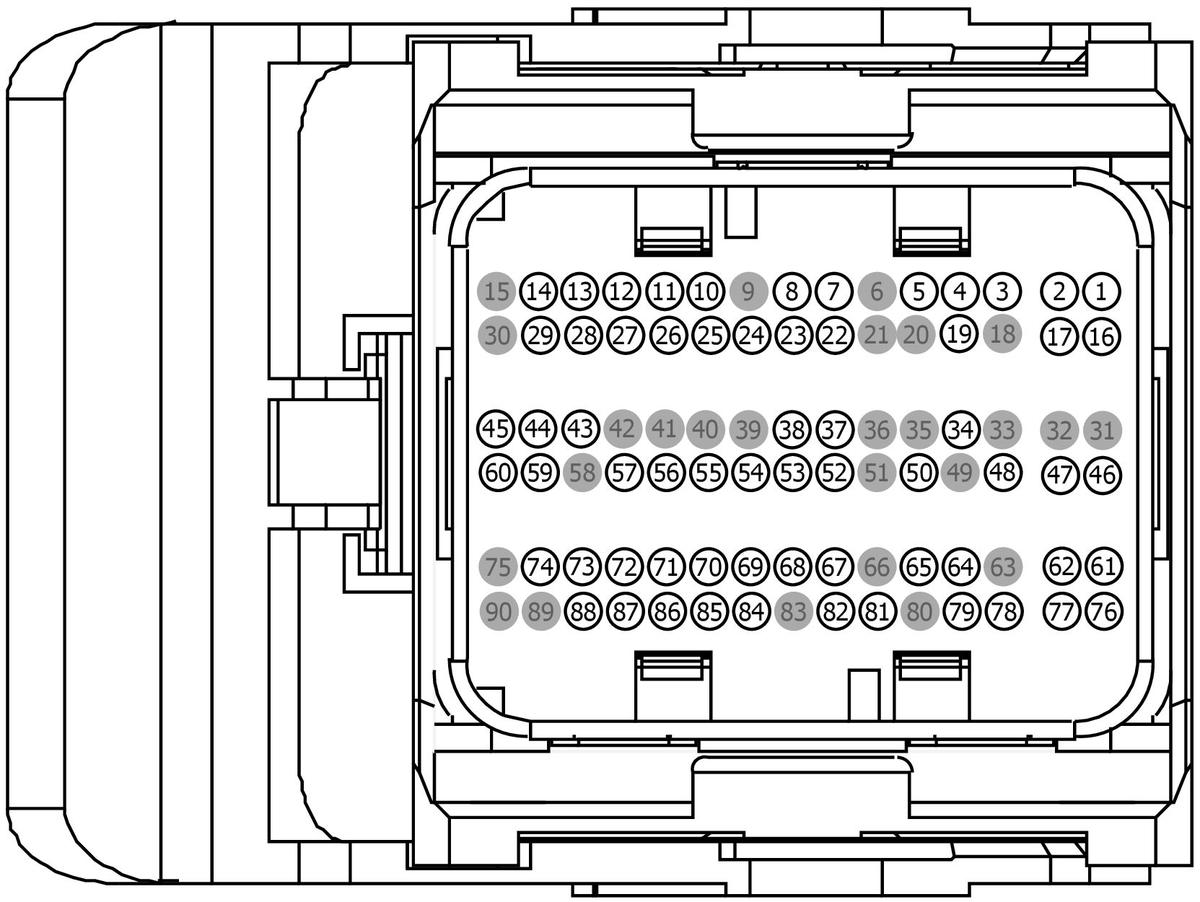

| 1 |
CBB06 (WH-BU) |
16 |
FUSE - 6 OR CIRCUIT BREAKER |
GU5T-14474-DA |
| 2 |
CBB06 (WH-BU) |
16 |
FUSE - 6 OR CIRCUIT BREAKER |
GU5T-14474-DA |
| 3 |
VE225 (YE-OG) |
22 |
CTRL MOD. - POWERTRAIN # FUEL PUMP MODULE COMMAND (FPC) |
BU5T-14474-AB |
| 4 |
CE420 (GY-OG) |
18 |
CTRL MOD. - POWERTRAIN # VAPOR MANAGEMENT VALVE (VAPOR BLOCKING - EVAPS) (VMV-CC) |
BU5T-14474-BB |
| 5 |
CPLB5 (BU-GY) |
22 |
CTRL MOD. - FUEL DOOR REF |
BU5T-14474-AB |
| 6 |
* |
* |
Not Used |
N/A |
| 7 |
CE436 (VT-RD) |
22 |
CTRL MOD. -WAKE UP PCM |
BU5T-14474-AB |
| 7 |
CYD14 (GN) |
22 |
CTRL MOD. - DC/DC CONVERTER # DC/DC WAKEUP (DCDC_WKUP) |
BU5T-14474-AB |
| 8 |
CCB08 (VT-WH) |
22 |
SWITCH - BRAKE ON/OFF (BOO) NORMAL OPEN |
BU5T-14474-AB |
| 9 |
* |
* |
Not Used |
N/A |
| 10 |
VE761 (BN-YE) |
20 |
SENSOR - FUEL LOW PRESSURE (FLPS) |
BU5T-14474-AB |
| 11 |
VE181 (WH-GN) |
22 |
CTRL MOD. - LIN BUS # POWERTRAIN CONTROL MODULE 1 |
BU5T-14474-AB |
| 11 |
VE181 (WH-VT) |
22 |
CTRL MOD. - LIN BUS # POWERTRAIN CONTROL MODULE 1 |
BU5T-14474-AB |
| 12 |
VDB05 (WH) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW |
BU5T-14474-AB |
| 13 |
CBB24 (VT-GN) |
22 |
FUSE - 24 OR CIRCUIT BREAKER |
BU5T-14474-AB |
| 14 |
CE226 (GY-RD) |
22 |
CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) + |
BU5T-14474-AB |
| 15 |
* |
* |
Not Used |
N/A |
| 16 |
CBB06 (WH-BU) |
16 |
FUSE - 6 OR CIRCUIT BREAKER |
GU5T-14474-DA |
| 17 |
SBB05 (GY-OG) |
18 |
FUSE - 5 OR CIRCUIT BREAKER |
GU5T-14474-CA |
| 18 |
* |
* |
Not Used |
N/A |
| 19 |
CH302 (WH-BN) |
22 |
CTRL MOD. - POWERTRAIN # A/C CLUTCH CONTROL RELAY / WOT AC CUTOFF (ACCR) |
BU5T-14474-AB |
| 20 |
* |
* |
Not Used |
N/A |
| 21 |
* |
* |
Not Used |
N/A |
| 22 |
CPK34 (GN-OG) |
22 |
CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP 1 + |
BU5T-14474-AB |
| 23 |
CES09 (VT-OG) |
22 |
SWITCH - BRAKE PEDAL # SPEED CONTROL DEACTIVATION (BPS) + |
BU5T-14474-AB |
| 24 |
VE716 (YE) |
20 |
SENSOR - ENGINE COOLANT TEMPERATURE (ECT) |
BU5T-14474-AB |
| 24 |
VE740 (VT-GY) |
20 |
SENSOR - INTAKE AIR TEMPERATURE (IAT) |
BU5T-14474-AB |
| 25 |
VE759 (GN-BN) |
20 |
SENSOR - ENGINE COOLANT TEMPERATURE 2 (ECT2) |
BU5T-14474-AB |
| 26 |
RE407 (YE-GY) |
22 |
CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C) |
BU5T-14474-AB |
| 27 |
VDB04 (BU) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH |
BU5T-14474-AB |
| 28 |
RE407 (YE-RD) |
22 |
CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C) |
BU5T-14474-AB |
| 29 |
RE226 (GN-WH) |
22 |
CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) - |
BU5T-14474-AB |
| 30 |
* |
* |
Not Used |
N/A |
| 31 |
* |
* |
Not Used |
N/A |
| 32 |
* |
* |
Not Used |
N/A |
| 33 |
* |
* |
Not Used |
N/A |
| 34 |
CE114 (GN-BU) |
18 |
CTRL MOD. - POWERTRAIN # CANISTER VENT SOLENOID (CANVNT) |
BU5T-14474-BC |
| 35 |
* |
* |
Not Used |
N/A |
| 36 |
* |
* |
Not Used |
N/A |
| 37 |
CR167 (YE-VT) |
22 |
CTRL MOD. - FUEL SHUTOFF EVENT NOTIFICATION SIGNAL (ENS) |
BU5T-14474-AB |
| 38 |
CET34 (BN-GN) |
22 |
SWITCH - TOW MODE CONTROL (TOWS) |
BU5T-14474-AB |
| 39 |
* |
* |
Not Used |
N/A |
| 40 |
* |
* |
Not Used |
N/A |
| 41 |
* |
* |
Not Used |
N/A |
| 42 |
* |
* |
Not Used |
N/A |
| 43 |
RE407 (YE-VT) |
22 |
CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C) |
BU5T-14474-AB|BU5T-14474-BC |
| 43 |
RE407 (YE) |
18 |
CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C) |
BU5T-14474-AB|BU5T-14474-BC |
| 44 |
CDC54 (WH-GN) |
22 |
CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL SENSE (SMCS) |
BU5T-14474-AB |
| 45 |
VE274 (BU-BN) |
18 |
CTRL MOD. - POWERTRAIN # FUEL TANK PRESSURE CONTROL VALVE (TPCV) |
BU5T-14474-BB |
| 46 |
GD124 (BK-VT) |
18 |
GROUND - FENDER FRONT RIGHT # 2ND POINT |
GU5T-14474-CA |
| 47 |
GD124 (BK-VT) |
18 |
GROUND - FENDER FRONT RIGHT # 2ND POINT |
GU5T-14474-CA |
| 48 |
CE420 (GY-VT) |
18 |
CTRL MOD. - POWERTRAIN # VAPOR MANAGEMENT VALVE (VAPOR BLOCKING - EVAPS) (VMV-CC) |
BU5T-14474-BC |
| 48 |
CE622 (BU-RD) |
18 |
RELAY - REFUELING CONTROL |
BU5T-14474-BC |
| 49 |
* |
* |
Not Used |
N/A |
| 50 |
CE204 (WH-BU) |
22 |
CTRL MOD. - POWERTRAIN # FUEL CAP OFF INDICATOR LAMP (FCIL) |
BU5T-14474-AB |
| 51 |
* |
* |
Not Used |
N/A |
| 52 |
VE518 (BN-WH) |
22 |
MONITOR - FUEL PUMP (FPM) |
BU5T-14474-AB |
| 53 |
CET43 (GY) |
22 |
SWITCH - TRANSMISSION SELECT SHIFT # UP (SST) |
BU5T-14474-AB |
| 54 |
CPL24 (YE-BU) |
22 |
SWITCH - FUEL FILLER DOOR # RELEASE |
BU5T-14474-AB |
| 55 |
VDC61 (VT-BN) |
22 |
SENSOR - BATTERY MONITORING SYSTEM # ALTERNATOR |
BU5T-14474-AB |
| 56 |
VE701 (BN-BU) |
22 |
SENSOR - ACCELERATOR PEDAL POSITION # 1 (APP1) |
BU5T-14474-AB |
| 57 |
VE922 (VT-GN) |
22 |
TRANSDUCER - FUEL TANK PRESSURE (FTPT) |
BU5T-14474-AB |
| 58 |
* |
* |
Not Used |
N/A |
| 59 |
VEC03 (WH-RD) |
22 |
CTRL MOD. - COOLING FAN CONTROL VARIABLE (FC-V) |
BU5T-14474-AB |
| 60 |
CE237 (BN-RD) |
20 |
CTRL MOD. - POWERTRAIN # HOLD PCM RELAY (PCM) |
BU5T-14474-AB |
| 61 |
GD124 (BK-VT) |
18 |
GROUND - FENDER FRONT RIGHT # 2ND POINT |
GU5T-14474-CA |
| 62 |
GD124 (BK-VT) |
18 |
GROUND - FENDER FRONT RIGHT # 2ND POINT |
GU5T-14474-CA |
| 63 |
* |
* |
Not Used |
N/A |
| 64 |
CE464 (VT-BN) |
18 |
CTRL MOD. - POWERTRAIN # VACUUM PUMP CONTROL (OBD_PMP) |
BU5T-14474-BB |
| 65 |
CET42 (GN-VT) |
22 |
SWITCH - TRANSMISSION SELECT SHIFT # DOWN (SST) |
BU5T-14474-AB |
| 66 |
* |
* |
Not Used |
N/A |
| 67 |
LE424 (GY-YE) |
20 |
CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE COWL (C-VREF) |
BU5T-14474-AB |
| 68 |
VE702 (BU-WH) |
22 |
SENSOR - ACCELERATOR PEDAL POSITION # 2 (APP2) |
BU5T-14474-AB |
| 69 |
VH433 (VT-OG) |
22 |
TRANSDUCER - A/C PRESSURE (ACPT) + |
BU5T-14474-AB |
| 70 |
LE230 (BN-BU) |
22 |
CTRL MOD. - POWERTRAIN # FUEL TANK PRESSURE TRANSDUCER REF. VOLT. (FTPTREF) |
BU5T-14474-AB |
| 71 |
LE137 (BU-GY) |
22 |
CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APP2VREF) |
BU5T-14474-AB |
| 72 |
RE137 (YE-GN) |
22 |
CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APP2RTN) |
BU5T-14474-AB |
| 73 |
RE407 (GY-BN) |
22 |
CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C) |
BU5T-14474-AB |
| 74 |
CYE07 (WH-OG) |
22 |
BATTERY ISOLATION PWM |
BU5T-14474-AB |
| 75 |
* |
* |
Not Used |
N/A |
| 76 |
GD124 (BK-VT) |
18 |
GROUND - FENDER FRONT RIGHT # 2ND POINT |
GU5T-14474-CA |
| 77 |
GD124 (BK-VT) |
18 |
GROUND - FENDER FRONT RIGHT # 2ND POINT |
GU5T-14474-CA |
| 78 |
CDC12 (YE) |
22 |
CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL (SMC) |
BU5T-14474-AB |
| 79 |
VE462 (WH-BN) |
18 |
CTRL MOD. - POWERTRAIN # VARIABLE A/C COMPRESSOR VALVE |
BU5T-14474-BB |
| 80 |
* |
* |
Not Used |
N/A |
| 81 |
LE424 (YE-OG) |
22 |
CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE COWL (C-VREF) |
BU5T-14474-AB |
| 82 |
LE424 (YE-GN) |
22 |
CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE COWL (C-VREF) |
BU5T-14474-AB |
| 83 |
* |
* |
Not Used |
N/A |
| 84 |
VE750 (GN-RD) |
22 |
SENSOR - POWERTRAIN AMBIENT TEMP. SENSOR (AAT) |
BU5T-14474-AB |
| 85 |
LE424 (BN) |
22 |
CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE COWL (C-VREF) |
BU5T-14474-AB |
| 86 |
LE136 (GN-BN) |
22 |
CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APP1VREF) |
BU5T-14474-AB |
| 87 |
RE136 (VT-GN) |
22 |
CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APP1RTN) |
BU5T-14474-AB |
| 88 |
RE407 (YE-VT) |
22 |
CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C) |
BU5T-14474-AB |
| 89 |
* |
* |
Not Used |
N/A |
| 90 |
* |
* |
Not Used |
N/A |
