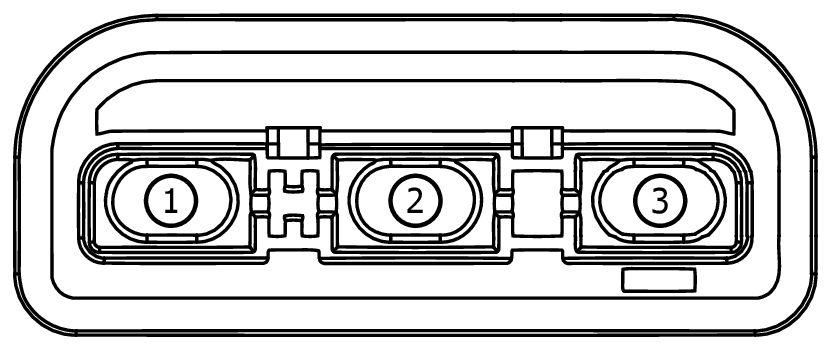

Connector End View (C1201) - ELECTRIC MOTOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1201	ELECTRIC MOTOR	14B245			part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	HYA04 (OG-GN)	2	CONTROLLER - INVERTER SYSTEM # MOTOR W	N/A
2	HYA05 (OG)	2	CONTROLLER - INVERTER SYSTEM # MOTOR V	N/A
2	HYA05 (OG-GN)	2	CONTROLLER - INVERTER SYSTEM # MOTOR V	N/A
3	HYA06 (OG-BU)	2	CONTROLLER - INVERTER SYSTEM # MOTOR U	N/A
