Exhaust Flexible Pipe: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
The LH and RH exhaust flexible pipes are covered in this procedure. Remove the exhaust flexible pipe(s) necessary.
NOTE:
Removal steps in this procedure may contain installation details.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

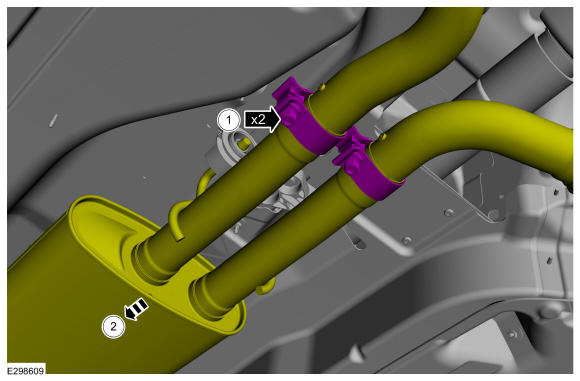

- Loosen the exhaust clamps.
Torque: 41 lb.ft (55 Nm)

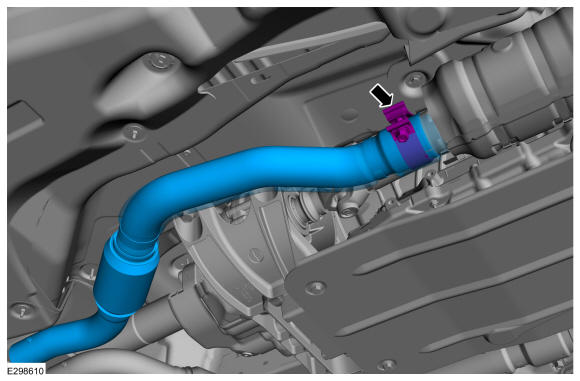

- Loosen the clamp and remove the RH exhaust flexible pipe.
Torque: 41 lb.ft (55 Nm)

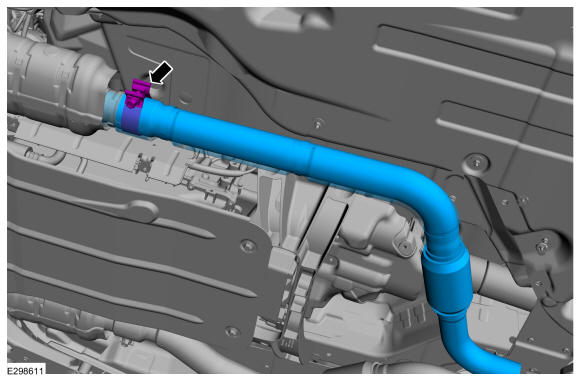

- Loosen the clamp and remove the LH exhaust flexible pipe.
Torque: 41 lb.ft (55 Nm)
