Catalytic Converter LH: Installation
WARNING: This page is about a different variant/trim than selected.
- Clean all exhaust connections before reassembly.

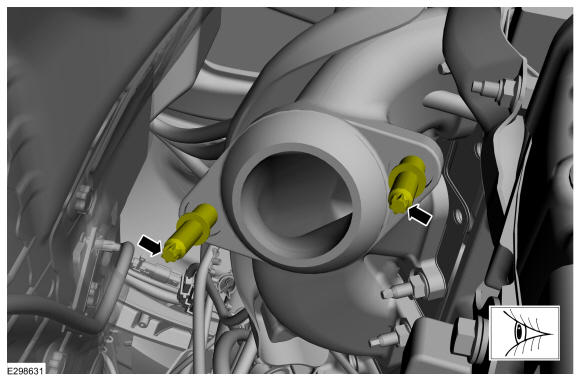

- Clean and inspect the studs, replace the studs if necessary.
Torque: 18 lb.ft (25 Nm)
-
NOTE: The studs and nuts are only finger tight in this step.

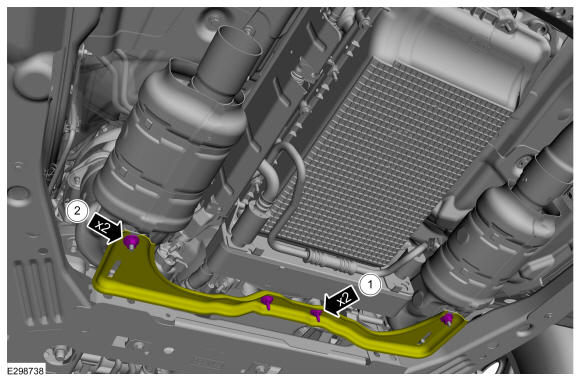

Install the catalytic converter and bracket studs and nuts.
-
NOTE: Make sure that new nuts are installed.

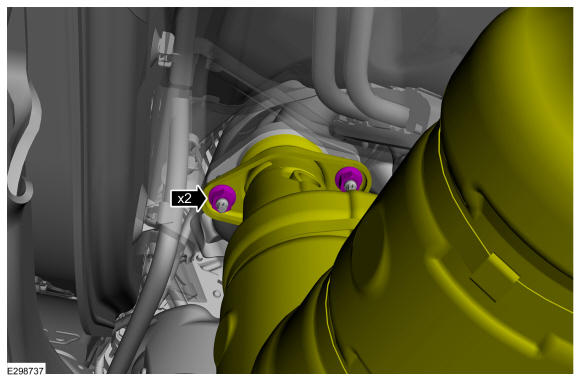

Install the LH catalytic converter nuts.
Torque: 30 lb.ft (40 Nm)
- Tighten the catalyst assembly bracket studs and nuts.
Torque: Studs: 18 lb.ft (25 Nm) Nuts: 18 lb.ft (25 Nm)
- Install the transmission cooler hose bracket nut.
Torque: 80 lb.in (9 Nm)
- To install, reverse the removal procedure.
- Check the exhaust system for leaks.
