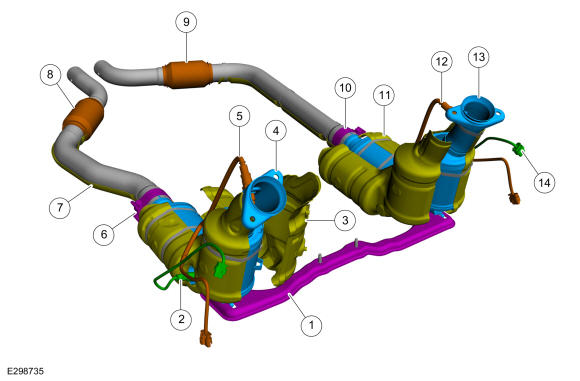

Exhaust System - Component Location
WARNING: This page is about a different variant/trim than selected.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Support bracket |
| 2 |
Exhaust gas oxygen sensor - downstream |
| 3 |
RH catalytic converter heat shield |
| 4 |
RH catalytic converter |
| 5 |
Exhaust gas oxygen sensor - upstream |
| 6 |
Exhaust clamp |
| 7 |
Heat shield |
| 8 |
RH exhaust flexible pipe |
| 9 |
LH exhaust flexible pipe |
| 10 |
Exhaust clamp |
| 11 |
LH catalytic converter heat shield |
| 12 |
Exhaust gas oxygen sensor - upstream |
| 13 |
LH catalytic converter |
| 14 |
Exhaust gas oxygen sensor - downstream |

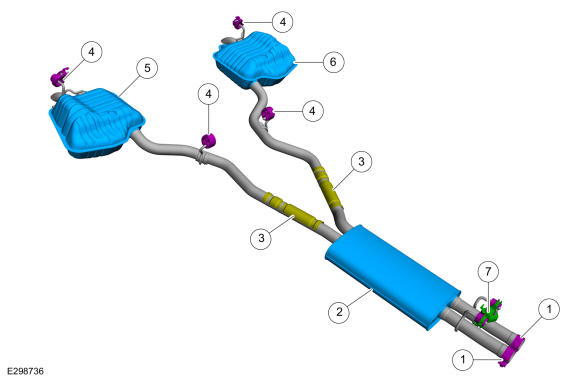

 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Exhaust clamps |
| 2 |
Resonator |
| 3 |
Heat shield |
| 4 |
Isolators |
| 5 |
RH muffler |
| 6 |
LH muffler |
| 7 |
Exhaust hanger bracket |
