Muffler and Tailpipe: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Muffler and tailpipe assemblies will vary in configuration with different wheelbases and power-trains. Typical application shown.

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

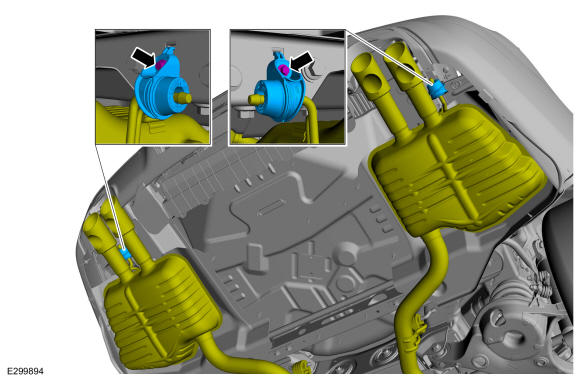

Remove the rear mufflers isolator nuts.
Torque: 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY

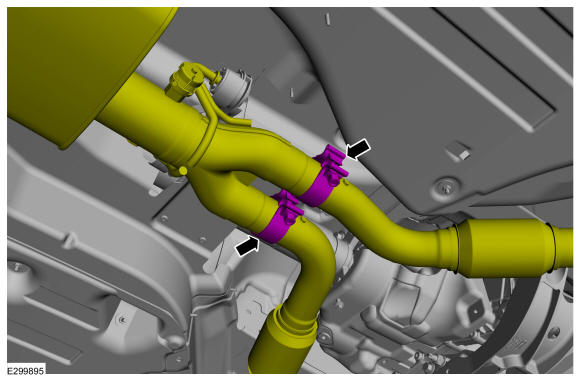

Loosen the exhaust clamps.
Torque: 41 lb.ft (55 Nm)

Courtesy of FORD MOTOR COMPANY

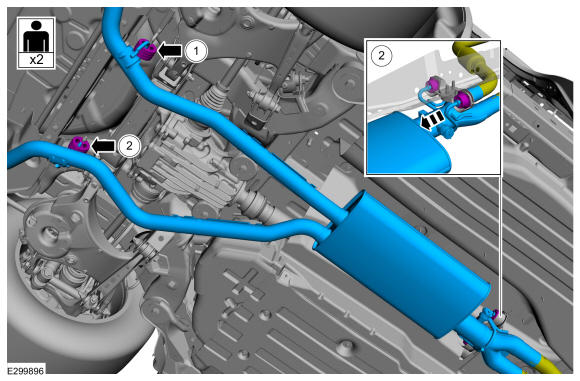

- Detach the exhaust isolators.
- Slide the muffler and tailpipe rearward out of the isolators and remove the muffler and tailpipe.

Courtesy of FORD MOTOR COMPANY
