Catalytic Converter LH: Installation
WARNING: This page is about a different variant/trim than selected.
-
NOTE: Make sure that new gasket is installed.

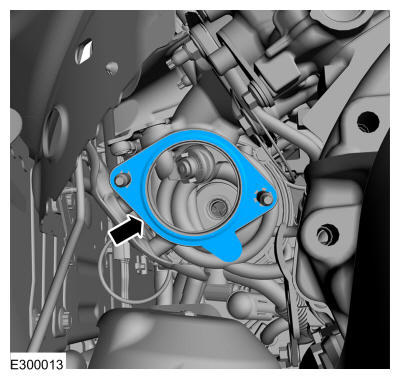

Install the exhaust gasket.
-
NOTE: The studs and nuts are only finger tight in this step.

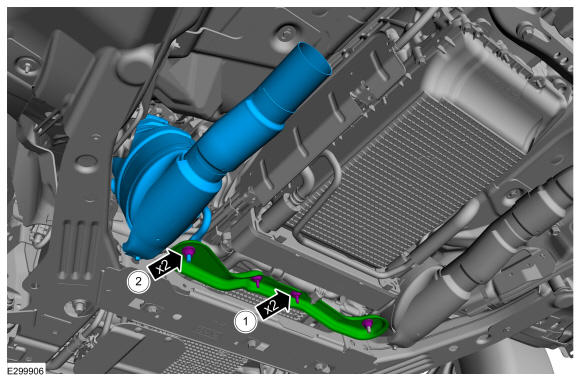

Install the catalytic converter and bracket studs and nuts.
-
NOTE: Make sure that new nuts are installed.

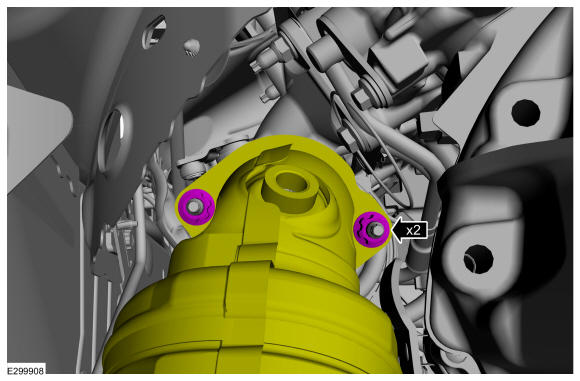

Install the LH catalytic converter nuts.
Torque: 35 lb.ft (48 Nm)

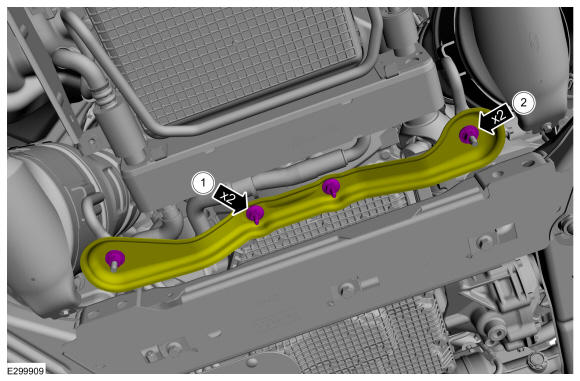

- Tighten the catalyst assembly bracket studs and nuts.
Torque: Studs: 18 lb.ft (25 Nm) Nuts: 18 lb.ft (25 Nm)

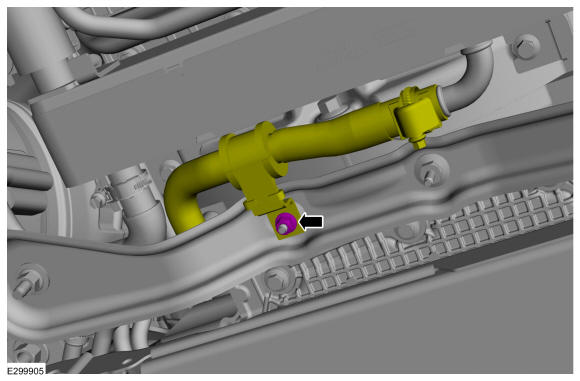

- Install the transmission cooler hose bracket nut.
Torque: 80 lb.in (9 Nm)

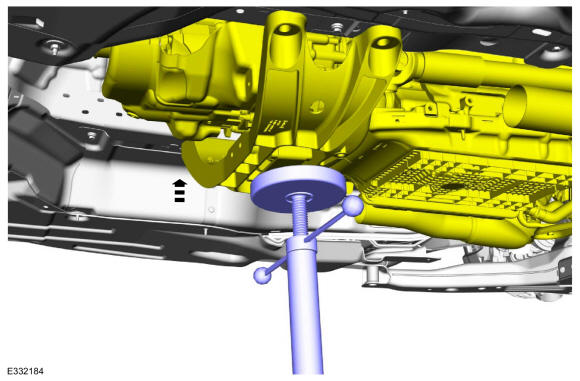

- Raise the transmission and crossmember.
-
NOTE: Make sure that new bolts are installed.

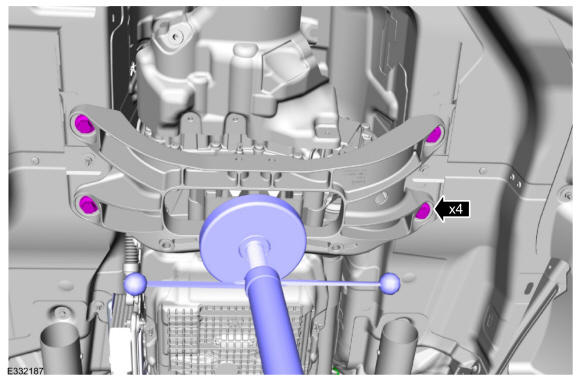

Install the transmission crossmember bolts.
Torque: 59 lb.ft (80 Nm)
-
NOTE: Make sure that new bolts are installed.

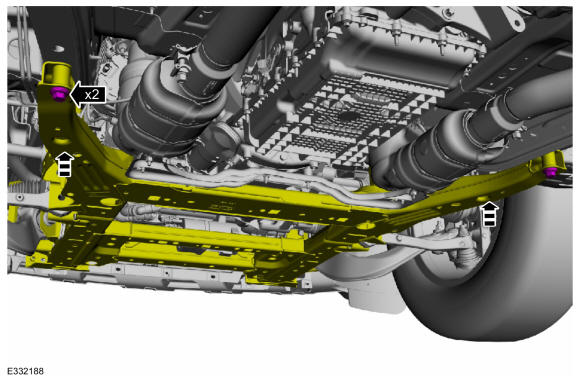

Raise the rear of the front subframe and install the bolts.
Torque: 52 lb.ft (70 Nm)

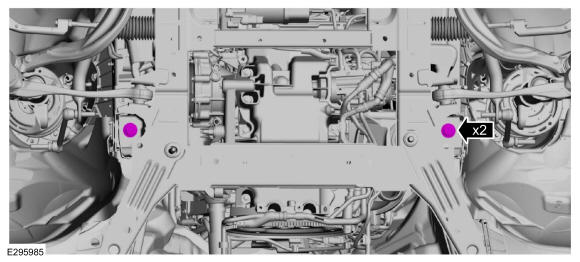

- Install the middle subframe bolts.
Torque: 195 lb.ft (265 Nm)

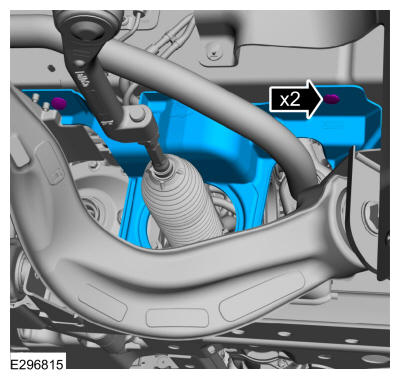

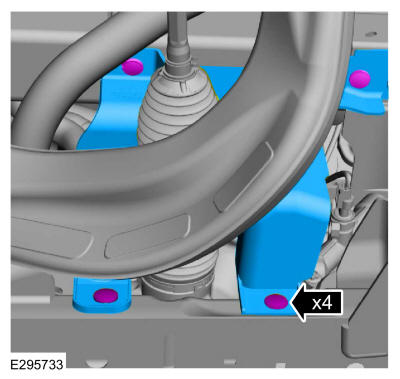

- Install the steering shield and the pin-type retainers at the LH subframe.

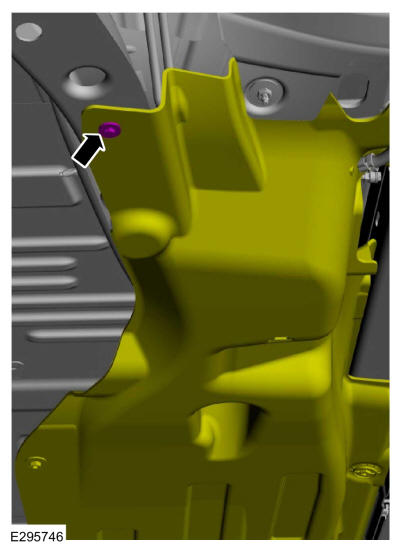

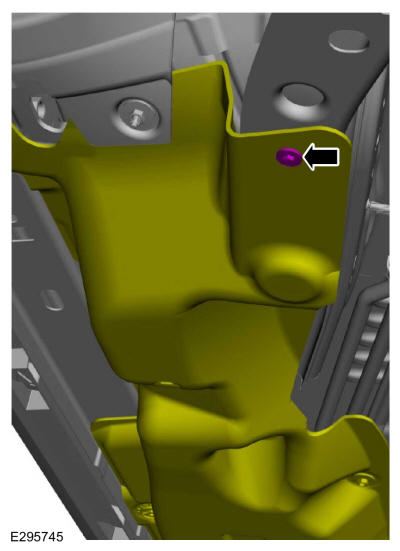

- Position the LH underbody shield back and install the bolt.
Torque: 22 lb.in (2.5 Nm)
- Position the RH underbody shield back and install the bolt.
Torque: 22 lb.in (2.5 Nm)

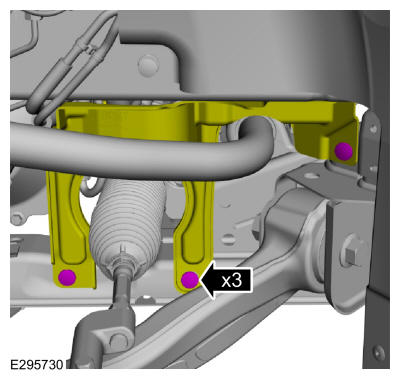

- Install the steering shield and pin-type retainers at the RH subframe.
- Install the steering shield pin-type retainers at the RH subframe.

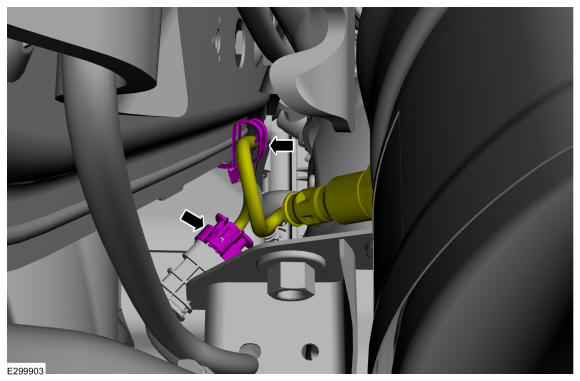

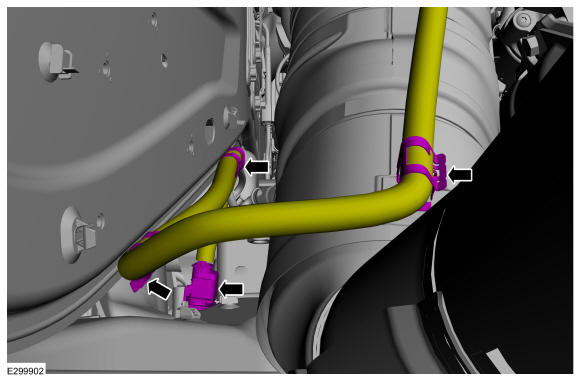

- Connect the HO2S electrical connector.
- Connect the HO2S electrical connector.
- On both sides.
- Install the wheel arch liner to front subframe retainers.
- Install the LH side exhaust flexible pipe. Refer to: Exhaust Flexible Pipe .
- Check the exhaust system for leaks.
