Exhaust Gas Recirculation (EGR) Valve: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.
  1. Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
  2. Remove the differential pressure feedback EGR sensor. Refer to: Differential Pressure Feedback Exhaust Gas Recirculation (EGR) Sensor .

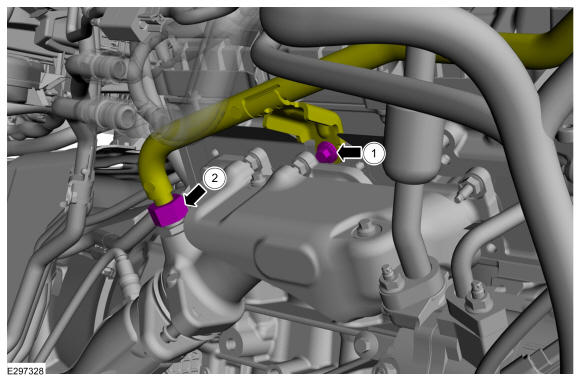

    1. Remove the fastener.
    2. Remove the EGR inlet tube nut.
    GFD513612Courtesy of FORD MOTOR COMPANY

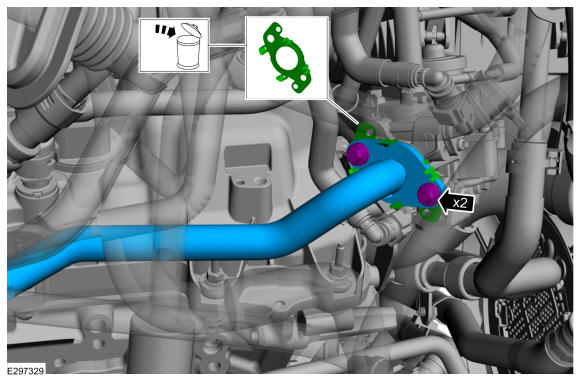

    • Remove the fasteners.

    • Remove the EGR valve inlet tube.

    • Remove the gasket and discard.

    GFD513613Courtesy of FORD MOTOR COMPANY

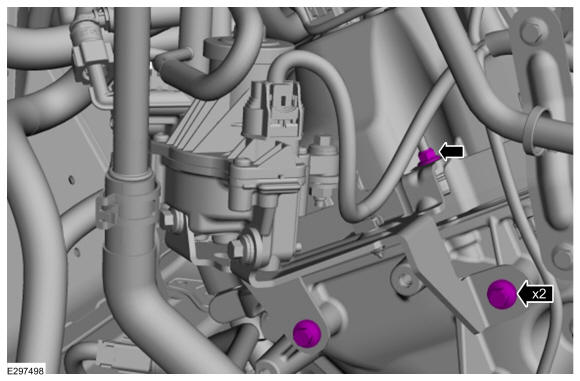

  5. Loosen the EGR valve bracket fasteners.
    GFD513614Courtesy of FORD MOTOR COMPANY

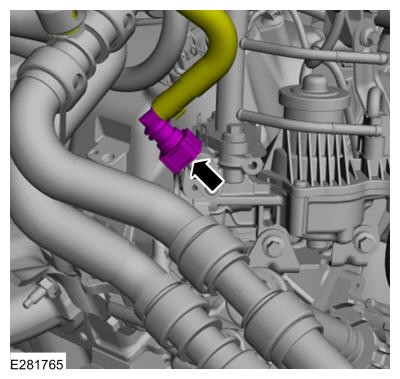

  6. Disconnect the upper cooling hose from the EGR valve assembly. Refer to: Quick Release Coupling .
    GFD513615Courtesy of FORD MOTOR COMPANY

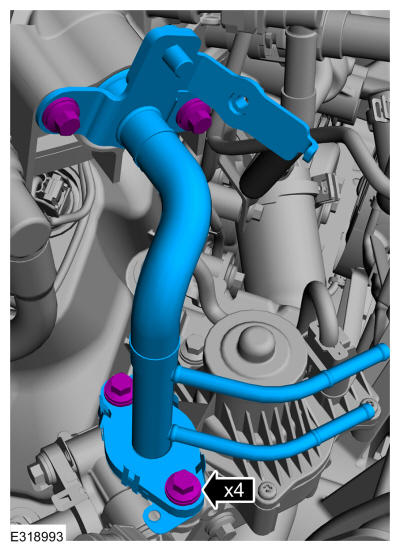

  7. Remove the fasteners and EGR valve outlet tube.
    GFD513616Courtesy of FORD MOTOR COMPANY

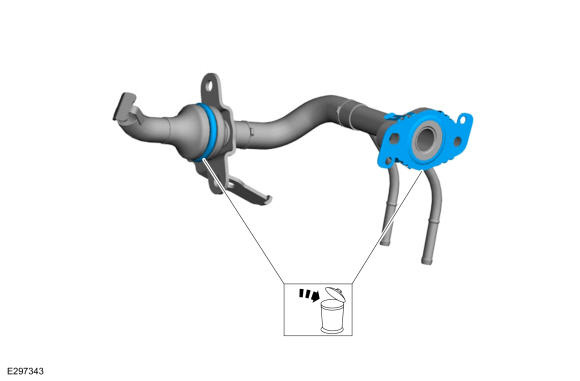

    • Remove and discard the EGR tube o-ring seal and gasket.
    GFD513617Courtesy of FORD MOTOR COMPANY

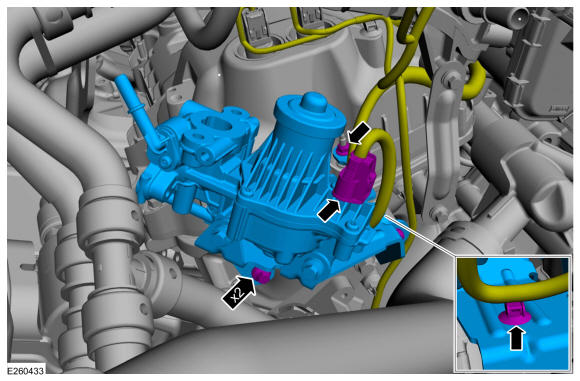

    • Disconnect the EGR valve electrical connector and detach the retainer on the EGR valve bracket.

    • Remove the EGR valve bracket fasteners.

    GFD513618Courtesy of FORD MOTOR COMPANY

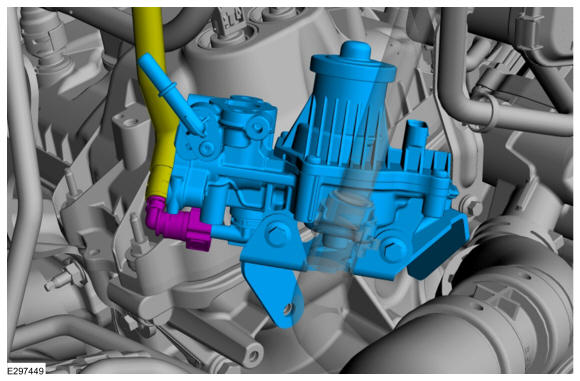

  10. Lift the EGR valve to gain access to disconnect the lower coolant hose on EGR valve assembly then remove EGR valve. Refer to: Quick Release Coupling .
    GFD513619Courtesy of FORD MOTOR COMPANY

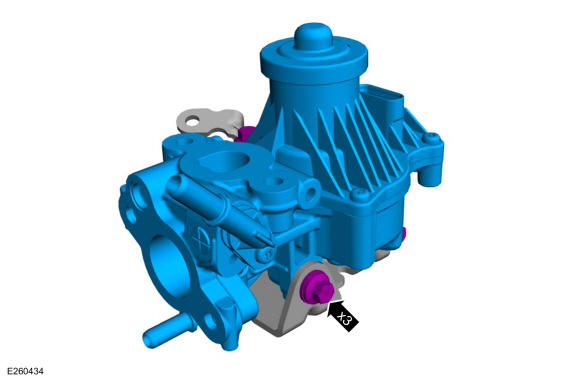

  11. Remove the EGR valve mounting fasteners and remove the EGR valve.
GFD513620Courtesy of FORD MOTOR COMPANY
