Exhaust Gas Recirculation (EGR) Outlet Tube: Removal

WARNING: This page is about a different variant/trim than selected.

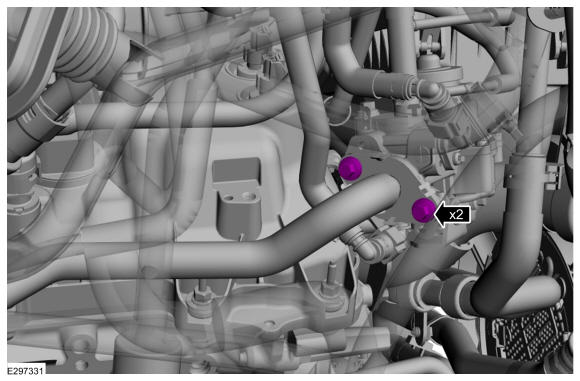

  1. Loosen the EGR inlet tube fasteners.
    GFD513599Courtesy of FORD MOTOR COMPANY

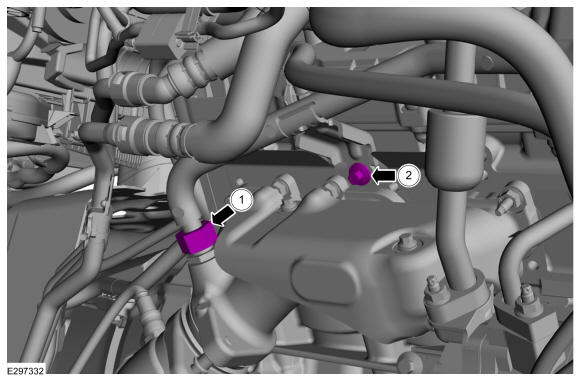

    1. Loosen the EGR inlet tube nut.
    2. Loosen the EGR inlet tube bracket fastener.
    GFD513600Courtesy of FORD MOTOR COMPANY

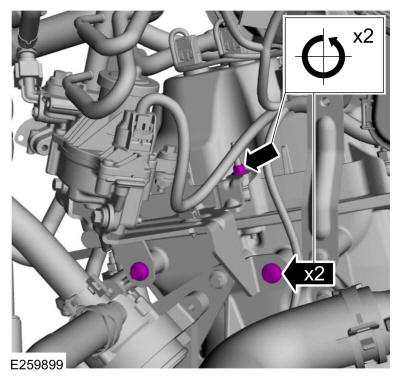

  3. Loosen the EGR valve bracket fasteners.
    GFD513601Courtesy of FORD MOTOR COMPANY

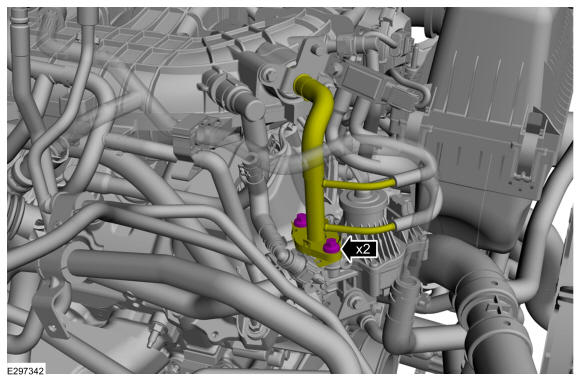

    • Remove the EGR valve outlet tube fasteners.
    GFD513602Courtesy of FORD MOTOR COMPANY

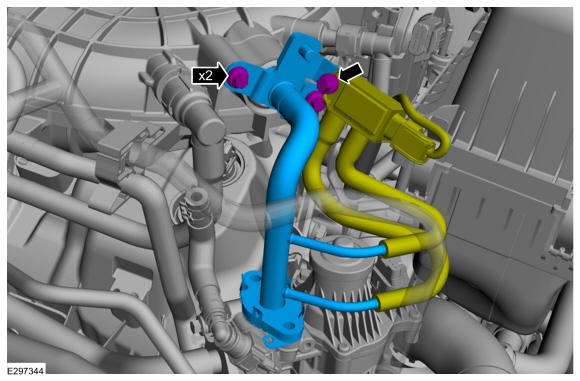

    • Position aside the differential pressure feedback EGR sensor hose.

    • Remove the fastener and position aside the differential pressure feedback EGR sensor.

    • Remove the fasteners and EGR valve outlet tube.

    GFD513603Courtesy of FORD MOTOR COMPANY

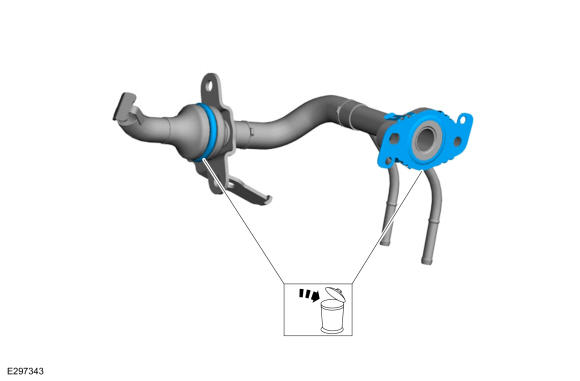

    • Remove and discard the EGR tube o-ring seal and gasket.
GFD513604Courtesy of FORD MOTOR COMPANY
