Exhaust Gas Recirculation (EGR) Outlet Tube: Installation

WARNING: This page is about a different variant/trim than selected.

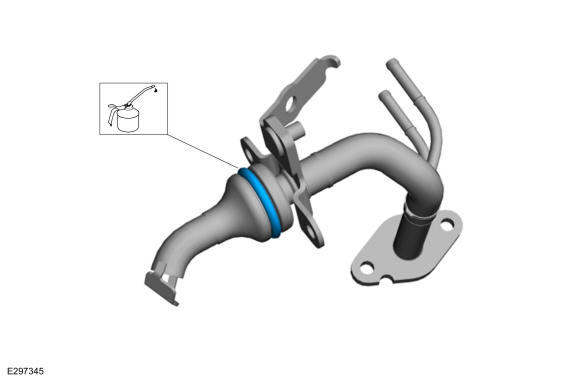

- Install the new o-ring.
- Lubricate the o-ring seal with clean engine oil.
Courtesy of FORD MOTOR COMPANY

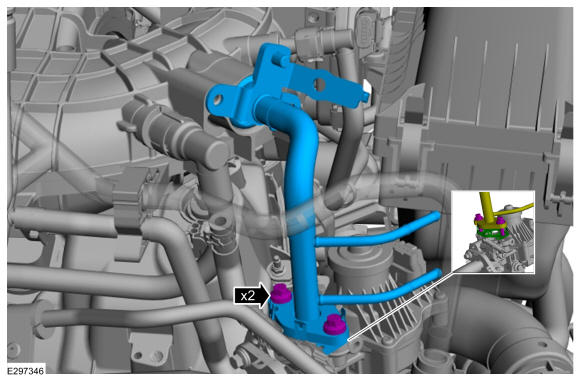

- Install the new gasket.
- Install the EGR valve outlet tube.
- Install the fasteners and hand tighten at this stage.
Courtesy of FORD MOTOR COMPANY

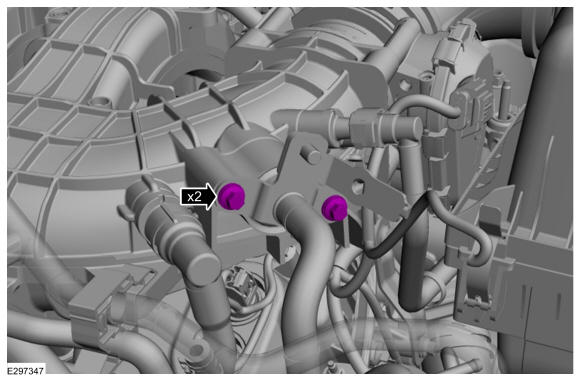

- Install the fasteners and hand tighten at this stage.
Courtesy of FORD MOTOR COMPANY

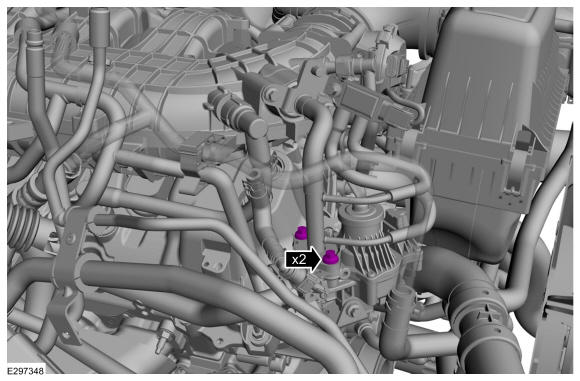

Tighten the EGR outlet tube fasteners.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Tighten the EGR outlet tube fasteners.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

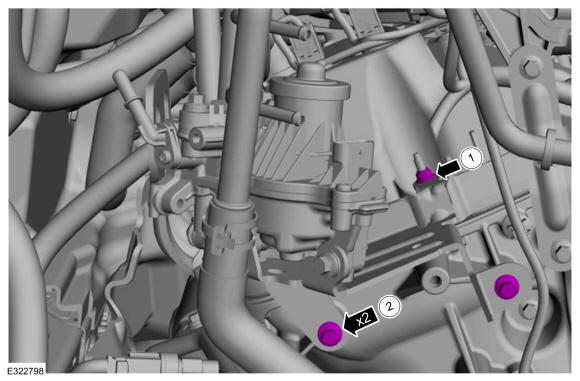

1. Tighten the EGR valve bracket fasteners.
  Torque: 71 lb.in (8 Nm)
2. Tighten the EGR valve bracket fastener.
  Torque: 89 lb.in (10 Nm)
Courtesy of FORD MOTOR COMPANY

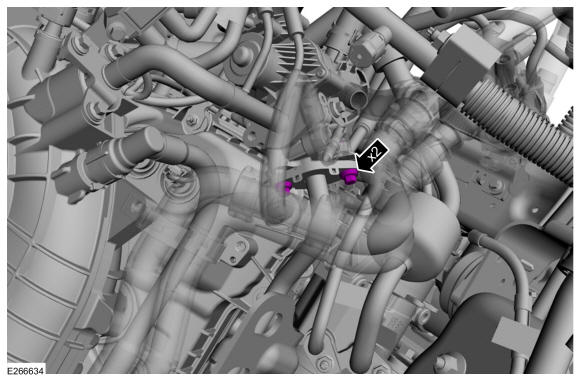

Tighten the EGR inlet tube fasteners.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
- Tighten the EGR inlet tube nut.
  Torque: 30 lb.ft (40 Nm)
- Tighten the EGR inlet tube bracket fastener.
  Torque : Stage 1: 177 lb.in (20 Nm) Stage 2: 45 deg.
Courtesy of FORD MOTOR COMPANY

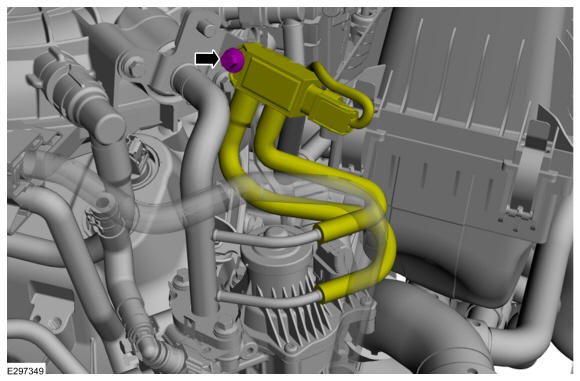

- Install differential pressure feedback EGR sensor and the bolt.
  Torque: 89 lb.in (10 Nm)
- Position back the differential pressure feedback EGR sensor hoses.

Courtesy of FORD MOTOR COMPANY
