Exhaust Gas Recirculation (EGR) Inlet Tube: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
-

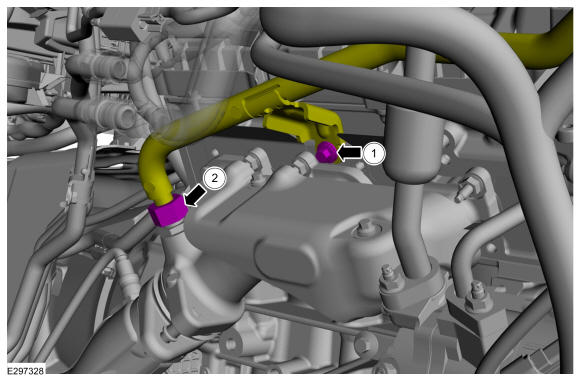

- Remove the fastener.
- Remove the EGR inlet tube nut.
 Courtesy of FORD MOTOR COMPANY
|
-

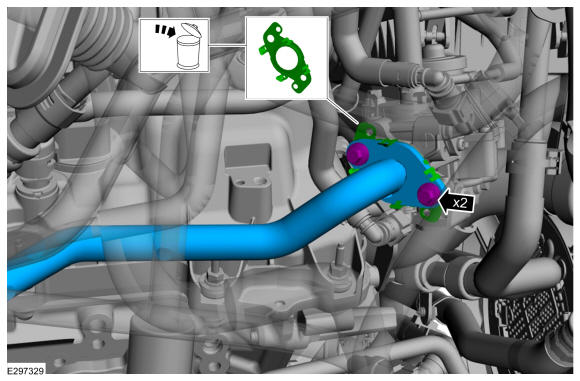

- Remove the EGR valve inlet tube.
- Remove the gasket and discard.
 Courtesy of FORD MOTOR COMPANY
|
