Exhaust Gas Recirculation (EGR) Inlet Tube: Installation

WARNING: This page is about a different variant/trim than selected.

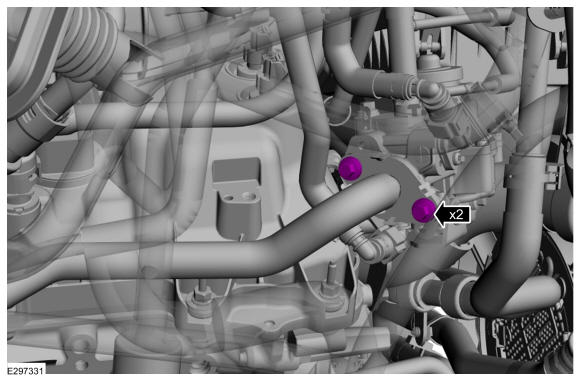

- Install the new gasket.
- Install the EGR valve inlet tube.
- Install the fasteners and hand tighten at this stage.
Courtesy of FORD MOTOR COMPANY

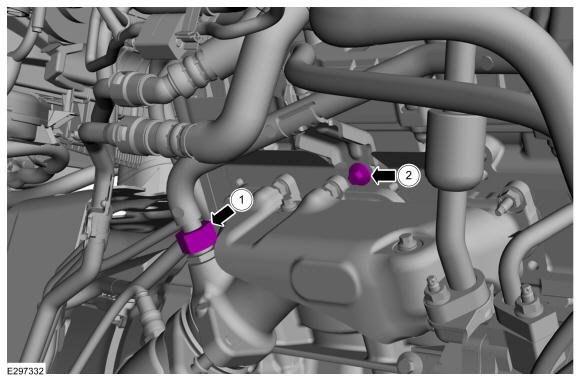

1. Install the EGR inlet tube nut and hand tighten at this stage.
2. Install the fastener and hand tighten at this stage.
Courtesy of FORD MOTOR COMPANY

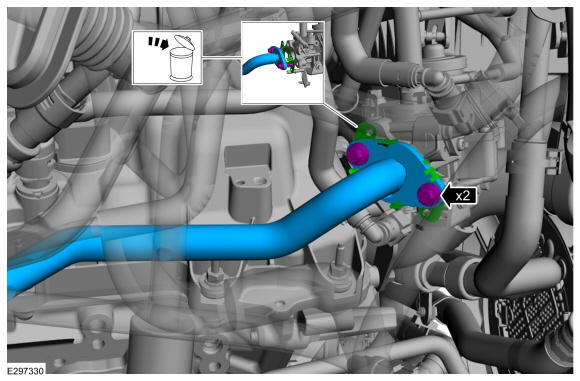

Tighten the EGR inlet tube fasteners.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

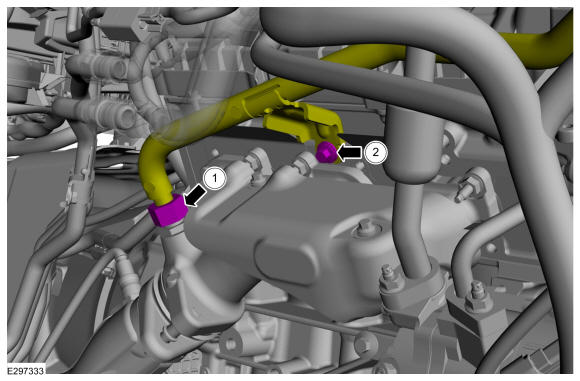

1. Tighten the EGR inlet tube nut.
  Torque: 30 lb.ft (40 Nm)
2. Tighten the EGR inlet tube bracket fastener.
  Torque : Stage 1: 177 lb.in (20 Nm) Stage 2: 45 deg.

Courtesy of FORD MOTOR COMPANY
