EGR System

WARNING: This page is about a different variant/trim than selected.

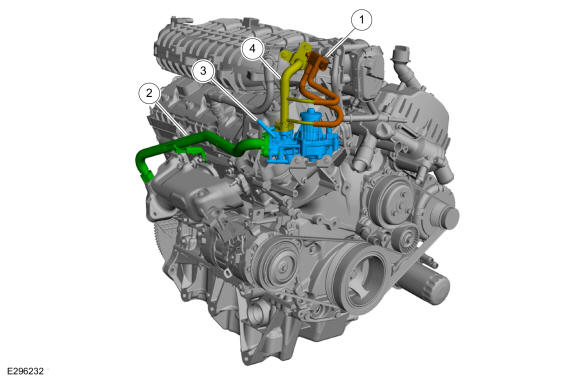

GFD513591Courtesy of FORD MOTOR COMPANY
Item Description
1 EGR Differential pressure feedback sensor.
2 EGR inlet tube.
3 EGR valve.
4 EGR outlet tube.
