Transmission Fluid Cooler: Removal
WARNING: This page is about a different variant/trim than selected.
- With the vehicle in N, position it on a hoist. Refer to: Jacking and Lifting - Overview .
-
NOTE: Be prepared to collect escaping fluid.

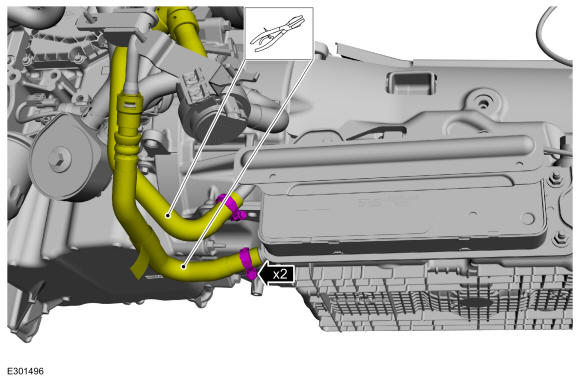

Loosen the clamps and disconnect the coolant hoses from the transmission fluid cooler. Use the General Equipment: Locking Pliers
-
NOTE: If equipped.
Remove the bolt.
-
NOTE: Be prepared to collect escaping fluid.
Remove the bolt, the nuts and the transmission fluid cooler.
