Transmission Fluid Cooler: Installation
WARNING: This page is about a different variant/trim than selected.

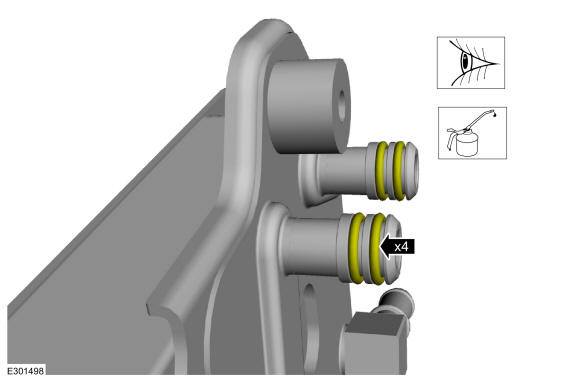

- Inspect the O-ring seals and install new O-ring seals if necessary. Lubricate the O-ring seals before installing the transmission fluid cooler.
Material: Motorcraft® MERCON® ULV Automatic Transmission Fluid / XT-12-QULV (WSS-M2C949-A,) (MERCON® ULV)
-
NOTE: Make sure the oil cooler is completely installed against the transmission before tightening, or damage to the cooler could result.

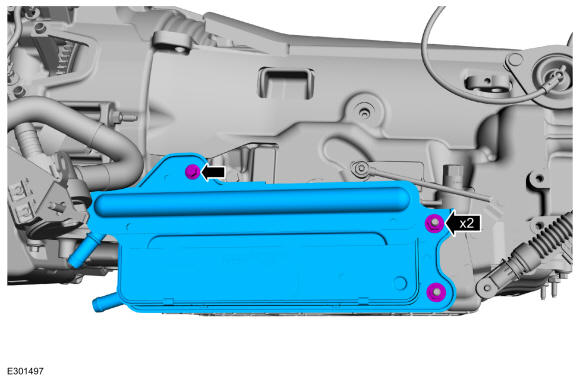

Install the transmission fluid cooler and loosely install the bolt and the nuts by hand.
-
NOTE: Make sure the oil cooler is completely installed against the transmission before tightening, or damage to the cooler could result.

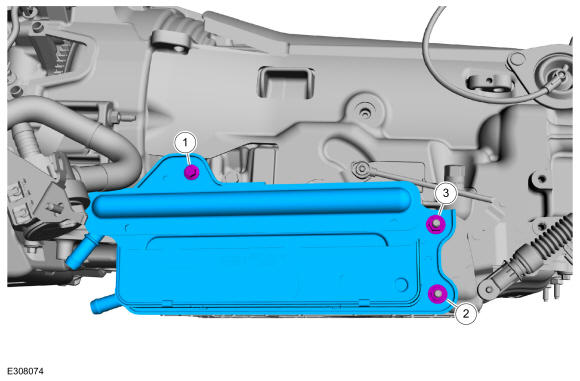

Tighten the bolt and nuts in the sequence shown.
Torque: 18 lb.ft (25 Nm)
-
NOTE: If equipped.
Install the bolt.
Torque: 18 lb.ft (25 Nm)

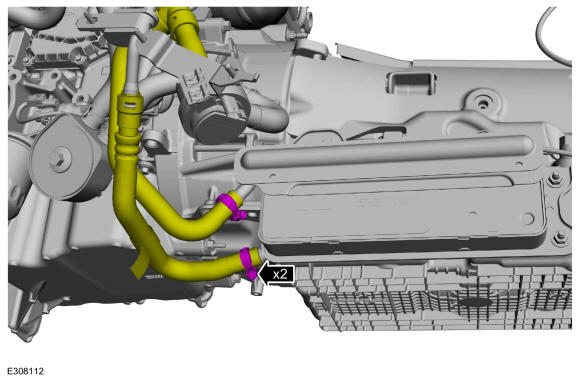

- Connect the coolant hoses to the transmission fluid cooler.
- Check the engine coolant level and adjust as necessary. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
- Check the transmission fluid level and adjust as necessary. Refer to: Transmission Fluid Level Check .
