Exhaust Gas Recirculation (EGR) Valve: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: Do not pull the engine appearance cover forward or sideways to remove. Failure to press straight upward on the underside of the cover at the attachment points may result in damage to the cover or engine components.
- Remove the engine appearance cover nuts.
- Place your hand under the engine appearance cover at each grommet location and push straight up to release each grommet from the studs.
- After all of the grommets have been released from the studs, remove the appearance cover from the engine.
Courtesy of FORD MOTOR COMPANY
Remove the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .
Remove the cowl panel. Refer to: Cowl Panel .

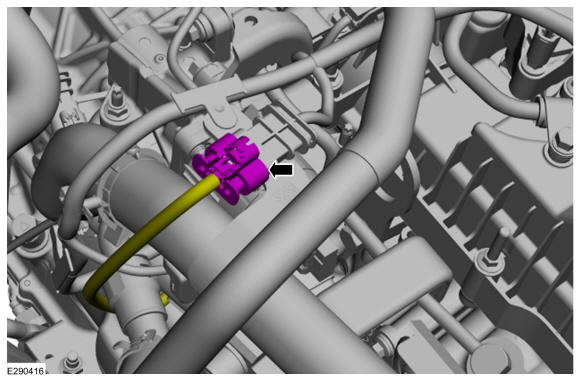

Disconnect the HO2S electrical connector.

Courtesy of FORD MOTOR COMPANY

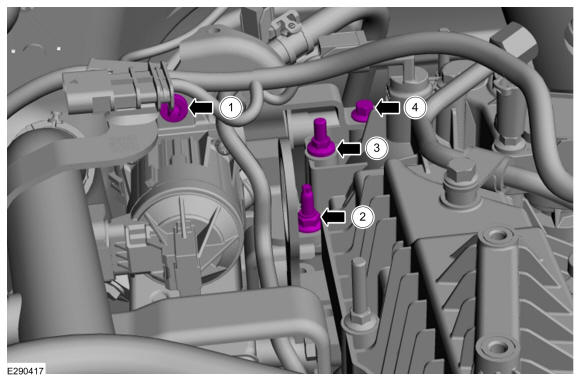

1. Remove the fastener.
  Torque: 97 lb.in (11 Nm)
2. Remove the fastener.
  Torque: 97 lb.in (11 Nm)
3. Remove the fastener.
  Torque: 97 lb.in (11 Nm)
4. Remove the fastener.
  Torque: 97 lb.in (11 Nm)
Courtesy of FORD MOTOR COMPANY

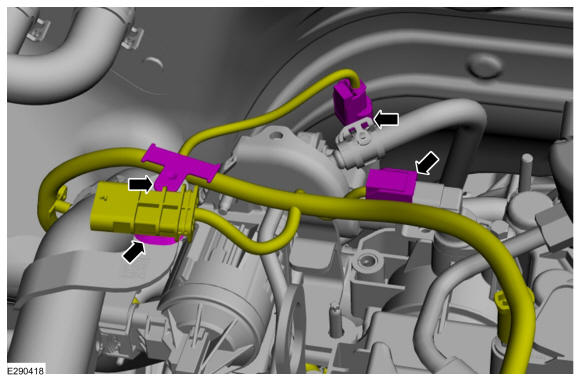

- Disconnect the electrical connectors.
- Detach the retainer and clip.
Courtesy of FORD MOTOR COMPANY

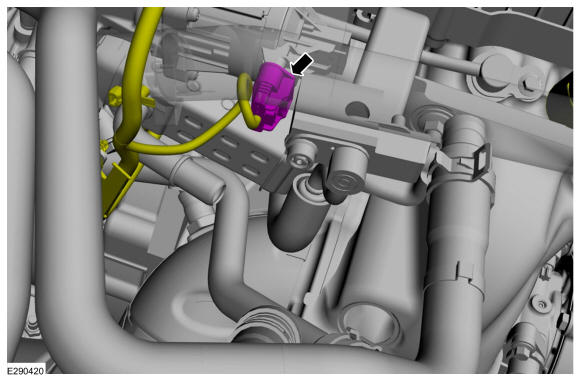

Disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY

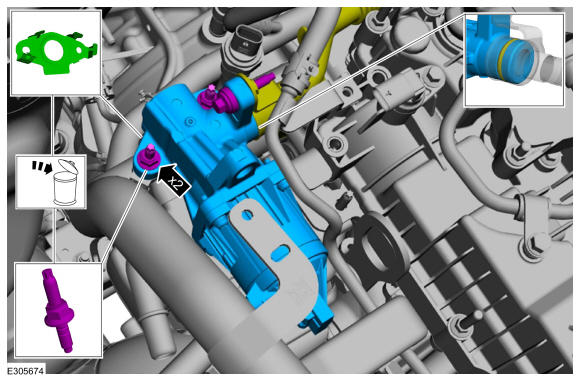

- Remove and discard the EGR valve gasket.
- Remove and discard the EGR valve studs.
- Remove the bolt.

Courtesy of FORD MOTOR COMPANY
